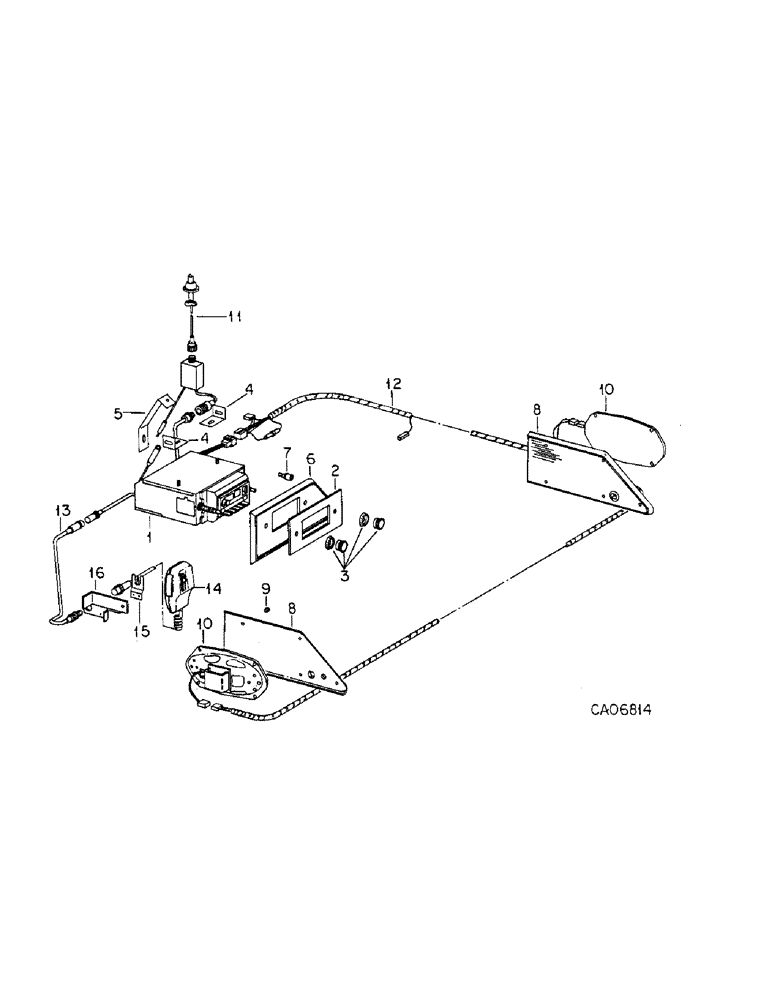

Запчасти Case IH HYDRO 186 (08-23) - ELECTRICAL, AM-FM-CB RADIO (06) - ELECTRICAL

142947C93

RADIO

PART ACCESSORY, AM-FM-CB mpx, consists of ref nos. 1, 3, 4, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 & 16

1шт.

1

143328C1

RADIO

AM-FM-CB mpx, replaces 118438C1 by also ordering microphone assy 1252436C91

1шт.

142973C1

NUT

M9 x .75 large shaft

2шт.

142920C1

WASHER

shaft

2шт.

142974C1

NUT

M9 x .75 small shaft

2шт.

142945C1

STUD, adapter

1шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 ext-int tooth lock

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

2

(Not used this application)

1шт.

3

117993C1

PACKAGE

KIT, radio control knobs

1шт.

4

117818C1

ANGLE

radio mtg

2шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

5

117120C1

ARM

BRACKET, radio mtg

1шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 ext-int tooth lock

1шт.

24198R1

SELF-TAP SCREW,Hex Hd, 1/4" x 5/8"

SCREW, 1/4-14 x 5/8 PHC h-hd tap

1шт.

6

118376C1

PANEL

radio trim, used w/radio 118438C1

1шт.

6

1252433C1

PANEL, radio trim, used w/radio 143328C1

1шт.

1276052C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, no. 8-18 x 1-3/4 polyseal O/HDCR tap

5шт.

7

117995C1

PACKAGE

KIT, trim panel fastener, consists of 5 fasteners

3шт.

8

111402C2

PANEL

speaker trim LH

1шт.

8

111403C1

PANEL

speaker trim RH

1шт.

1276052C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, no. 8-18 x 1-3/4 polyseal O/HDCR tap, 5 per panel

1шт.

9

117730C1

PLUG

plastic

1шт.

10

70727C3

SPEAKER

4 x 8 8 OHM, used w/radio 118438C1

2шт.

10

142956C1

SPEAKER

4 x 8 4 OHM, used w/radio 143328C1

2шт.

132718C1

FASTENER

TGL type plastic

8шт.

11

118439C91

ANTENNA

ASSY, combination AM-FM-CB, consists of

1шт.

142978C1

UNION

COUPLER ASSY

1шт.

142979C1

BASE

ASSY

1шт.

142982C1

VALVE SPRING

SPRING, base

1шт.

142980C1

SCREW,M6 x 0.86"

clamp

1шт.

142981C1

NUT

wing

1шт.

142113C1

SCREW, hex-soc set

1шт.

142983C1

BAR

MAST

1шт.

142969C1

NUT

mast jam

1шт.

142984C1

SCREW,M3 x 3.70"

trimming, also purchase locally 2 inches of 1-3/4 inch duct or plastic tape for use in installing antenna

1шт.

12

118440C2

HARNESS

ASSY, radio & speaker, used w/radio 118438C1

1шт.

12

143177C1

HARNESS

ASSY, radio & speaker, used w/radio 143328C1

1шт.

126049

FUSE,5 Amp, Type 1AG

AGA 5 amp

1шт.

13

142946C1

CABLE PULLING GRIP

CABLE ASSY, CB microphone extension

1шт.

13

142995C1

CABLE

ASSY, CB microphone extension, use w/parts accessory 142947C93

1шт.

14

118597C91

RADIO

MICROPHONE ASSY, CB radio, used w/radio 118438C1, order microphone assy, 1252436C91

1шт.

14

1252436C91

TRANSMITTER

MICROPHONE ASSY, CB radio, used w/radio 143328C1

1шт.

15

118598C1

CLIP

microphone mtg

1шт.

142937C1

SCREW,Phil Pan Hd, #8 - 18 x 1/2"

no. 8-18 x 1/2 CR tap

2шт.

16

118595C1

BRACKET

CB microphone mtg

1шт.

444272

SCREW, #8 x 1/4 znp P/HDCR L/W mach

2шт.

159592

SCREW,Cross Pan Hd, #8 - 32 x 1/2"

no. 8 x 1/2 znp P/HDCR mach

2шт.

445106

SPARE PART

NUT, 8-32 PHC style I

2шт.
