Запчасти Case IH HYDRO 186 (08-21) - ELECTRICAL, RADIO AND TAPE PLAYER, TRACTORS WITH CAB (06) - ELECTRICAL

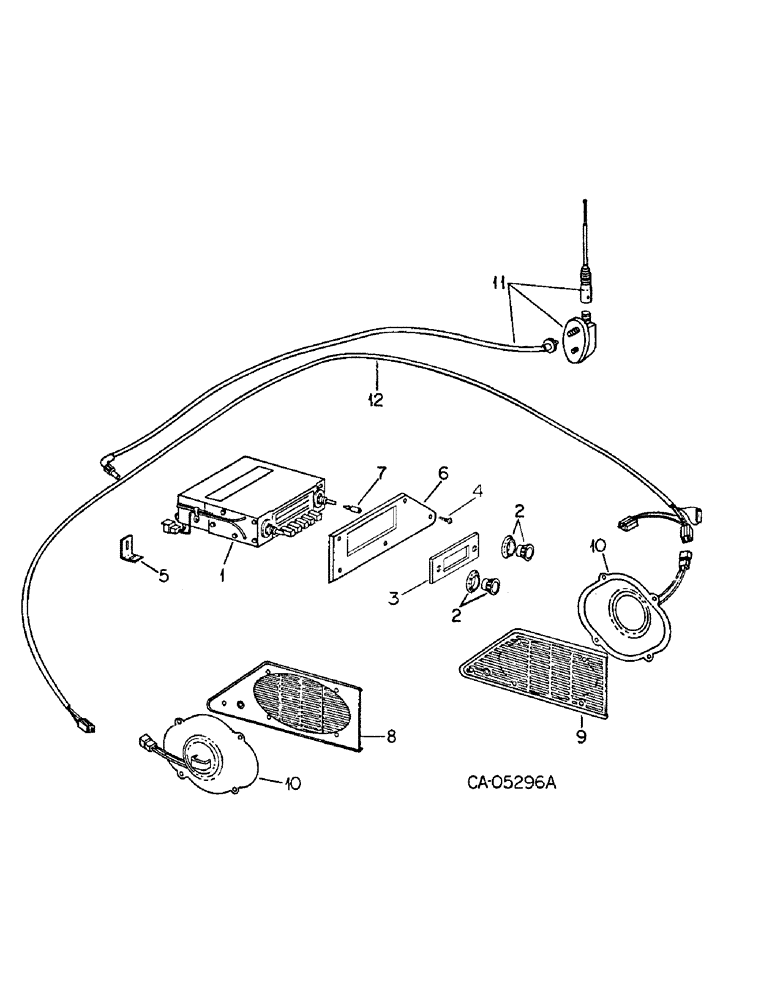

Схема запчастей Case IH HYDRO 186 - (08-21) - ELECTRICAL, RADIO AND TAPE PLAYER, TRACTORS WITH CAB (06) - ELECTRICAL
7
10
3
8
10
4
12
2
2
5
1
9
6
11

Артикул

Название

Примечание

Количество

111640C92

RADIO

PARTS ACCESSORY, radio AM w/fader control, consists of ref nos. 1 through 13 and instructions

1шт.

111641C92

RADIO

PARTS ACCESSORY, radio AM/FM monaural w/fader control, consists of ref nos 1 through 13 and instructions

1шт.

111642C92

RADIO

PARTS ACCESSORY, radio AM/FM multiplex w/8 track tape player, consists of ref nos 1 through 13 and instructions

1шт.

70566C91

JACK

PARTS ACCESSORY, headphone jack connecting cable

1шт.

1

111643C1

RADIO

AM w/fader control, replaces w/111644C1

1шт.

1

111645C1

RADIO

AM/FM monaural w/fader control, replaces w/111646C1

1шт.

1

111647C1

RADIO

AM/FM w/8 track tape player

1шт.

142919C1

NUT

large shaft

2шт.

142920C1

WASHER

shaft

2шт.

142921C1

NUT

small shaft

2шт.

2

117993C1

PACKAGE

KIT, radio control knobs

1шт.

3

117992C1

PLATE

trim

1шт.

4

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, trim panel mounting

15шт.

5

117818C1

ANGLE

radio mounting, for use w/radio parts accessories

2шт.

5

143124C1

ANGLE

radio mounting, for deluxe cab

2шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

6

118376C1

PANEL

radio trim, replaces 111401C1

1шт.

7

117995C1

PACKAGE

KIT, trim panel fastener, consists of 5 fasteners

3шт.

8

111402C2

PANEL

speaker trim LH

1шт.

117730C1

PLUG

plastic

1шт.

142940C1

PLUG

plastic .625 dia

1шт.

1276052C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, no. 8-18 x 1-3/4 polyseal o-/hdcr tap

5шт.

9

111403C1

PANEL

speaker trim RH

1шт.

1276052C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, no. 8-18 x 1-3/4 polyseal o/hdcr tap

5шт.

10

70727C3

SPEAKER

4 x 8 8 OHM (or)

2шт.

10

142956C1

SPEAKER

4 x 8 4 OHM

2шт.

11

111237C1

ANTENNA

ASSY

1шт.

169850C1

CLIP

1шт.

12

118440C2

HARNESS

ASSY, radio & speaker, replaces 111431C2, use w/speaker, 70727C3

1шт.

12

143177C1

HARNESS

ASSY, radio & speaker, use w/speaker, 142956C1

1шт.

445635

FUSE,3 Amp, Type 1AG

AGA 3 amp

1шт.

118154C91

ACCESSORIES

PARTS ACCESSORY, headphone connecting jack, tractor w/ROPS frame, consists of (1) cable assy 70737C1, (1) harness assy (NSS), (1) washer 118106C1, (1) instructions (NSS)

1шт.

143186C92

RADIO

PARTS ACCESSORY, radio completing, replaces 118133C93 by also ordering harness assy, 118440C2, tractor w/ROPS frame, consists of

1шт.

187626C2

ANGLE

radio mounting

1шт.

118070C1

CABLE

ASSY, ROPS canopy power

1шт.

187625C1

COVER ASSY

COVER, radio dial

1шт.

1252467C1

COVER

radio dial

1шт.

365919R1

GROMMET,3/8" ID x 5/8" Groove Dia

radio antenna cable

1шт.

118258C1

PANEL

speaker grille

2шт.

28058R1

SCREW

8 NF x 3/4 PHC O/H C/R mach

8шт.

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

w/lockwashser

8шт.

118441C1

LARGE PLATE

PLATE, radio trim

1шт.

118120C1

SUPPORT

radio mounting, bracket

1шт.

24198R1

SELF-TAP SCREW,Hex Hd, 1/4" x 5/8"

SCREW, 1/4-14 x 5/8 PHC h/hd tap

1шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 ext-int tooth lock

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

365501R1

TERMINAL CONNECTOR

TERMINAL, L spade, instructions (NSS)

1шт.

146558C91

RADIO

PARTS ACCESSORY, AM/FM push button multiplex stereo, consists of ref nos 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 plus

1шт.

146560C1

RADIO

AM/FM push-button stereo

1шт.

142919C1

NUT

large shaft

2шт.

142920C1

WASHER

shaft

2шт.

142921C1

NUT

small shaft

2шт.

Выбрано товаров: 54
