Запчасти Case IH HYDRO 186 (08-07) - ELECTRICAL, ALTERNATOR-GENERATOR, NEIHOFF, WITH INTEGRAL SOLID STATE VOLTAGE, S/N 12000 AND ABOVE (06) - ELECTRICAL

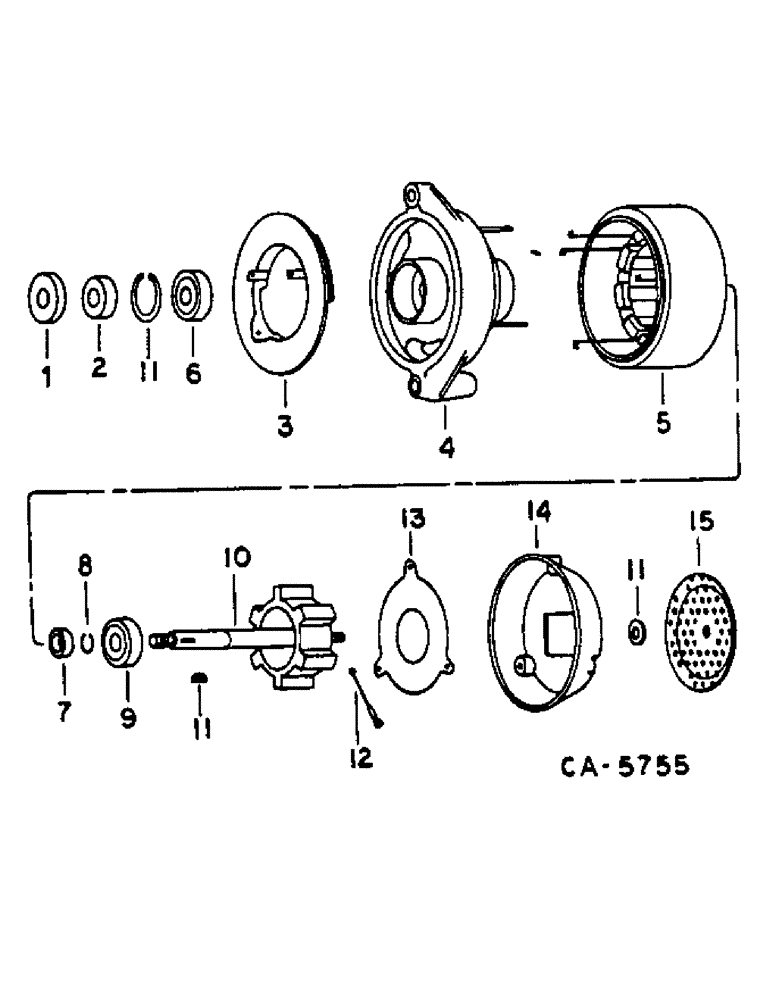

Схема запчастей Case IH HYDRO 186 - (08-07) - ELECTRICAL, ALTERNATOR-GENERATOR, NEIHOFF, WITH INTEGRAL SOLID STATE VOLTAGE, S/N 12000 AND ABOVE (06) - ELECTRICAL
9
14
12
3
6
8
4
15
7
1
11
11
10
2
5
13
11

Артикул

Название

Примечание

Количество

77895C91

ALTERNATOR

PARTS ACCESSORY, HV duty alternator, 100 ampere, consists of ref nos. 1 thru 14 plus

1шт.

146472C91

GENERATOR

ALTERNATOR-GENERATOR, Niefoff, metric, 100 ampere

1шт.

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 100 AMP Alternator

1шт.

104024A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 100 AMP Alternator

1шт.

131042C1

PULLEY

PULLEY

1шт.

221425R1

FAN

FAN, instructions (NSS)

1шт.

146472C91

GENERATOR

ALTERNATOR-GENERATOR ASSY, 100 ampere, metric, consists of ref nos 1 thru 14

1шт.

1

130991C1

CUP WASHER

WASHER, front spring and bearing cover

1шт.

2

130992C1

SPACER

SPACER, front

1шт.

3

77791C1

AMPLIFIER

AMPLIFIER ASSY, rectifier and heat sink

1шт.

4

77792C2

FRAME

FRAME ASSY, field winding and end

1шт.

5

77793C2

SHELL

SHELL AND STATOR ASSY

1шт.

6

131097C91

BALL BEARING,0.6693" ID x 1.8504" OD x 0.5512"

BEARING, front

1шт.

7

130998C1

CUP WASHER

WASHER, retainer cup

1шт.

8

130993C1

RING

RING, retainer

1шт.

9

131098C91

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING, rear

1шт.

10

130999C1

ROTOR

ROTOR ASSY

1шт.

11

77795C2

PACKAGE

PACKAGE, miscellaneous hardware service

1шт.

12

131003C1

CABLE ASSY.

CABLE ASSY, ground

1шт.

13

77794C1

REGULATOR

REGULATOR ASSY, voltage

1шт.

14

131006C1

COVER

COVER, voltage regulator

1шт.

15

(Not used)

1шт.

146553C1

CABLE ASSY.

CABLE ASSY, alternator

1шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP STRAP, cable lock

4шт.

Выбрано товаров: 24
