Запчасти Case IH HYDRO 186 (08-06) - ELECTRICAL, ALTERNATOR-GENERATOR, MOTOROLA, SERIAL NOS. 10141 TO 10193 (06) - ELECTRICAL

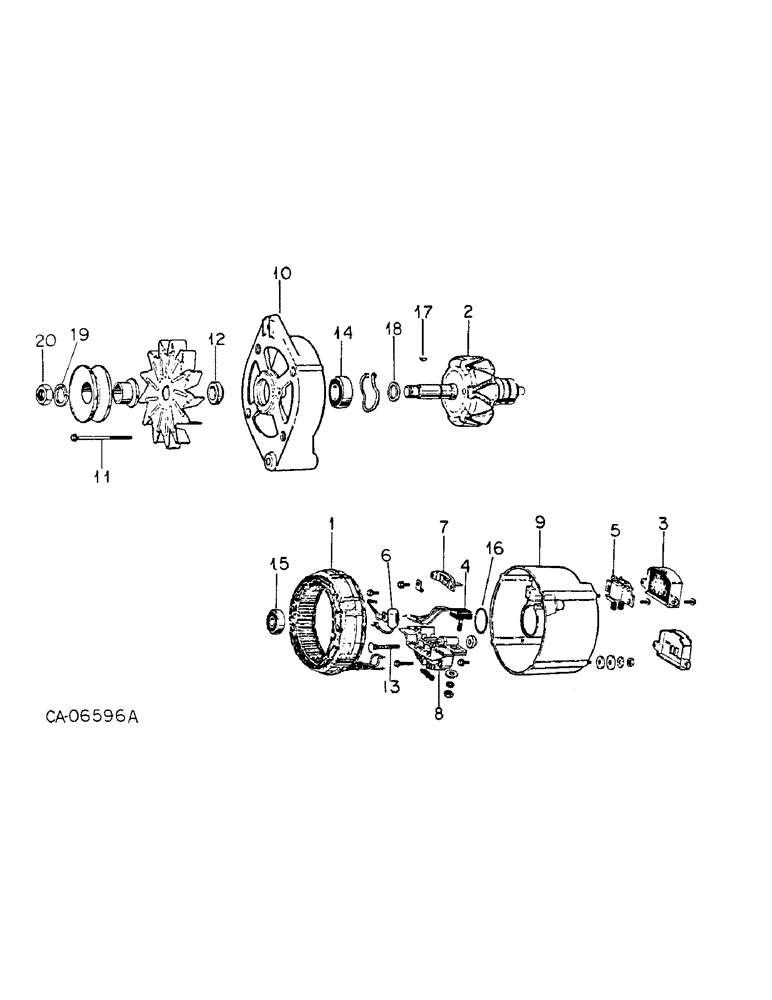

Схема запчастей Case IH HYDRO 186 - (08-06) - ELECTRICAL, ALTERNATOR-GENERATOR, MOTOROLA, SERIAL NOS. 10141 TO 10193 (06) - ELECTRICAL
18
3
15
19
10
11
6
2
4
16
9
17
1
13
14
7
8
5
12
20

Артикул

Название

Примечание

Количество

107560C91

ALTERNATOR

ALTERNATOR-GENERATOR, 61 ampere, order 1102921

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 63 AMP Alternator

1шт.

103799A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 63 AMPAlternator

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 61 AMP Alternator

1шт.

103802A1R

REMAN-ALTERNATOR

Reman For New P/N 107560C91

1шт.

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

103804A1GV

ALTERNATOR

Value

1шт.

103804A1R

REMAN-ALTERNATOR

Reman For New P/N A47625

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

146472C91

GENERATOR

ALTERNATOR-GENERATOR, Niefoff, metric, 100 ampere

1шт.

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 100 AMP Alternator

1шт.

104024A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 100 AMP Alternator

1шт.

1

497688C1

STATOR

STATOR ASSY

1шт.

2

497686C1

ROTOR

ROTOR ASSY

1шт.

3

496686C1

REGULATOR

REGULATOR, voltage

1шт.

4

497689C1

RECTIFIER

DIODE, trio

1шт.

5

497691C1

BRUSH, COMMUTATOR

BRUSH BRUSH HOLDER AND BRUSH ASSY

1шт.

6

497692C1

CAPACITOR

CAPACITOR

1шт.

7

497693C1

TERMINAL CONNECTOR

TERMINAL

1шт.

8

497690C1

RECTIFIER

BRIDGE, rectifier

1шт.

9

76670C1

HOUSING

HOUSING, rear

1шт.

10

76671C1

HOUSING

HOUSING, front

1шт.

11

76672C1

BOLT

BOLT, front and rear housing thru

1шт.

12

76673C1

SPACER

SPACER, fan outer

1шт.

13

STUD, battery output, not serviced separately, order terminal bolt package

1шт.

14

76675C1

BEARING, front

1шт.

15

76676C1

BEARING, rear

1шт.

16

77797C1

RETAINER

RETAINER, bearing-rear

1шт.

17

77863C1

SPACER

SPACER, rotor assembly

1шт.

18

382550C1

RETAINER

RETAINER, bearing-front

1шт.

19

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

25148R1

NUT

NUT, 5/8-NF CAD type 5

1шт.

77796C1

PACKAGE

PACKAGE, terminal bolt, consists of ref. 13 plus, insulator (NSS), (2) insulator washer (NSS), washer (NSS), nut (NSS)

1шт.

Выбрано товаров: 35
