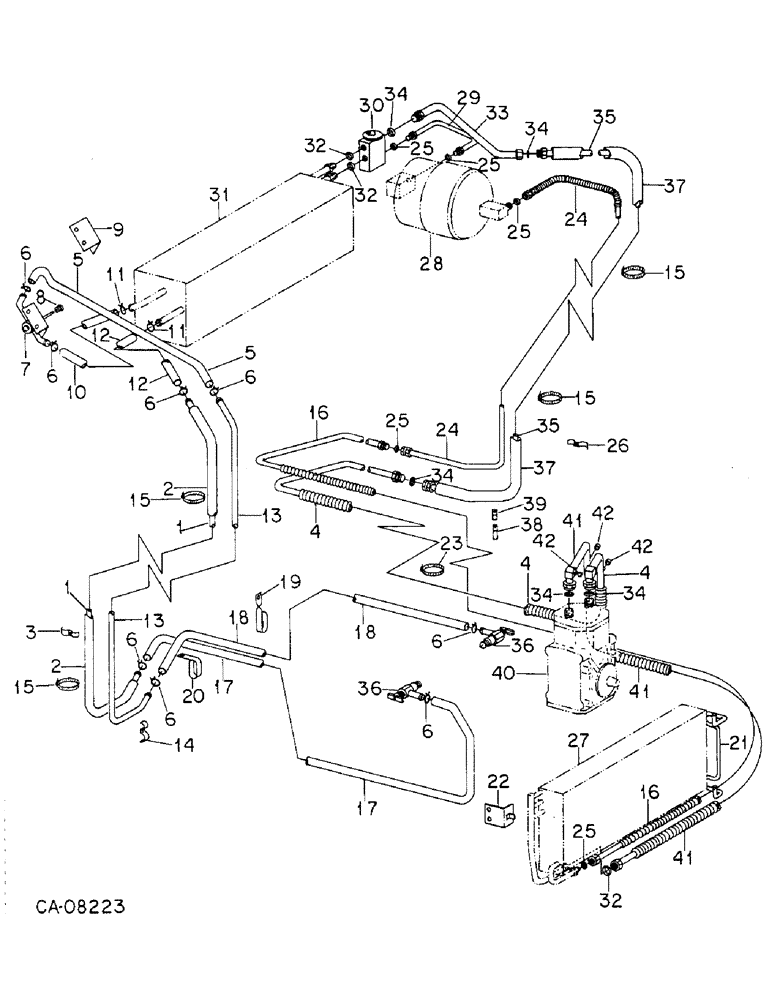

Запчасти Case IH HYDRO 186 (13-42) - SUPERSTRUCTURE, HEATER AND AIR CONDITIONER CONNECTIONS, CABS WITH SERIAL NO. 107807 AND ABOVE (05) - SUPERSTRUCTURE

1

143116C1

HEATER TUBE,0.625" OD, 2000 mm Length

TUBE, heater inlet

1шт.

2

143327C1

INSULATOR

INSULATION, heater inlet tube

1шт.

3

143410C1

CLIP

one hole double

1шт.

24392R1

HARDWARE,Cross Pan Hd, #10 x 1/2"

SCREW, #10-16 x 1/2 PHC P/HDCR tap

2шт.

118461C1

COVER

molded rubber tip

2шт.

4

1267661C1

HOSE

ASSY, chassis suction, service parts are

1шт.

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

9/16 x 11/16 class 5

1шт.

118188C1

CAP

1шт.

5

HOSE, valve outlet to outlet tube, use 23 in. of 5/8 ID heater hose from bulk roll marked 117724C1

1шт.

6

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, no. 10 type F hose

8шт.

7

111221C4

VALVE

heater control

1шт.

8

111282C1

KNOB

heater control

1шт.

9

109134C1

BRACKET

heater control valve

1шт.

24388R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 3/8"

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 znd reg lock

2шт.

10

HOSE, heater core to control valve, use 11 in. of 5/8 ID heater hose from bulk roll marked 117724C1

1шт.

11

313318R1

HOSE CLAMP,#14, 7/8", Spring

CLAMP, no. 14 type E spring wire hose

1шт.

12

HOSE, heater inlet tube to core, use 11 in. of 5/8 ID heater hose from bulk roll marked 117724C1

1шт.

13

143117C1

HEATER TUBE,0.625" OD, 1863.895 mm Length

TUBE, heater outlet

1шт.

14

1250579C1

CLAMP

CLIP, one hole double

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

111619C1

STRAP

adjustable

5шт.

16

143107C2

FLEXIBLE HOSE

HOSE ASSY, chassis liquid, service parts are

1шт.

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

1шт.

118188C1

CAP

1шт.

1275929C1

TUBE ASSY, liquid adapter 0.375" OD, 83" Length

1шт.

17

HOSE, heater inlet, use 72 in. of 5/8 ID heater hose from bulk roll marked 117724C1

1шт.

18

HOSE, heater outlet, use 84 in. of 5/8 ID heater hose from bulk roll marked 117724C1

1шт.

19

1250507C1

CLIP

twisted double hose

1шт.

20

1250508C1

CLAMP

CLIP, double hose

1шт.

21

(Not used this application)

1шт.

22

(Not used this application)

1шт.

23

306132C1

CABLE TIE,14.5" L

STRAP, adjustable tie

1шт.

24

143114C1

TUBE

ASSY, liquid

1шт.

25

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

5шт.

26

143411C1

CLAMP

A/C tubes

1шт.

24392R1

HARDWARE,Cross Pan Hd, #10 x 1/2"

SCREW, #10-16 1/2 PHC P/HDCR tap

2шт.

27

118316C1

CONDENSER

ASSY

1шт.

28

RECEIVER, dryer, refer to evaporator, heater core, this group for components

1шт.

29

1250438C1

TUBE ASSY.

TUBE ASSY, receiver, dryer

1шт.

30

118321C1

VALVE

bulbless expansion, 1-1/2 ton

1шт.

30

118321C1GV

VALVE

bulbless expansion, 1-1/2 ton

1шт.

31

CORE, comb. evaporator-heater, refer to evaporator-heater core, this group for components

1шт.

32

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 class 5

3шт.

33

143267C3

TUBE,0.625" OD, 196 mm Length

ASSY, evaporator discharge

1шт.

34

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

9/16 x 11/16 class 5

5шт.

35

143115C1

TUBE,0.625" OD, 1735 mm Length

ASSY, suction

1шт.

36

301803R91

VALVE

ASSY, heater inlet/outlet shutoff

2шт.

37

1250573C1

TUBE,17.1 - 19.2 mm ID, 29.2 - 34.3 mm OD

HOSE, suction tube insulation

1шт.

38

1250580C1

CLAMP

closed one hole

1шт.

39

1250581C1

CLAMP

liquid line

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

40

COMPRESSOR ASSY, air conditioner, refer to compressor, pulleys and belts this group for additional service parts

1шт.

41

118327C1

HOSE,10.32mm ID x 1295mm L

ASSY, compressor discharge

1шт.

42

118188C1

CAP

3шт.

TAPE, insulation, use 94 in. from bulk roll marked 118468C1

1шт.
