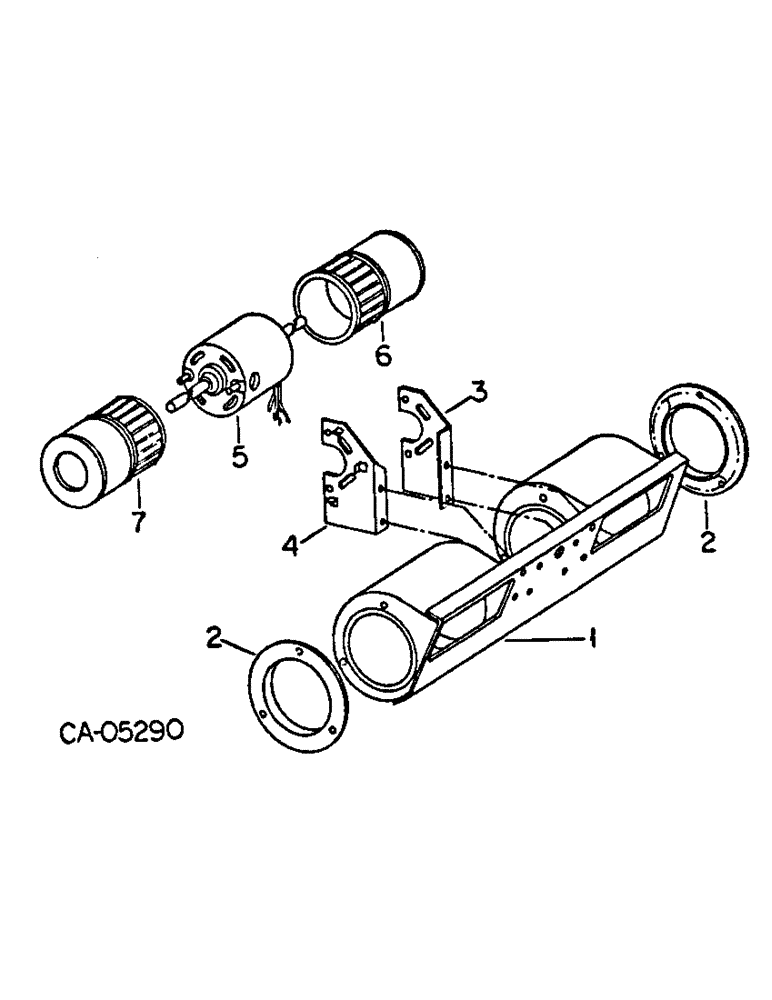

Запчасти Case IH HYDRO 186 (13-35) - SUPERSTRUCTURE, BLOWER ASSY P/N 109246C94, CAB WITH SERIAL NO. 107806 AND BELOW (05) - SUPERSTRUCTURE

109246C94

BLOWER

ASSY, pressurizer, SGM CO.

1шт.

1

117785C2

HOUSING ASSY.

HOUSING ASSY, weldment

1шт.

2

65010C1

RETAINER

inlet

2шт.

3

539017R1

SUPPORT

motor

1шт.

4

539019R2

SUPPORT

BRACKET ASSY

1шт.

5

117784C5

MOTOR, ELECTRIC

MOTOR, DC blower

1шт.

6

539018R2

FAN

wheel LH

1шт.

7

539077R2

FAN

wheel RH

1шт.

BLOWER ASSY, pressurizer, Torin corp

1шт.

1

118518C1

HOUSING AND MTG PLATE ASSY

1шт.

2

118352C1

RETAINER

inlet

2шт.

190075

ELBOW,Phil Pan Hd, #6 x 5/16"

SCREW, no. 6 x 5/16 P/HDCR tap

3шт.

3

118351C1

BRACKET, motor mrg RH

1шт.

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

8-32 hex keps

2шт.

4

118350C1

BRACKET

ASSY, motor mtg

1шт.

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

8-32 hex keps

2шт.

5

117784C5

MOTOR, ELECTRIC

MOTOR, DC blower

1шт.

6

539018R2

FAN

wheel LH

1шт.

7

539077R2

FAN

wheel RH

1шт.
