Запчасти Case IH HYDRO 186 (13-31) - SUPERSTRUCTURE, CAB GLASS (05) - SUPERSTRUCTURE

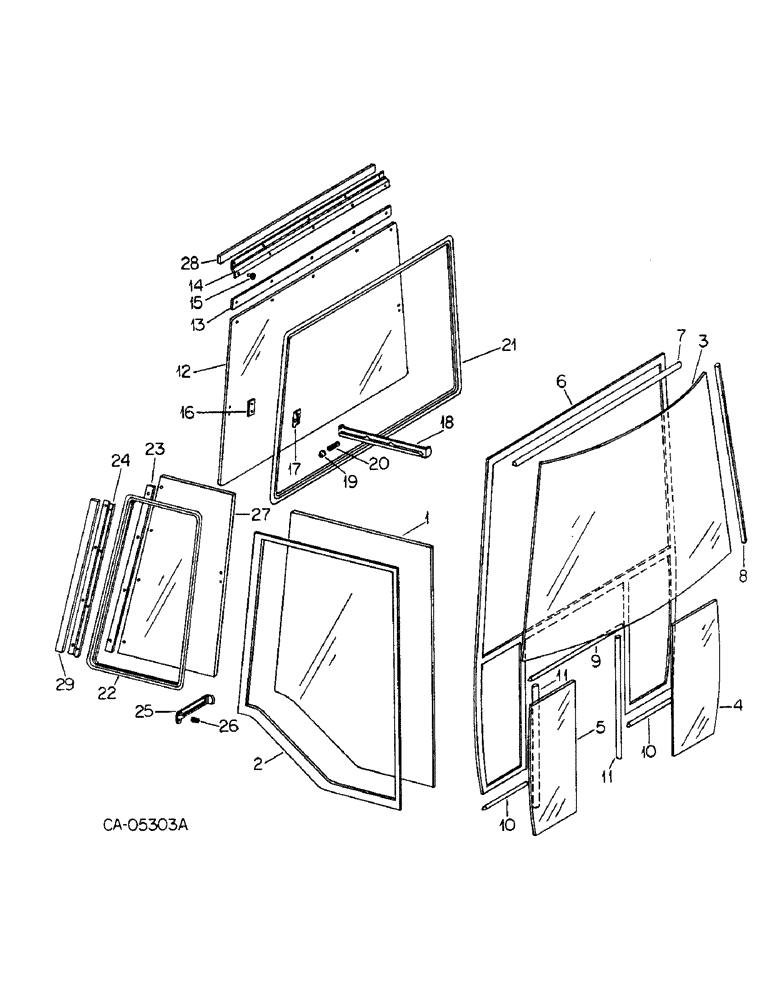

Схема запчастей Case IH HYDRO 186 - (13-31) - SUPERSTRUCTURE, CAB GLASS (05) - SUPERSTRUCTURE
16
13
2
22
4
28
5
20
19
15
12
6
11
10
27
7
21
14
9
24
25
29
23
18
1
26
3
10
8
11
17

Артикул

Название

Примечание

Количество

1

109584C2

GLASS

door window

2шт.

2

109578C2

DOOR SEAL

door window glass LH

1шт.

2

109579C2

DOOR SEAL

door window glass RH

1шт.

3

109133C3

GLASS

upper windshield

1шт.

4

109131C2

GLASS

lower windshield LH

1шт.

5

109132C2

GLASS

lower windshield RH

1шт.

6

111611C2

SEAL

windshield

1шт.

7

LOCK, w/shield glass seal, header, furnish 48.06 inch from bulk 50 ft roll marked 64514C1

1шт.

8

LOCK, w/shield glass seal, side, furnish 58.02 inch from bulk 50 ft roll marked 64514C1

2шт.

9

LOCK, w/shield glass seal, center, furnish 55.54 inch from bulk 50 ft roll marked 64514C1

1шт.

10

LOCK, w/shield glass seal, bottom, furnish 13.45 inch from bulk 50 ft roll marked 64514C1

2шт.

11

LOCK, w/shield glass seal, inner, furnish 21.35 inch from bulk 50 ft roll marked 64514C1

2шт.

12

109318C2

GLASS

rear window

1шт.

13

109586C1

PAD

rear window hinge

1шт.

14

117673C1

HINGE

ASSY, rear window

1шт.

26672R1

SELF-TAP SCREW

1/4 x 3/4 PHC P/HDCR tap

8шт.

115109

WASHER,1/4"

1/4"

8шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

5шт.

111626C1

NUT

1/4-20 nylon insert lt-thn lc stl PHC lock

5шт.

15

109171C1

BUSHING,6.6mm ID x 8.74mm OD x 6.46mm L

21шт.

16

109587C1

PAD

sector arm pivot

4шт.

17

109588C1

BRACKET

sector arm pivot

4шт.

1250618C1

CAPTIVE WASHER SCREW,Pan HD, 1/4" - 20 x 3/4"

SCREW, w/washer, 1/4-20 x 3/4

8шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

8шт.

111626C1

NUT

1/4-20 nylon insert lt-thn lc-stl PHC lock

8шт.

18

111353C2

ARM

rear window sector LH

1шт.

18

111354C2

ARM

rear window sector RH

1шт.

27930R1

PIN

3/8 x .500 N/D PHC type 1 hd

2шт.

19

118140C1

NUT

FASTENER, push-on

6шт.

20

109590C1

SPRING

sector arm compression

4шт.

111365C1

CONE WASHER

coned

8шт.

21

SEAL, rear window glass, furnish 148 inch from bulk 25 ft roll marked 64518C1

1шт.

22

SEAL, quarter window, furnish 88.1 inch from bulk 50 ft roll marked 64518C1

2шт.

23

109592C1

PAD

quarter window hinge

2шт.

24

109478C1

HINGE

quarter window

2шт.

1250618C1

CAPTIVE WASHER SCREW,Pan HD, 1/4" - 20 x 3/4"

SCREW, w/washer, 1/4-20 x 3/4

8шт.

115109

WASHER,1/4"

1/4"

8шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

12шт.

111626C1

NUT

1/4-20 znd nylon insert

8шт.

27911R1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

SCREW, 1/4 x 1 PHC P/H CR tap

8шт.

25

111412C1

ARM

quarter window sector LH

1шт.

25

111413C1

ARM

quarter window sector RH

1шт.

27931R1

PIN

3/8 x 1 N/D PHC type 1 hd

2шт.

26

109585C1

SPRING

pivot compression

2шт.

27

109319C2

GLASS

quarter window

2шт.

Cabs with serial no. 107806 and below.

1шт.

27

1250436C2

GLASS

quarter window

2шт.

Cabs with serial no. 107807 and above.

1шт.

28

117754C1

SEAL

rear window hinge, Serial Range: -30085

1шт.

29

118122C1

SEAL

quarter window hinge

2шт.

Выбрано товаров: 50
