Запчасти Case IH HYDRO 186 (13-18) - SUPERSTRUCTURE, REAR VIEW MIRROR (05) - SUPERSTRUCTURE

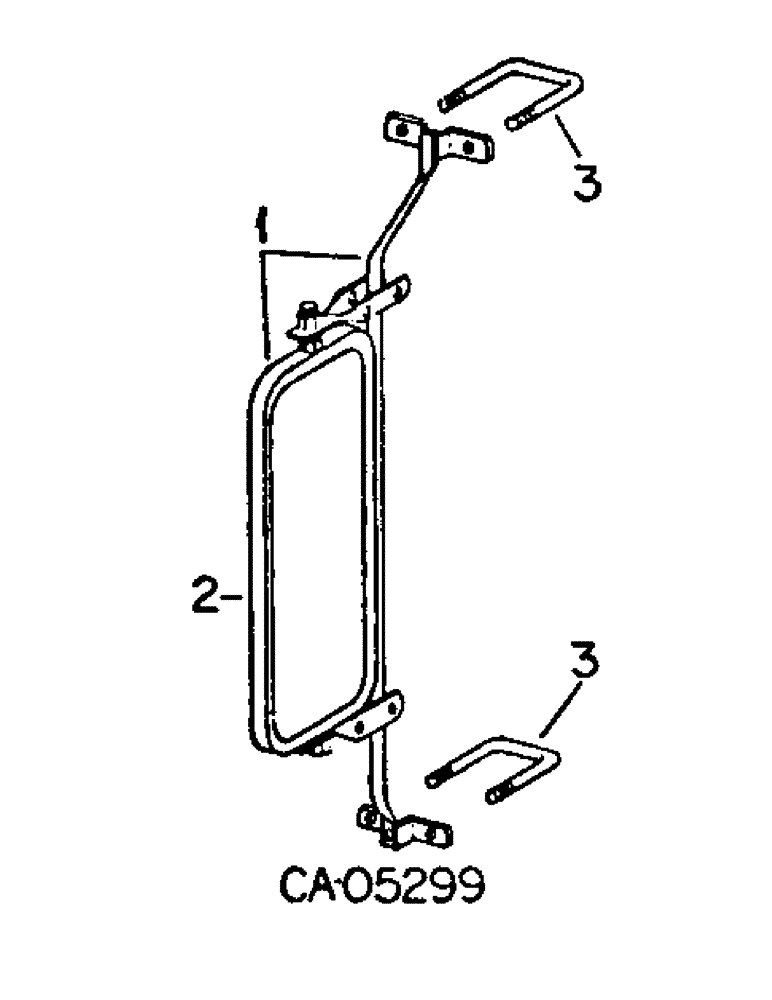

Схема запчастей Case IH HYDRO 186 - (13-18) - SUPERSTRUCTURE, REAR VIEW MIRROR (05) - SUPERSTRUCTURE
2
3
1
3

Артикул

Название

Примечание

Количество

71612C91

PACKAGE

PARTS ACCESSORY, rear view mirror

1шт.

1

117719C1

REAR VIEW MIRROR

MIRROR ASSY, rear view

1шт.

23998R1

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, , Mounting to cab door Hex Hd, 1/4" x 1/2"

4шт.

2

117799C1

MIRROR

rear view head assy

1шт.

3

70748C1

U-BOLT, mounting to ROPS structure

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Выбрано товаров: 7
