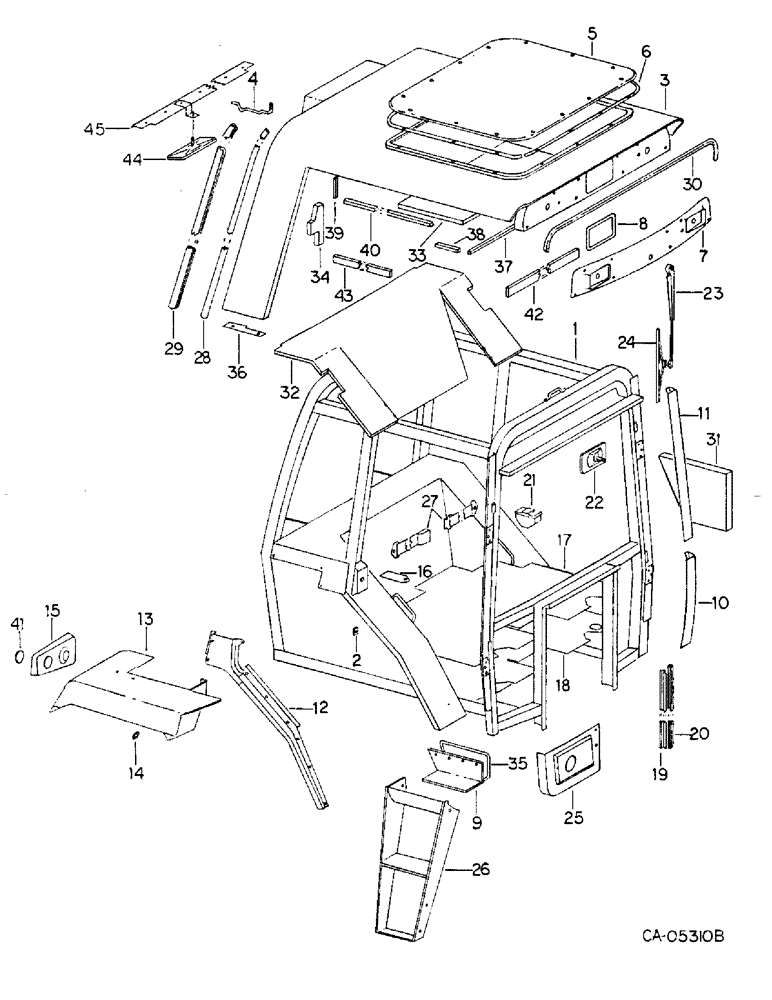

Запчасти Case IH HYDRO 186 (13-16) - SUPERSTRUCTURE, TRACTOR CAB AND CONNECTIONS (05) - SUPERSTRUCTURE

1

118311C93

CAB

ASSY, w/product graphic, tractor cab w/air conditioner

1шт.

Cabs with serial no. 107806 and below.

1шт.

1

118312C93

CAB ASSY, w/product graphic, tractor cab w/o air conditioner

1шт.

Cabs with serial no. 107806 and below.

1шт.

1

77908C93

CAB

ASSY, w/trim, AM-FM radio w/8 track tape and rear aux lights, deluxe cab, replaces 142897C91

1шт.

Cabs with serial no. 107806 and below.

1шт.

1

143346C92

CAB

ASSY, w/western interior

1шт.

Cabs with serial no. 107806 and below.

1шт.

445444

NUT,U, #10-16

10-12 PHC u-spr style II

6шт.

406391C1

PLUG,1"

1.0 inch button, replaces 142093

2шт.

117675C1

PLUG

2.0 inch Hole

2шт.

353-417

PLUG,Dome, 2.000" hole, Nylon

2.0 inch button, replaces 432576

1шт.

118148C2

SELF-TAP SCREW,Hex, #10 x 3/8"

SCREW, hex-hd mach

6шт.

115109

WASHER,1/4"

1/4"

6шт.

1

1267539C91

CAB

ASSY, w/product graphic

1шт.

Cabs with serial no. 107807 and above.

1шт.

445444

NUT,U, #10-16

10-12 PHC u-spr style II

4шт.

1267607C1

PLUG

hole

1шт.

86625129

PLUG,Dome, 1" Hole, Nylon

2шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 pln type 1

2шт.

143088C1

PLUG

9/16 hole

2шт.

117675C1

PLUG

.5 inch Hole

8шт.

118148C2

SELF-TAP SCREW,Hex, #10 x 3/8"

SCREW, hex-hd mach

6шт.

115109

WASHER,1/4"

1/4"

6шт.

353-417

PLUG,Dome, 2.000" hole, Nylon

2.0 inch hole

1шт.

406391C1

PLUG,1"

1.0 plastic hole

1шт.

2

109398C1

PLATE

lock striker tapping

2шт.

3

PANEL ASSY, roof weld and caulk, not serviced separately, order package 1262416C91

1шт.

445406

SPRING NUT,Tinn, 1/4"-14

14-10 j-shape spring

14шт.

27911R1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

SCREW, 1/4 x 1 PHC P/H CR tap

12шт.

115109

WASHER,1/4"

1/4"

12шт.

118664

WASHER, .312 x .734 x .051 plain

8шт.

142970C1

PLUG

button 1.0 plastic hole

1шт.

NLS

NO LONGER SERVICED

1/4 button

1шт.

4

117727C2

ROD

filter retainer

3шт.

27904R1

SCREW,Cross Pan Hd, #10 x 1/2"

10-16 x 5/8 pan-hd cr-tap

10шт.

5

143006C2

PANEL

roof access, replaces 109468C1

1шт.

111618C1

SCREW

1/4-14 x 3/4 hex-hd washer tapping

14шт.

6

109295C1

GASKET

roof access panel

2шт.

7

109470C1

PANEL

roof cap cover

1шт.

8

117732C2

GASKET

wiper opening

1шт.

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, 10-16 x 1/2 polseal pan-hd cr-rec tap

12шт.

9

109441C1

PANEL

inner step LH

1шт.

9

109442C1

PANEL

inner step RH

1шт.

111240C1

FASTENER

1/4 turn

4шт.

27044R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

SCREW, 8-18 x 3/8 cr-rec-pan-hd tap

8шт.

10

109485C1

PANEL

hinge piller lower LH

1шт.

10

109486C1

PANEL

hinge piller lower RH

1шт.

11

109489C1

PANEL

hinge piller upper LH

1шт.

11

109490C1

PANEL ASSY.

PANEL, hinge piller upper RH

1шт.

27904R1

SCREW,Cross Pan Hd, #10 x 1/2"

#10-16 x 1/2 CRB C/R S/D tap

2шт.

Cabs with serial no. 107806 and below.

1шт.

167096

WASHER

SCREW, no. 10 x 1/2 CRB P/HDCR tap

6шт.

Cabs with serial no. 107806 and below.

1шт.

1267248C1

SELF-TAP SCREW,Pan Hd, #10 - 16 x 1/2"

no. 10-16 x 1/2 poly seal tap

2шт.

Cabs with serial no. 107807 and above.

1шт.

261-1456

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, no. 10-54 x 3/8 poly seal tap

4шт.

Cabs with serial no. 107807 and above.

1шт.

12

111581C1

EXTENSION

ASSY, wheel well LH

1шт.

12

111582C1

EXTENSION

ASSY, wheel well RH

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

14шт.

456107C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, #10-16 x 1/2 PHC C/R S/D tap

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

14шт.

13

109491C3

FENDER ASSY.

FENDER ASSY, LH

1шт.

13

109492C3

FENDER ASSY.

FENDER ASSY, RH

1шт.

143310C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 24 x 1/2"

SCREW, 10-24 x 1/2 polyseal

4шт.

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

SCREW, 10-16 x 1/2 polyseal

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051 ZN

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 flange lock

18шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

172487

SCREW,Hex, 3/8" - 16 x 1"

3/8-16 x 1 znd hex-hd tap type D

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

111461C1

TUBE, fender

2шт.

Cabs with serial no. 107806 and below.

1шт.

SEAL, fender edge, furnish 3 in. from bulk roll marked 198578C1

2шт.

Cabs with serial no. 107807 and above.

1шт.

14

117762C1

CLAMP

CLIP, fender tube

4шт.

15

111562C2

PANEL

rear lamp LH

1шт.

15

111563C2

PANEL

rear lamp RH

1шт.

16

111346C1

PLATE

lock striker trim cover

1шт.

27161R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, 10-24 x 3/8 tap

1шт.

17

109250C4

MAT

floor (Black Vinyl)

1шт.

17

118599C1

MAT

carpeted floor

1шт.

For deluxe cabs.

1шт.

17

143329C1

MAT

carpeted floor, for western interior cab

1шт.

18

111435C3

MAT

SHEET, floor mat, liner

1шт.

18

118600C1

SHEET

floor mat, liner

1шт.

For deluxe cabs.

1шт.

19

104754C1

CHANNEL

firewall seal

2шт.

20

104752C1

SEAL

cab to firewall, vertical

2шт.

21

111396C1

ASH TRAY

TRAY, ash

1шт.

22

66518C1

MIRROR

rear view

1шт.

120376

NUT,5/16"-18, G5

1шт.

623083R1

WASHER

5/16 CAD lock

1шт.

23

1255815C1

ARM

ASSY, windshield wiper

1шт.

24

109225C1

WINDSHIELD WIPER

BLADE ASSY, flex windshield wiper

1шт.

25

117746C2

PANEL

front lower LH

1шт.

25

117747C2

PANEL

front lower RH

1шт.

117987C1

SPRING NUT

10-16, U-shaped spring

2шт.

118071C2

SCREW,Phillips Drive, Truss HD, #8 - 18 x 1/2"

8-18 x 1/2 PHC pan-hd cr-rec tap

4шт.

27994R1

SCREW, 10 x 1/2 P/HDCR tap

2шт.

26

109432C2

LADDER

ASSY, LH

1шт.

26

109433C2

LADDER

ASSY, RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

7шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

180125

SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5

BOLT, 3/8 x 1-3/8 type 5

4шт.

614452R1

WASHER

.406 x 1.250 x .090

4шт.

21741R1

WASHER

.406 x .875 x .105

8шт.

27

537339R1

SAFETY BELT

SAFETY BELT

1шт.

344096C3

BOLT

BOLT, seat belt anchor

2шт.

24513R1

NUT,7/16"-20, G8

7/16-20 znd hex, type 8

2шт.

28

109194C1

STRIP

qtr panel chrome front, trim

1шт.

27835R1

SCREW,Hex Wash Hd, #10 x 7/16"

10-16 x 7/16 SD tap

2шт.

29

1262166C1

STRIP

qtr panel chrome rear, trim, replaces 109193C1

1шт.

30

109269V1

STRIP, roof eyebrow, trim, see note B

1шт.

30

143294C1

SEALING STRIP

roof eyebrow trim, see note C

1шт.

31

109271C1

NOISE PROTECTION

INSULATION, door foam LH

1шт.

31

109272C1

NOISE PROTECTION

INSULATION, door foam RH

1шт.

32

111430C3

PLATE

SHEET, rear panel foam, insulation

1шт.

32

118594C1

SHEET

rear panel foam, insulation, for burgundy interior cabs

1шт.

Cabs with serial no. 107807 and above.

1шт.

For deluxe cabs.

1шт.

32

143330C1

SHEET

rear panel insulation, for western interior cabs

1шт.

33

109290C6

NOISE PROTECTION

INSULATION, access cover

1шт.

34

111659C1

SEAL

rear roof corner

2шт.

Cabs with serial no. 30085 and below.

1шт.

35

111239C2

SEAL

inner step, LH

1шт.

35

118038C2

SEAL

inner step, RH

1шт.

36

111529C1

SEAL

, Serial Range: roof-fender

2шт.

37

SEAL, air intake filter, order package, 143481C91

2шт.

38

SEAL, air intake filter, order package, 143481C91

2шт.

39

(Not used in this application)

1шт.

40

(Not used in this application)

1шт.

REF 39/40 DLR FOUND ONE ON HIS TRACTOR. MAY NOT BE NECESSARY PER NOTES. CNS/CAM 1/8/96

1шт.

41

109235C1

REFLECTOR

serial no. 15695 and below

2шт.

42

118146C1

SEAL, cab roof front

1шт.

Cabs with serial no. 30085 and below.

1шт.

43

118147C1

SEAL

cab roof side

2шт.

Cabs with serial no. 30085 and below.

1шт.

44

118208C1

MIRROR

ASSY

1шт.

45

118299C1

SUPPORT

ASSY, headliner rear

1шт.

534441R1

FLUID

ADHESIVE, misc. trim & seal repair

1шт.

111480C3

DECAL

PRODUCT GRAPHIC, cab safety caution

1шт.

70571C1

DECAL

PRODUCT GRAPHIC, ROPS caution instr.

1шт.

111484C2

DECAL

PRODUCT GRAPHIC, air conditioner instr.

1шт.

111662C2

EMBLEM CASE/IH

EMBLEM ASSY, IH trademark

2шт.

111690C1

FASTENER

push grip

4шт.

71656C92

PACKAGE

PRODUCT GRAPHIC, cab trim, consists of quarter panel trim top (NSS), quarter panel trim LH (NSS), quarter panel trim RH (NSS)

1шт.

1262416C91

TOP

PACKAGE, fully trimmed roof assy, consists of ref nos. 3, 4, 8, 28, 29, 30 & 36 plus

1шт.

111618C1

SCREW

1/4-14 x 3/4

14шт.

27904R1

SCREW,Cross Pan Hd, #10 x 1/2"

#10-16 x 1/2 CRB C/R S/D tap

2шт.

167096

WASHER

SCREW, no. 10 x 1/2 CRB P/HDCR tap

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

172487

SCREW,Hex, 3/8" - 16 x 1"

3/8 x 1 H/HD tap

4шт.

406391C1

PLUG,1"

1.0 plastic hole

1шт.

109586C1

PAD

rear window hinge

1шт.

26672R1

SELF-TAP SCREW

1/4 x 3/4 PHC P/HDCR tap

8шт.

115109

WASHER,1/4"

1/4"

16шт.

109592C1

PAD

quarter window hinger

2шт.

118122C1

SEAL

quarter window hinger

2шт.

27911R1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

SCREW, 1/4 x 1 PHC P/H CR tap

8шт.

118144C1

SEAL

air intake rear long

2шт.

118145C1

SEAL

air intake rear short

2шт.

111662C2

EMBLEM CASE/IH

EMBLEM ASSY, IH trademark

2шт.

111690C1

FASTENER

push grip, instructions (NSS)

4шт.
