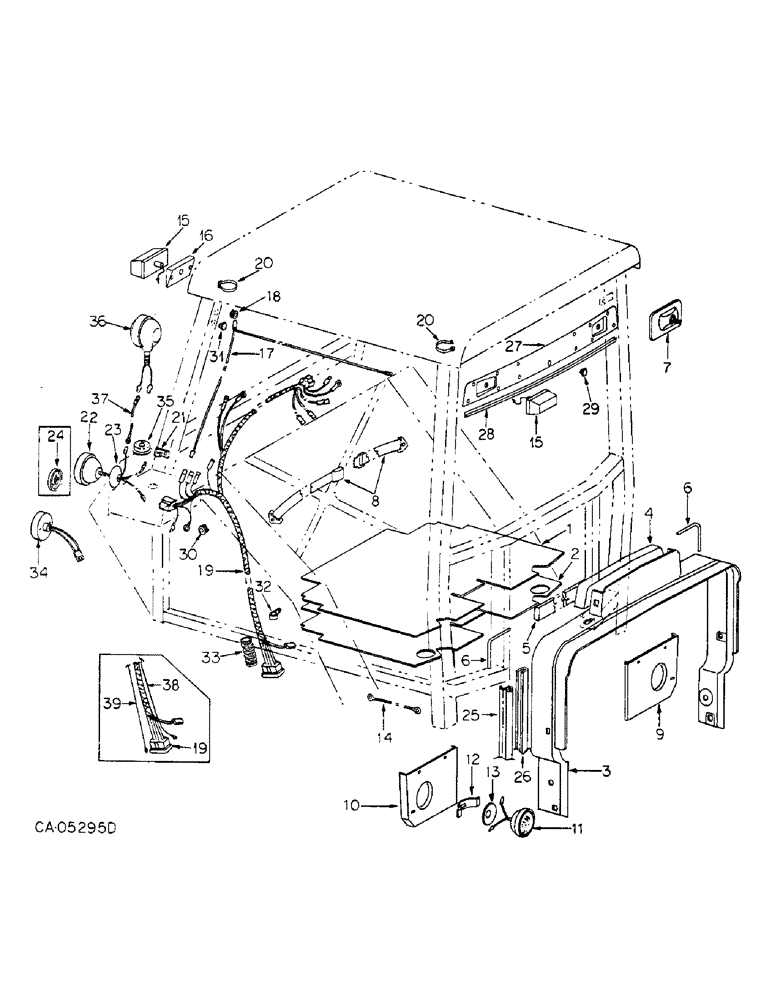

Запчасти Case IH HYDRO 186 (13-14) - SUPERSTRUCTURE, ROLL OVER PROTECTIVE FRAME CONNECTIONS (05) - SUPERSTRUCTURE

1

111622C3

MAT

floor

1шт.

2

111435C3

MAT

LINER, floor mat

2шт.

3

104734C1

SUPPORT ASSY.

SUPPORT ASSY, frt hood

1шт.

4

104737C1

SEAL

front hood channel

1шт.

5

104738C1

SEAL

front hood rear

2шт.

6

103998C2

SEAL

upper instrument housing

2шт.

7

66518C1

MIRROR

rear view

1шт.

120376

NUT,5/16"-18, G5

1шт.

623083R1

WASHER

5/16 lock

1шт.

8

537339R1

SAFETY BELT

SAFETY BELT

1шт.

344096C3

BOLT

BOLT, seat belt anchor

2шт.

24513R1

NUT,7/16"-20, G8

7/16-20 znd type 8 hex

2шт.

9

111616C1

SHROUD

LH

1шт.

10

111617C1

SHROUD

RH

1шт.

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

SCREW, 1/4-20 x 3/4 flange lock hex-hd

6шт.

11

107352C91

LAMP BASE

LIGHT ASSY, front floor, consists of

2шт.

390756R91

LAMP

LIGHT, sealed beam unit

1шт.

676078R1

RETAINER

shock proof light

1шт.

12

117723C1

STRAP

lamp retainer

2шт.

13

388947R1

RETAINER

lamp

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

14

537055R1

CABLE

ASSY, tractor to cab ground

1шт.

178556

WASHER,Ext-Int Tooth, 7/16"

3/8 toothlock

1шт.

15

130882C91

LAMP

LIGHT ASSY, combination flash-turn, only serviceable items are lamp 9417866 and lens 130883C1

4шт.

27619R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/2"

SCREW, 10-16 x 2-1/2 pan-hd cr-rec tap

4шт.

ROPS with serial no. 107806 and below.

1шт.

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, 10-16 x 1/2 polyseal

12шт.

ROPS with serial no. 107806 and below.

1шт.

24392R1

HARDWARE,Cross Pan Hd, #10 x 1/2"

SCREW, #10-16 x 1/2 PHC P/HDCR tap

12шт.

ROPS with serial no. 107807 and above.

1шт.

16

118019C1

BLOCK

lamp support

1шт.

27890R1

SCREW

10-16 x 3 pan-hd cr-rec tap

4шт.

17

118020C1

CABLE

ASSY, ROPS warning light

2шт.

67311C1

CLIP, harness

6шт.

18

111623C1

GROMMET

rubber

2шт.

19

111633C2

HARNESS

ASSY, fender lights

1шт.

ROPS with serial no. 107806 and below.

1шт.

19

118392C2

HARNESS

ASSY, fender lights

1шт.

ROPS with serial no. 107806 and below.

1шт.

19

245000C1

HARNESS

fender

2шт.

ROPS with serial no. 107807 and above.

1шт.

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, 5/16 ext-int-tooth lock

2шт.

142350

GROMMET,7/8" ID x 1 5/8" x .125", Diag Cut

rubber

2шт.

20

111264C3

CABLE

ASSY, ground

4шт.

24392R1

HARDWARE,Cross Pan Hd, #10 x 1/2"

SCREW, 10-16 x 1/2 pan-hd cr-rec tap

4шт.

21

370383R1

CLIP

rear lamp harness

2шт.

22

107351C91

HEADLIGHT

LIGHT ASSY, flood and tail, consists of, Serial Range: -10252

2шт.

371461R92

LAMP

LIGHT, sealed beam

1шт.

676078R1

RETAINER

shock proof light

1шт.

455490

BULB,C-6, #1003, 12V, .94W

LAMP, #1003 12 volt

1шт.

22

388945R91

HEADLIGHT

LIGHT ASSY, rear flood, service parts are, Start Serial: 10253

1шт.

373662R91

LAMP

type C-6 trade #4411 (or)

1шт.

131508C1

LAMP BASE

LIGHT, replacement #H7610

1шт.

676078R1

RETAINER

rubber

1шт.

23

388947R1

RETAINER

light

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

2шт.

24

109235C1

REFLECTOR

, Serial Range: -10252

2шт.

25

104754C1

CHANNEL

firewall seal

2шт.

26

104752C1

SEAL

, Serial Range: ROPS-firewall

2шт.

27

109470C1

PANEL

front roof cap cover

1шт.

28

472429C1

PLUG

Sheet Metal

2шт.

29

118108C1

SEALING STRIP

SEAL, panel edging trim-strip

1шт.

30

376254R1

GROMMET

rubber

2шт.

31

118119C1

PLUG

hole

6шт.

32

299410C1

CLAMP,5/8", Insul, 1/4" Bolt

cable harness

1шт.

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

1/4 x 1/2 h/hd tap

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

33

118156C1

CONDUIT

convoluted insulation

1шт.

34

131183C91

STOP LIGHT

LIGHT ASSY, tail, Start Serial: 10253

2шт.

24396R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW, no. 10-16 x 3/4 P/HDCR tap

4шт.

35

1267358C2

SEAT

rear flood mtg ball, replaces 370307R1

1шт.

120371

NUT,1/2"-20, G5

2шт.

1225773C1

GASKET, lamp seat

2шт.

36

131368C92

HEADLIGHT

LIGHT ASSY, auxiliary rear flood, consists of

2шт.

131203C1

LAMP

ASSY

1шт.

676078R1

RETAINER

for JWH Obbs light assy

1шт.

1252609C1

RETAINER

for Midwest light assy

1шт.

37

405209R1

CABLE

ASSY, aux light ground

1шт.

38

1265507C1

CABLE

LH turn signal, see note B

1шт.

39

1265508C1

CABLE

RH turn signal, see note B

1шт.

111619C1

STRAP

adjustable

1шт.

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, 5/16 ext-int tooth lock

4шт.

169850C1

CLIP

1шт.

77600C91

SPARE PART

PARTS ACCESSORY, rear fender mounted aux lighting, consists of

1шт.

131436C1

CABLE PULLING GRIP

CABLE ASSY

1шт.

9426333

FUSE,15 Amp, Type 3AG

3AG 15 amperes

1шт.

131319C1

SWITCH

ASSY

1шт.

1276080C1

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/8"

SCREW, no. 6 x 3/8 polyseal P/HDCR mach

2шт.

131368C92

HEADLIGHT

LIGHT ASSY, rear flood

2шт.

1267358C2

SEAT

2шт.

120371

NUT,1/2"-20, G5

2шт.

1103184

ALTERNATOR

-GENERATOR

1шт.

362667R1

CLIP

cable

3шт.

405209R1

CABLE

ASSY

2шт.
