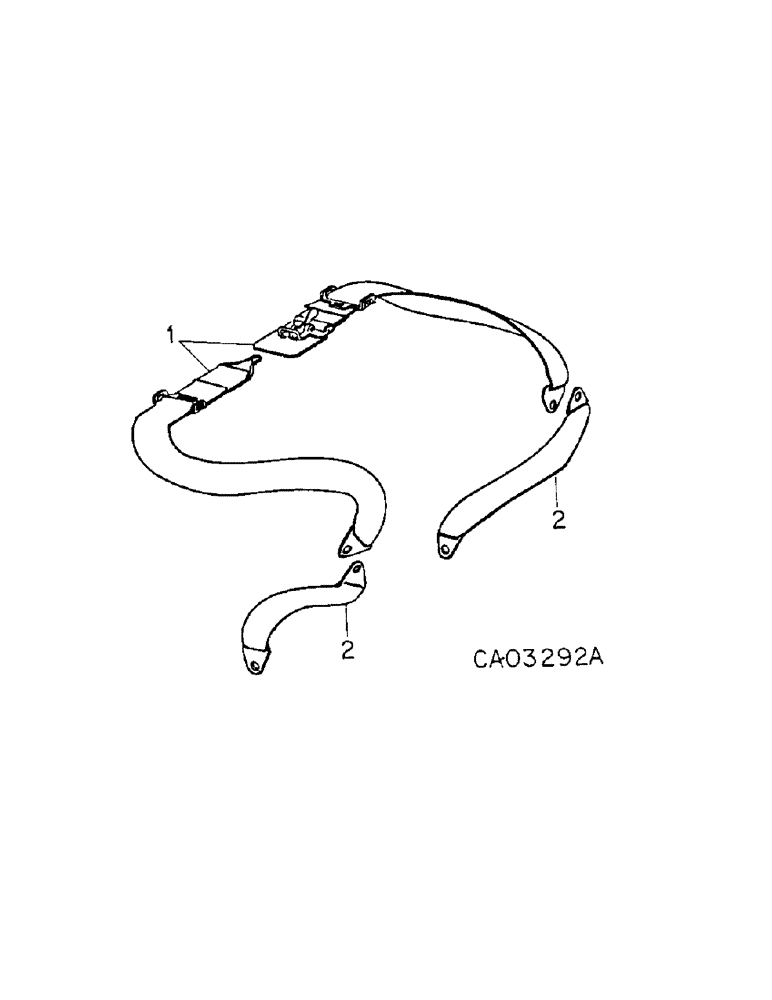

Запчасти Case IH HYDRO 186 (13-11[A]) - SUPERSTRUCTURE, SEAT BELT ATTACHMENT (05) - SUPERSTRUCTURE

70885C91

PARTS ACCESSORY, seat belt, 3 in., tractors with hydraulic seat and cab or ROPS frame, consists of 3 in. seat belt and attaching hardware

1шт.

71233C91

PARTS ACCESSORY, seat belt, 2 in., tractors with hydraulic seat and cab or ROPS frame, consists fo 2 in. seat belt only

1шт.

64503C91

PARTS ACCESSORY, seat belt, 3 in., tractors with vertical acting seat and cab or ROPS frame, consists of 3 in. seat belt, belt retainer and attaching hardware

1шт.

64504C91

PARTS ACCESSORY, seat belt, 2 in., tractors with vertical acting seat and cab or ROPS frame, consists of 2 in. seat belt, belt retainer and attaching hardware

1шт.

1

702248C3

BELT

SAFETY BELT, 3"

1шт.

1

71236C1

SAFETY BELT

SAFETY BELT, 2"

1шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16 x 1 znd hex-hd cap

2шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 prevailing torque

2шт.

404911C1

BOLT

seat belt anchor, hydraulic seat

2шт.

23043R1

WASHER

15/32 x 2 x 11 ga

2шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

2шт.

344096C3

BOLT

BOLT, seat belt anchor, vertical acting seat

2шт.

24513R1

NUT,7/16"-20, G8

7/16-20 zn hex, type 8, vertical acting seat

2шт.

2

117743C1

BELT ASSY, seat retainer, vertical acting seat

2шт.

344096C3

BOLT

BOLT, seat belt anchor, vertical acting seat

2шт.

24513R1

NUT,7/16"-20, G8

7/16-20 zn hex, type 8, vertical acting seat

2шт.
