(13-10) - SUPERSTRUCTURE, SEAT, DELUXE HYDRAULIC, GRAMMER, TRACTORS WITH SERIAL NO. 12000 AND ABOVE

Запчасти Case IH HYDRO 186 (13-10) - SUPERSTRUCTURE, SEAT, DELUXE HYDRAULIC, GRAMMER, TRACTORS WITH SERIAL NO. 12000 AND ABOVE (05) - SUPERSTRUCTURE

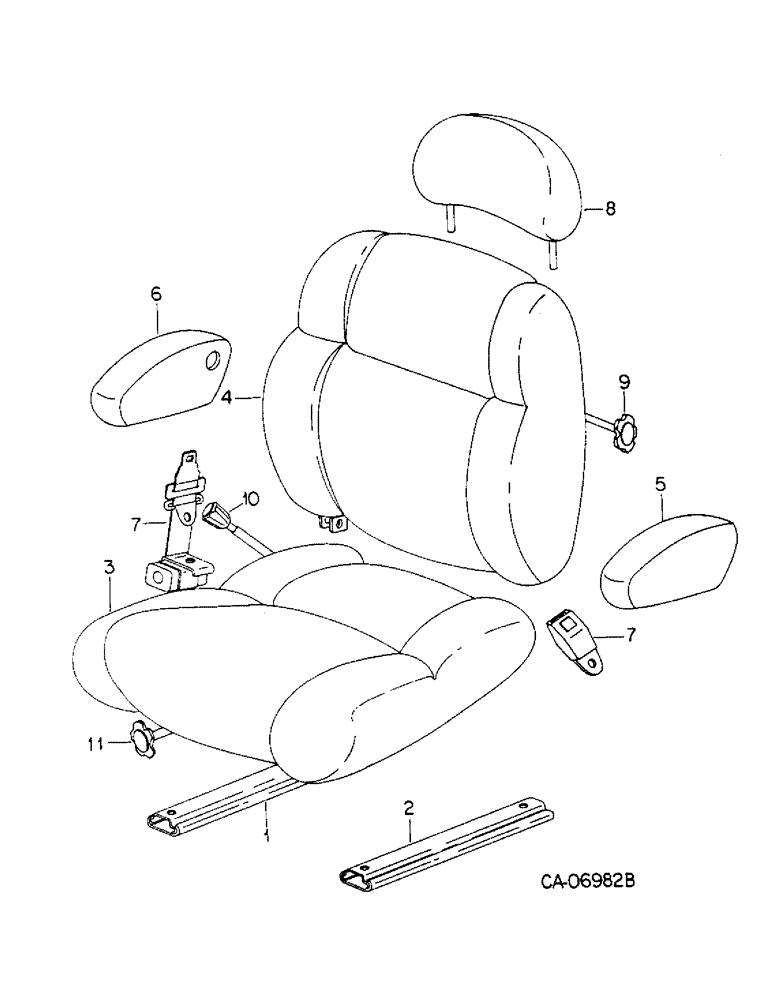

Схема запчастей Case IH HYDRO 186 - (13-10) - SUPERSTRUCTURE, SEAT, DELUXE HYDRAULIC, GRAMMER, TRACTORS WITH SERIAL NO. 12000 AND ABOVE (05) - SUPERSTRUCTURE
5
9
3
11
8
6
7
1
7
2
10
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

143357C91

SEAT

ASSY, burgundy hyd, optional w/118591C91

1шт.

143331C91

SEAT

ASSY, western hyd, optional w/143358C91

1шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

1

143443C1

SLIDE

ASSY, w/o handle

1шт.

2

143443C1

SLIDE

ASSY, w/o handle

1шт.

3

143444C1

CUSHION

seat

1шт.

For burgundy seats only.

1шт.

3

143450C1

CUSHION

seat

1шт.

For western seats only.

1шт.

4

143445C1

CUSHION

back

1шт.

For burgundy seats only.

1шт.

4

143451C1

CUSHION

back

1шт.

For western seats only.

1шт.

5

143446C1

ARM

REST ASSY, LH

1шт.

For burgundy seats only.

1шт.

5

143452C1

ARM

REST ASSY, LH

1шт.

For western seats only.

1шт.

6

143447C1

ARM

REST ASSY, RH

1шт.

For burgundy seats only.

1шт.

6

143453C1

ARM

REST ASSY, RH

1шт.

For western seats only.

1шт.

7

143448C1

BELT

SAFETY BELT

1шт.

For burgundy seats only.

1шт.

7

143454C1

BELT

ASSY, seat

1шт.

For western seats only.

1шт.

8

143449C1

CUSHION

upper backrest

1шт.

For burgundy seats only.

1шт.

8

143455C1

CUSHION

upper backrest

1шт.

For western seats only.

1шт.

9

1267561C1

KNOB

ASSY, lumbar adj

2шт.

For western seats only.

1шт.

10

1267562C1

HANDLE

ASSY, backrest tilt

1шт.

For western seats only.

1шт.

11

1267563C1

KNOB

ASSY, seat cushion tilt

1шт.

For western seats only.

1шт.
