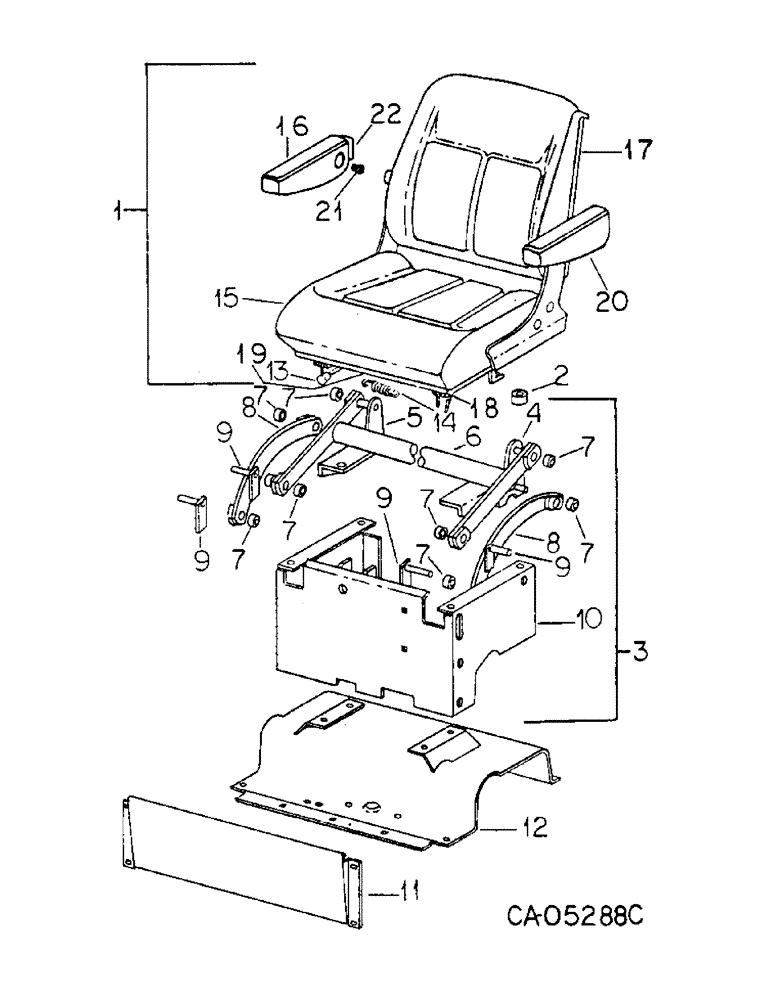

Запчасти Case IH HYDRO 186 (13-07) - SUPERSTRUCTURE, HYDRAULIC SEAT ATTACHMENT, TRACTORS WITH SERIAL NO. 11999 AND BELOW (05) - SUPERSTRUCTURE

HYDRAULIC SEAT ATTACHMENT, refer to group 10, for hydraulic connections, cylinder and valve

1шт.

1

120198C92

SEAT

ASSY, vinyl

1шт.

1

76442C91

SEAT ASSY, cloth

1шт.

2

120196C1

SPACER

seat

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

3

120028C91

SUPPORT

SUSPENSION ASSY, seat

1шт.

4

534388R3

SUPPORT

ASSY, seat suspension LH

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

2шт.

5

534389R3

SUPPORT

ASSY, seat suspension RH

1шт.

180174

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5

SCREW, 1/2-13 x 1-1/8 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

2шт.

6

534393R92

LINK

ASSY, seat upper

1шт.

7

534398R1

BUSHING,15.95mm ID x 19.13mm OD x 22.35mm L

seat linkage bar

8шт.

8

534399R1

BAR

ASSY, seat lower link

2шт.

9

534402R1

PIN

ASSY, front pivot

4шт.

10

SUPPORT ASSY, seat, not serviced separately, furnish 120028C91

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

104223C1

PANEL

seat suspension

1шт.

157772

SCREW, 5/16-18 x 3/4 znd cr-rec-truss-hd mach

2шт.

12

104215C1

COVER

ASSY, seat support, replaces 64925C1

1шт.

13

139062C1

SLIDE

ASSY, w/handle, replaces 64919C1

1шт.

14

64926C1

SPRING

slide adjuster

2шт.

15

72937C1

CUSHION

ASSY, seat, vinyl

1шт.

15

192885C1

SHAFT

CUSHION ASSY, seat, cloth

1шт.

16

139070C1

ARMREST

REST, arm, RH, vinyl, replaces 64925C1

1шт.

16

143433C1

KIT

REST, arm, RH, cloth, replaces 118575C1

1шт.

17

142887C1

CUSHION

back, vinyl, replaces 72938C1

1шт.

17

142886C1

CUSHION

back, cloth, replaces 72938C1

1шт.

18

139064C1

SLIDE

ASSY, w/o handle, replaces 64919C1

1шт.

19

139066C1

ROD

latch connecting

1шт.

20

139069C1

ARMREST

REST, arm, LH, vinyl, replaces 64925C1

1шт.

20

143432C1

ARM

REST, arm, LH, cloth, replaces 118574C1

1шт.

21

139067C1

SCREW,1/4" - 20 x 0.38"

arm rest stop

1шт.

22

139071C1

PLATE

cover, LH

1шт.

22

139072C1

PLATE

cover, RH

1шт.

27094R1

SCREW

no. 10 x 7/8 PHC P/HDCR mach

2шт.

2754187R1

DECAL

PRODUCT GRAPHIC, seat adjustment

1шт.
