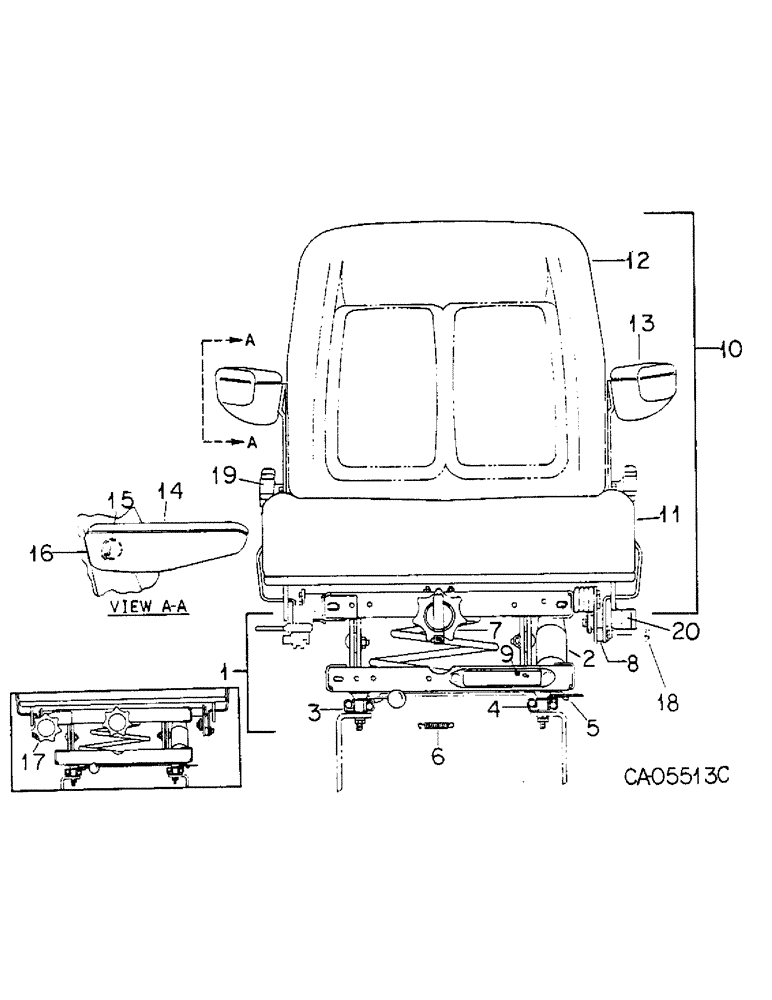

Запчасти Case IH HYDRO 186 (13-06) - SUPERSTRUCTURE, SEAT, DELUXE VERTICAL ACTING (05) - SUPERSTRUCTURE

SEAT & SUSPENSION ASSY, vertical acting, vinyl, not serviced separately furnish reference no. 1, 10 and 18

1шт.

SEAT & SUSPENSION ASSY, vertical acting, cloth, not serviced separately furnish reference no. 1, 10 and 18

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

9403371

CAP,37 Degree, 9/16"-18

3/8 tube, for MCV tee

1шт.

1

118580C91

SUPPORT

SUSPENSION ASSY, seat, replaces 71959C91

1шт.

Ref. item #1 see page 9-52 in 2594 catalog 8-1973 for parts breakdown. by bb 5/3/96

1шт.

2

64918C1

SHOCK ABSORBER

ABSORBER, shock

1шт.

3

139062C1

SLIDE

ASSY, w/handle, replaces 64919C1

1шт.

4

139064C1

SLIDE

ASSY, w/o handle, replaces 64919C1

1шт.

5

139065C1

ROD

latch connecting

1шт.

6

64926C1

SPRING

slide adjustment

2шт.

7

64920C1

KNOB, weight adjusting, hydro 186, Serial Range: -10054

1шт.

7

118578C1

BUTTON

KNOB, weight adjusting, hydro 186, Start Serial: 10055

1шт.

8

64922C1

KIT

BUSHING, suspension, tractors w/bolted scissor pivot joint suspension

1шт.

8

1250509C1

BUSHING

S, seat suspension, tractors w/weld scissor pivot joint suspension

1шт.

9

139061C1

INDICATOR

ride height

1шт.

10

118582C91

SEAT

ASSY, vertical acting, vinyl, replaces 64923C91

1шт.

10

118581C91

SEAT

ASSY, vertical acting, cloth, replaces 64923C91

1шт.

11

72937C1

CUSHION

seat, vinyl

1шт.

11

142885C1

CUSHION

seat, cloth

1шт.

12

142887C1

CUSHION

back, vinyl, replaces 72938C1

1шт.

12

142886C1

CUSHION

back, cloth, replaces 72938C1

1шт.

13

139069C1

ARMREST

REST, arm, LH, vinyl, replaces 64925C1

1шт.

13

143432C1

ARM

REST, arm, LH, cloth, replaces 118574C1

1шт.

14

139070C1

ARMREST

REST, arm, RH, vinyl, replaces 64925C1

1шт.

14

14.433C1

REST, arm, RH, cloth, replaces 118575C1

1шт.

15

139067C1

SCREW,1/4" - 20 x 0.38"

arm rest stop

2шт.

16

139071C1

PLATE

cover, LH

1шт.

16

139072C1

PLATE

cover, RH

1шт.

27049R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 5/8"

SCREW, no. 10-16 x 5/8 PHC P/HDCR tap

2шт.

17

64921C1

KNOB

height adjusting

1шт.

18

59793C1

FASTENER

push-on

8шт.

19

1267543C1

KNOB

ASSY, backrest adj

2шт.

20

1267545C1

LEVER

ASSY, seat tilt

1шт.
