Запчасти Case IH HYDRO 186 (13-05) - SUPERSTRUCTURE, PLATFORM SUPPORT (05) - SUPERSTRUCTURE

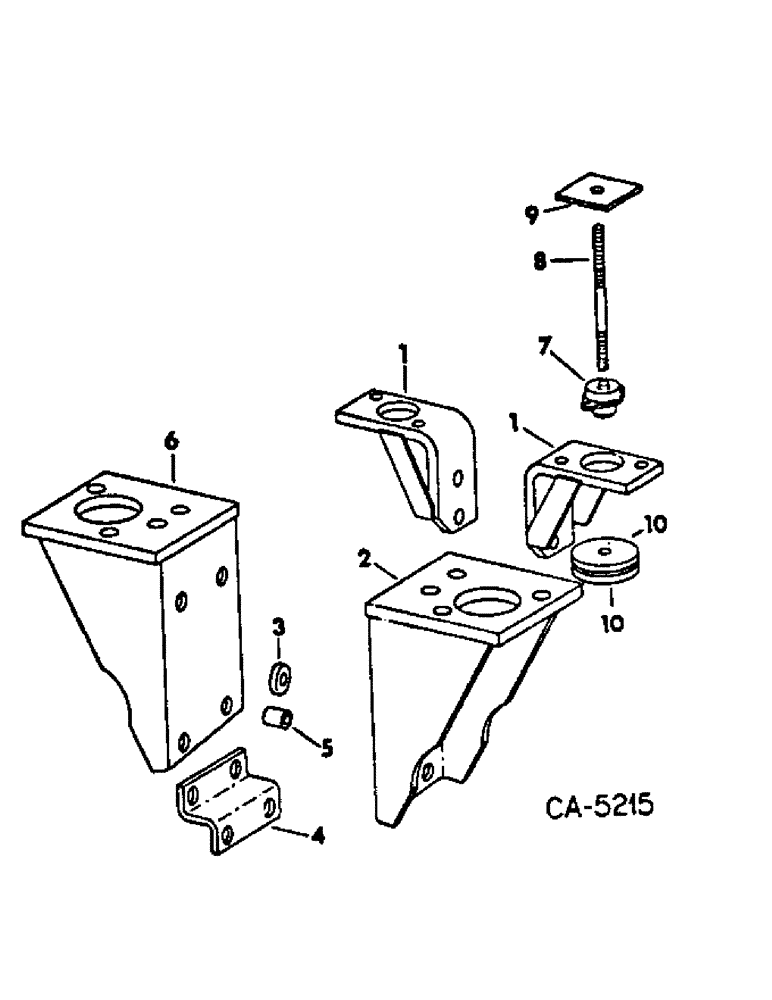

Схема запчастей Case IH HYDRO 186 - (13-05) - SUPERSTRUCTURE, PLATFORM SUPPORT (05) - SUPERSTRUCTURE
2
1
8
10
4
5
9
7
6
1
3
10

Артикул

Название

Примечание

Количество

1

117703C2

SUPPORT

ASSY, front, mount

2шт.

223450

BOLT,Hex, 3/4" - 10 x 2", Gr 8

SCREW, 3/4-10 x 2 hex-hd cap type 8

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

2

117711C2

BRACKET

ASSY, LH rear, mount

1шт.

20660R1

SCREW,Hex, 5/8"-11 x 1 5/8", G5, Full Thd

5/8-11 x 1-5/8 hex-hd cap type 8

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3

117759C2

WASHER

rear mount, spacer

4шт.

4

109324C1

SUPPORT

LH rear mount, bracket

2шт.

20660R1

SCREW,Hex, 5/8"-11 x 1 5/8", G5, Full Thd

5/8-11 x 1-5/8 hex-hd cap type 8

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

25528R1

NUT,5/8"-11, G8

5/8-11 hex. PHC type 8

4шт.

5

117758C1

SPACER

rear bracket support, H186, Serial Range: -11271

4шт.

5

117758C1

SPACER

rear bracket support, all H186 w/Hi-clear

4шт.

228000

BOLT,Hex, 5/8" - 11 x 4 3/4", Gr 8

2шт.

5

120432C1

SPACER

rear mount

2шт.

27352R1

SCREW,Hex, 5/8"-11 x 7 1/2", G8

BOLT, 5/8 x 7-1/2 pln type 8

2шт.

6

117712C1

BRACKET

ASSY, RH rear, mount

1шт.

20660R1

SCREW,Hex, 5/8"-11 x 1 5/8", G5, Full Thd

5/8-11 x 1-5/8 hex-hd cap type 8

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

7

117722C4

INSULATOR

ASSY, isolation, mount

4шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

102637

NUT,1/2"-13, G5

8шт.

8

117766C1

STUD

iso-mount mtg

4шт.

9

117737C1

PLATE

BAR, tapped, plate

4шт.

10

135783C1

SPACER

flat, washer

4шт.

117779C1

WASHER,13/16" x 1 3/4" x .219", HDN

13/16 x 1-3/4 x .219 znd

4шт.

280954

NUT,3/4"-10, G5

12шт.

Выбрано товаров: 28
