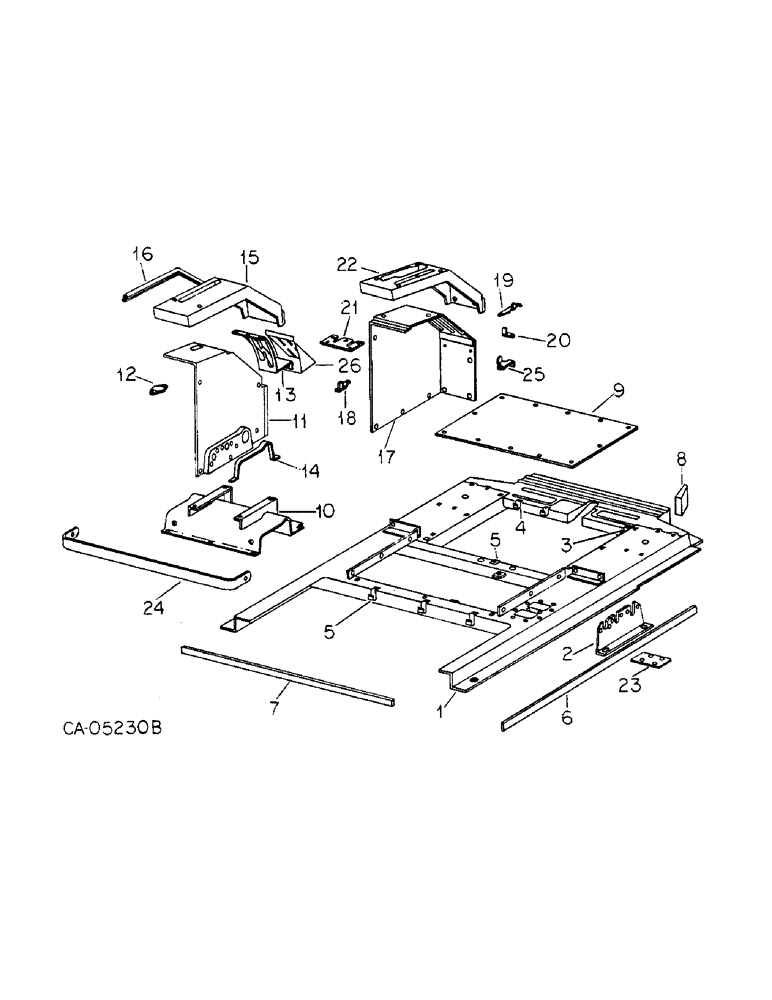

Запчасти Case IH HYDRO 186 (13-04) - SUPERSTRUCTURE, FENDERS AND OPERATORS PLATFORM (05) - SUPERSTRUCTURE

1

143566C1

FRAME

SUB FRAME ASSY, platform, replaces 104152C5

1шт.

143939C1

NUT

5/16-18 u-retainer

2шт.

2

139140C1

PLATE

shift linkage support, replaces 104158C2

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

2шт.

3

384557R1

CLIP

floodlight & cab wiring harness

1шт.

4

366460R1

CABLE CLIP

CLIP, cable harness

3шт.

5

104808C1

CLIP

main wiring harness

4шт.

104899C1

NUT

5/16-18 speed grip retainer

9шт.

131-625

NUT,Ret, 3/8"-16

3/8-16 speed grip retainer

5шт.

6

109256C1

SEALING STRIP

sub frame side, seal

2шт.

7

109257C1

SEALING STRIP

sub frame rear, seal

1шт.

8

104853C1

BRACKET

SEAL, sub frame front

2шт.

9

104165C2

PLATFORM

sub-frame

1шт.

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

12шт.

10

120019C1

COVER

ASSY, seat support

1шт.

104899C1

NUT

5/16-18 speed grip retainer

3шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

5шт.

11

104260C1

HOUSING

ASSY, LH, console

1шт.

11

104697C91

HOUSING ASSY, LH, console, tractor w/all wheel drive att

1шт.

379748R1

BUSHING

hub

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

5/16 x 3/4 PHC type 8

3шт.

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

2шт.

104329C1

NUT

shift panel mounting

5шт.

12

103926C1

PLATE

IPTO opening and trans speed cover

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1/2 hex-hd cap

4шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

13

148799C1

SECTOR ASSY, trans shift, LH, replaces 104365C2 by also ordering cover 148810C1

1шт.

104036C1

NUT

console cover mounting

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

4шт.

14

104264C1

SUPPORT

STRIP, seat support dust, seal

2шт.

15

1251586C1

COVER

SECTOR, w/insert, LH console, cover, Start Serial: 12000

1шт.

15

104569C2

SECTOR

LH console, cover, Serial Range: -11999

1шт.

15

1251617C1

SECTOR, LH console, cover, tractor w/all wheel drive, Start Serial: 12000

1шт.

15

104700C1

SECTOR, LH console, cover, tractor w/all wheel drive, Serial Range: -11999

1шт.

16

104316C1

SEAL

console cover edge

2шт.

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW, console cover mounting, No. 10 x 3/4

5шт.

17

104314C1

HOUSING ASSY, RH, console

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex-washer-hd

3шт.

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

2шт.

18

120091C1

LEVER

position control handle lockout

1шт.

19

104361C2

LEVER

neutral lockout

3шт.

20

104362C1

LEVER

float lockout

3шт.

104803C1

WASHER

lockout lever friction

7шт.

104804C1

RIVET,Pop, 3/16" x .575"

3/16 aluminum-pop

7шт.

21

104327C1

SUPPORT

RH console extension, plate

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 znd hex-hd cap

3шт.

22

104332C1

SECTOR

COVER, RH console

1шт.

103033C2

SCREW, console cover mounting

6шт.

23

143565C1

COVER

draft control opening, replaces 104519C1

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

24

120066C2

BAR

console tie

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8 type 5

2шт.

25

(Not used this application)

1шт.

26

148810C1

COVER

LH console, insert

1шт.
