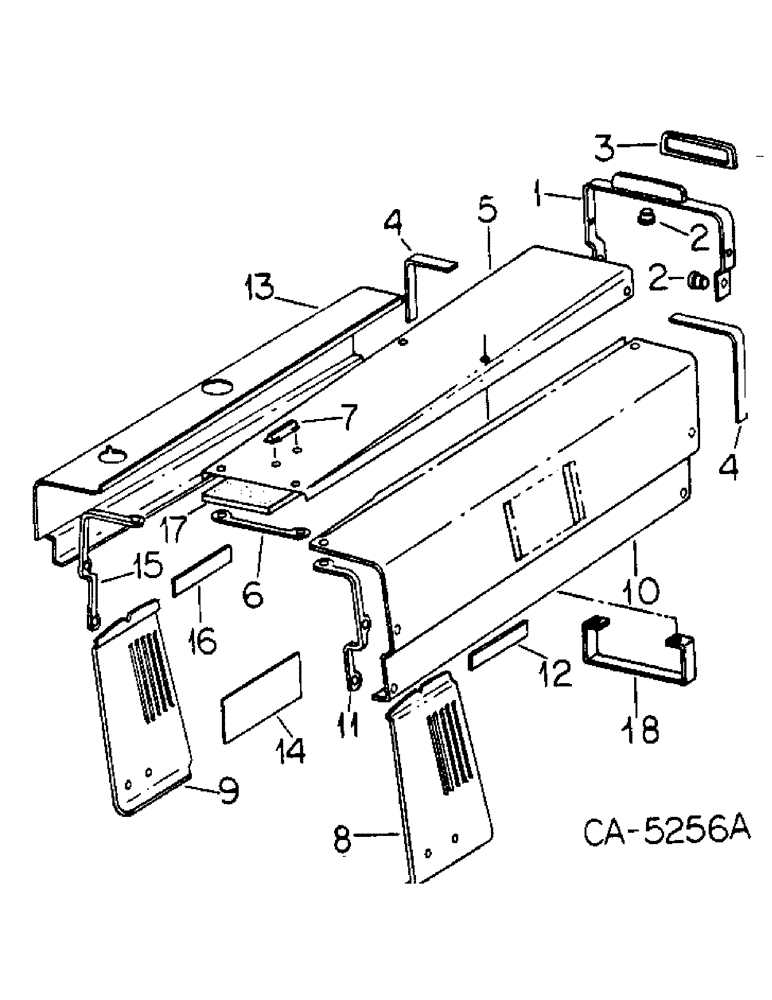

Запчасти Case IH HYDRO 186 (13-01) - SUPERSTRUCTURE, HOOD AND PANELS (05) - SUPERSTRUCTURE

1

103995C1

SUPPORT

ASSY, front hood

1шт.

459063R1

SPRING NUT

5/16-18 Tinnerman grip

8шт.

2

104809C1

ISOLATOR,27.94mm OD x 18.29mm L

front hood support assy mount

3шт.

142065

PLUG, 9/32 hole dia ble button

4шт.

536642R1

WASHER

.406 x 1 x .060

6шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

3

104735C1

SEAL

SEAL, front hood channel

1шт.

4

104736C1

SEAL

SEAL, front hood

2шт.

5

531040R2

SHEET

CHANNEL, front hood

1шт.

385157R11

SCREW, 5/16-18 x 5/8 hex-washer-hd cap

2шт.

120376

NUT,5/16"-18, G5

2шт.

373483R2

BOLT,Hex, 5/16" - 18

shoulder

2шт.

536652R1

WASHER,11.13mm ID x 28.57mm OD x 1.22mm Thk

7/16 x 1-1/8 x .048 C-Z

2шт.

536653R1

RUBBER WASHER,8.74mm ID x 26.98mm OD x 2.39mm Thk

rubber

2шт.

6

536649R1

GASKET

hood channel

1шт.

7

538005R1

ORNAMENTAL STRIP

ORNAMENT, hood

1шт.

445165

NUT,5/32", Push-on

spring

2шт.

8

531063R3

PANEL, SIDE

PANEL, radiator support LH

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 bevel washer

1шт.

9

531064R3

PANEL, SIDE

PANEL, radiator support RH

1шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16-18 hex-washer-hd cap

3шт.

10

531055R3

HOOD

LH frt

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex-washer-hd cap

3шт.

373483R2

BOLT,Hex, 5/16" - 18

shoulder

3шт.

536652R1

WASHER,11.13mm ID x 28.57mm OD x 1.22mm Thk

7/16 x 1-1/8 x .048 C-Z

3шт.

536653R1

RUBBER WASHER,8.74mm ID x 26.98mm OD x 2.39mm Thk

rubber

3шт.

11

536661R1

GASKET

LH frt hood

1шт.

12

SEAL, LH frt hood, furnish 6 in. from 4 ft length, 73215C1

1шт.

13

104229C1

HOOD

RH front

1шт.

14

538657R1

PROTECTOR

SHIELD, heat

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex-washer-hd cap

3шт.

373483R2

BOLT,Hex, 5/16" - 18

shoulder

3шт.

536652R1

WASHER,11.13mm ID x 28.57mm OD x 1.22mm Thk

7/16 x 1-1/8 x .048 C-Z

3шт.

536653R1

RUBBER WASHER,8.74mm ID x 26.98mm OD x 2.39mm Thk

rubber

3шт.

15

536662R1

GASKET

GASKET, RH frt hood

1шт.

16

SEAL, RH frt hood, furnish 6 in. from 4 ft lenght, 73215C1

1шт.

17

(Not used this application)

1шт.

18

(Not used this application)

1шт.
