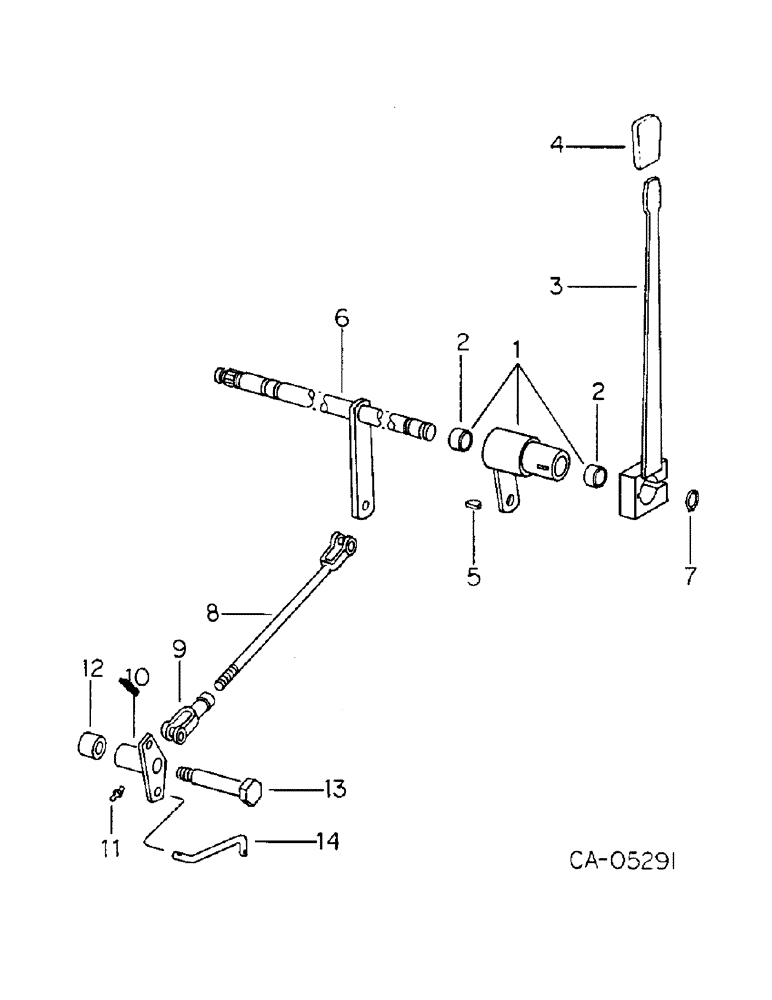

Запчасти Case IH HYDRO 186 (07-59) - DRIVE TRAIN, ALL WHEEL DRIVE CONTROLS, TRACTOR WITH ALL WHEEL DRIVE (04) - Drive Train

1

104685C91

SHAFT

HUB ASSY, trans rod actuating

1шт.

2

363768R1

BUSHING

hub, optional w/bushing 142373C1

2шт.

2

142373C1

BUSHING

optional w/bushing 363768R1

2шт.

3

104688C1

LEVER

control

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 pln type 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

1шт.

4

120197C2

KNOB

1шт.

5

124549

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

6

120230C1

SHAFT ASSY, IPTO handle pivot

1шт.

7

23090R1

SNAP RING,#75, Ext

Ring, Snap, , IPTO pivot shaft #75, Ext

2шт.

8

104693C1

ROD

ASSY, awd actuating

1шт.

9

116537

SPACER

CLEVIS, 7/16-20 adj short plain

1шт.

271505

BODY

7/16-20 hex, jam

1шт.

16618R1

CLEVIS PIN,7/16" x 1.190"

PIN, 7/16 x 1.19 pln-hard clevis

2шт.

61252H

WASHER

.469 x 3/4 x .105

4шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

10

104683C1

BELLCRANK ASSY, trans drive, Serial Range: -11079

1шт.

10

144274C1

LEVER

BELLCRANK ASSY, trans drive, Start Serial: 11080

1шт.

11

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive lube

1шт.

12

385822R1

SPACER, bellcrank

1шт.

13

385827R1

BOLT,Hex, 5/8" - 11 x 3 3/4"

bellcrank pivot

1шт.

14

385830R1

ROD, trans drive shifter, Serial Range: -11079

1шт.

14

144275C1

ROD

trans drive shifter, Start Serial: 11080

1шт.

496-21047

WASHER

15/32 x 59/64 x .065

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.
