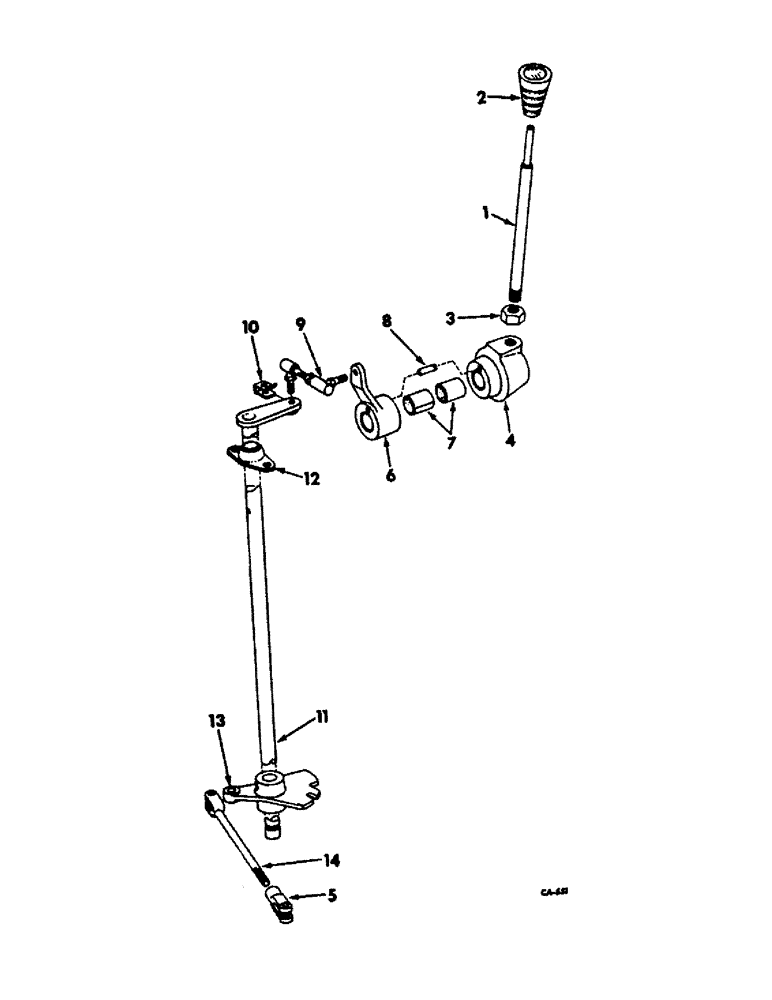

Запчасти Case IH HYDRO 100 (07-57) - DRIVE TRAIN, GEAR SHIFT LEVERS, RANGE TRANSMISSION, 966, 1066 HYDROSTATIC DRIVE & HYDRO 100 TRACTORS (04) - Drive Train

1

537106R21

HANDLE ASSY, range transmission

1шт.

2

537110R1

GRIP

1шт.

If dlr is looking for decal that goes inside p/n 537110r1 it is p/n 2753957r1. MJP.

1шт.

3

623077R1

NUT, range transmission handle

1шт.

4

406094R11

HUB

ASSY, range transmission handle

1шт.

178068

PLUG, 1-5/8 button

1шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

SCREW, 7/16-14 x 3/4 hex-hd cap

1шт.

PO10534

WASHER

13/32 x 1-1/4 x 11 ga

1шт.

5

213-316

ADJUSTABLE CLEVIS,3/8" - 24

CLEVIS, 3/8-24 x 2-3/16 short adjustable rod end

1шт.

140549

PIN

3/8 x 1-3/32 rod end

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

6

406095R2

LEVER

ASSY, range transmission acutating

1шт.

7

406835R1

BUSHING

BUSHING

2шт.

8

19967R1

DOWEL,1/4" x 1 1/4"

PIN, 1/4 x 1-1/4 dowel

1шт.

9

393354R91

BALL JOINT

LINK ASSY, upper range transmission selector

1шт.

10

79051R1

LOCK NUT,5/16"-24, G5

NUT, 5/16-24 hex lock, replaces the use of clip, 400720R1, nut, 1036025 and washer, 115548

1шт.

11

398173R1

SHAFT

ASSY, hi-lo selector drive

1шт.

617937R1

PIN,1/4" x 7/8", Coiled

1шт.

12

382508R91

BEARING ASSY,0.752" ID x 0.81"

BUSHING, hi-lo shift shaft

1шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16-18 x 5/8 CDP hex washer head cap

2шт.

13

528007R1

PLATE, neutral lock

1шт.

657196R1

PIN

1/4 x 2 slt spring (Replaces 659196R1)

1шт.

ref #13 (P/N 657196R1) - See #11 Figure 7-55

1шт.

14

528008R1

ROD

ASSY, hi-lo shaft link

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

140549

PIN

3/8 X 1-3/32 rod end

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.
