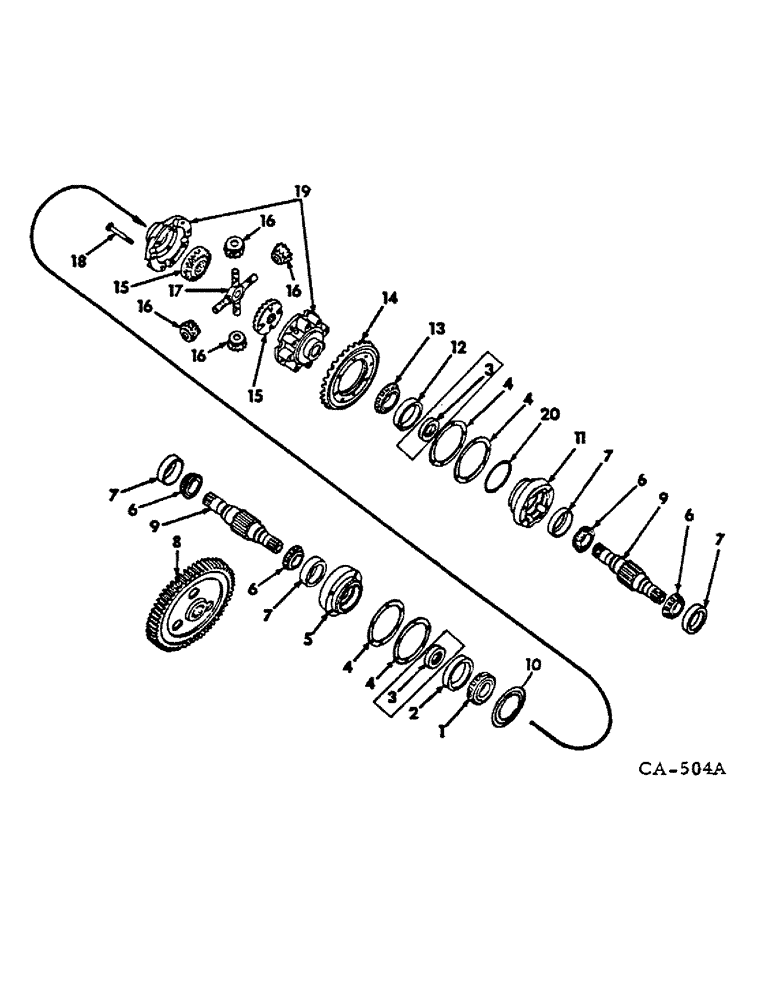

Запчасти Case IH HYDRO 100 (07-36) - DRIVE TRAIN, DIFFERENTIAL, 766, 966 AND HYDRO 100 TRACTORS (04) - Drive Train

1

ST2129

BEARING ASSY,77.79mm ID x 23.01mm W

differential roller LH cone

1шт.

2

ST988

BEARING CUP,121.44mm OD x 17.46mm W

BEARING, differential roller LH cup

1шт.

3

380200R92

OIL SEAL

differential roller bearing retainer oil, 766, Serial Range: -11820

1шт.

3

380200R92

OIL SEAL

differential roller bearing retainer oil, 766, Serial Range: 12161-12180

1шт.

3

380200R92

OIL SEAL

differential roller bearing retainer oil, 966, Serial Range: -20865

1шт.

3

380200R92

OIL SEAL

differential roller bearing retainer oil, 966, Serial Range: 21435-21512

1шт.

3

380200R92

OIL SEAL

differential roller bearing retainer oil, hydrostatic drive and hydro 100 tractors

1шт.

4

380202R1

SHIM

differential roller brg retainer .007

2шт.

4

380203R1

SHIM

differential roller brg retainer .012 (or as required)

4шт.

4

380204R1

SHIM

differential roller brg retainer .030

1шт.

4

380205R1

SHIM

differential roller brg retainer .004

1шт.

4

385155R1

SHIM

differential roller brg retainer .003

1шт.

5

400901R1

RETAINER

differential roller brg LH, 766, Serial Range: -11820

1шт.

5

400901R1

RETAINER

differential roller brg LH, 766, Serial Range: 12131-12180

1шт.

5

400901R1

RETAINER

differential roller brg LH, 966, Serial Range: -20685

1шт.

5

400901R1

RETAINER

differential roller brg LH, 966, Serial Range: 21435-21512

1шт.

5

68687C1

RETAINER

differential roller brg LH, 766, Serial Range: 11821-12160

1шт.

5

68687C1

RETAINER

differential roller brg LH, 766, Start Serial: 12181

1шт.

5

68687C1

RETAINER

differential roller brg LH, 966, Serial Range: 20686-21424

1шт.

5

68687C1

RETAINER

differential roller brg LH, 966, Start Serial: 21513

1шт.

5

406023R1

RETAINER

differential roller brg LH, all 966 hydrostatic drive and hydro 100 tractors

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

6

ST2007A

TAPERED BEARING,2.625" ID x 4.4375" OD x 1.1875"

BEARING ASSY, bull pinion & brake shaft cone

4шт.

7

13363D

TAPERED BEARING

BEARING, bull pinion and brake shaft cup

4шт.

8

380219R1

GEAR

bull - 73T, all 766 tractors and 966 hydrostatic drive tractors

1шт.

8

384075R1

GEAR

bull, 73T, 966 gear drive tractors and hydro 100 tractors

1шт.

9

400864R91

SHAFT, bull pinion & brake, 13T

2шт.

9

401276R1

SHAFT

bull pinion & brake, 13T, 766 diesel, 966 and hydro 100 hi-clear tractors

2шт.

10

68672C1

BAFFLE

LH differential brg oil, replaces 406041R1, 766, Serial Range: 11821-12160

1шт.

10

68672C1

BAFFLE

LH differential brg oil, replaces 406041R1, 766, Start Serial: 12181

1шт.

10

68672C1

BAFFLE

LH differential brg oil, replaces 406041R1, 966, Serial Range: 20686-21424

1шт.

10

68672C1

BAFFLE

LH differential brg oil, replaces 406041R1, 966, Start Serial: 21513

1шт.

11

400900R1

RETAINER

differential roller brg RH, 766, Serial Range: -11820

1шт.

11

400900R1

RETAINER

differential roller brg RH, 766, Serial Range: 12161-12180

1шт.

11

400900R1

RETAINER

differential roller brg RH, 966, Serial Range: -20685

1шт.

11

400900R1

RETAINER

differential roller brg RH, 966, Serial Range: 21435-21512

1шт.

11

400900R1

RETAINER

differential roller brg RH, 966 hydrostatic drive and hydro 100 tractors

1шт.

11

68686C1

RETAINER

differential roller brg RH, 766, Serial Range: 11821-12160

1шт.

11

68686C1

RETAINER

differential roller brg RH, 766, Start Serial: 12181

1шт.

11

68686C1

RETAINER

differential roller brg RH, 966, Serial Range: 20686-21424

1шт.

11

68686C1

RETAINER

differential roller brg RH, 966, Start Serial: 21513

1шт.

11

68679C1

RETAINER

differential roller brg RH, hi-clear tractors only, 766, Serial Range: 11821-12160

1шт.

11

68679C1

RETAINER

differential roller brg RH, hi-clear tractors only, 766, Start Serial: 12181

1шт.

11

68679C1

RETAINER

differential roller brg RH, hi-clear tractors only, 966, Serial Range: 20686-21424

1шт.

11

68679C1

RETAINER

differential roller brg RH, hi-clear tractors only, 966, Start Serial: 21513

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

12

ST990

TAPERED BEARING,3.0625" ID x 4.625" OD x 1"

BEARING, differential roller RH cup

1шт.

13

ST2133

BEARING ASSY,3.0625" ID x 4.625" OD x 1"

BEARING, differential roller RH cone

1шт.

14

380191R1

GEAR

drive bevel, 49T, 766 gasoline tractors

1шт.

14

395828R91

SET

BEVEL GEARS, matched set, order 120265C91, 766 diesel and 966 tractors, consists of (1) 388916R1 (NSS) (1) shaft 395013R1 (NSS), (1) tag 1084053R1 (NSS)

1шт.

14

68529C91

GEAR-SET

BEVEL GEARS, matched set, 766 diesel , 966 and hydro 100 hi-clear tractors, consists of (1) gear 380132R1 (NSS), (1) shaft 380160R1 (NSS), (1) tag 1084237R1 (NSS)

1шт.

15

380190R2

GEAR

differential bevel, 28 T

2шт.

16

361061R3

PINION

differential bevel, 15 T

4шт.

17

393637R2

DIFF. SPIDER

SPIDER, differential

1шт.

18

55972DA

BOLT,1/2" - 20 x 4 1/2"

differential case

12шт.

381368R1

NUT,Hex, 1/2" - 20, Gr 8

differenial case bolt

12шт.

19

380187R92

CASE

ASSY, differential, gear drive tractors, composed of case, 380188R2 (NSS) & case, 380189R2 (NSS)

1шт.

19

406019R2

DIFFERENTIAL

CASE ASSY, differential, 966 hydrostatic drive and hydro 100 tractors, composed of (12) bolt 55972DA, (1) case 380189R2 (NSS), (1) case 406020R2 (NSS), (1) gear 406021R1, (12) nut 381368R1

1шт.

19

528665R2

CASE ASSY, differential, 966 hydrostatic drive and hydro 100 hi-clear tractors, composed of (12) bolt 55972DA, (1) case 380189R2 (NSS), (1) case 406020R2 (NSS), (1) gear 528666R1, (12) nut 381368R1

1шт.

20

Not used in this application

1шт.

120265C91

GEAR-SET

PACKAGE, bevel gear and pinion

1шт.

Consists of (1) shaft, 13T (NSS), (1) bevel gear, 51T (NSS), (1) shim 380283R2, (2) shim 380284R2, (2) retainer 529464R1, (1) retainer 529464R1, (1) bearing 528684R91, (1) washer 359081R1, (1) nut 359082R2, (1) instruction (NSS)

1шт.
