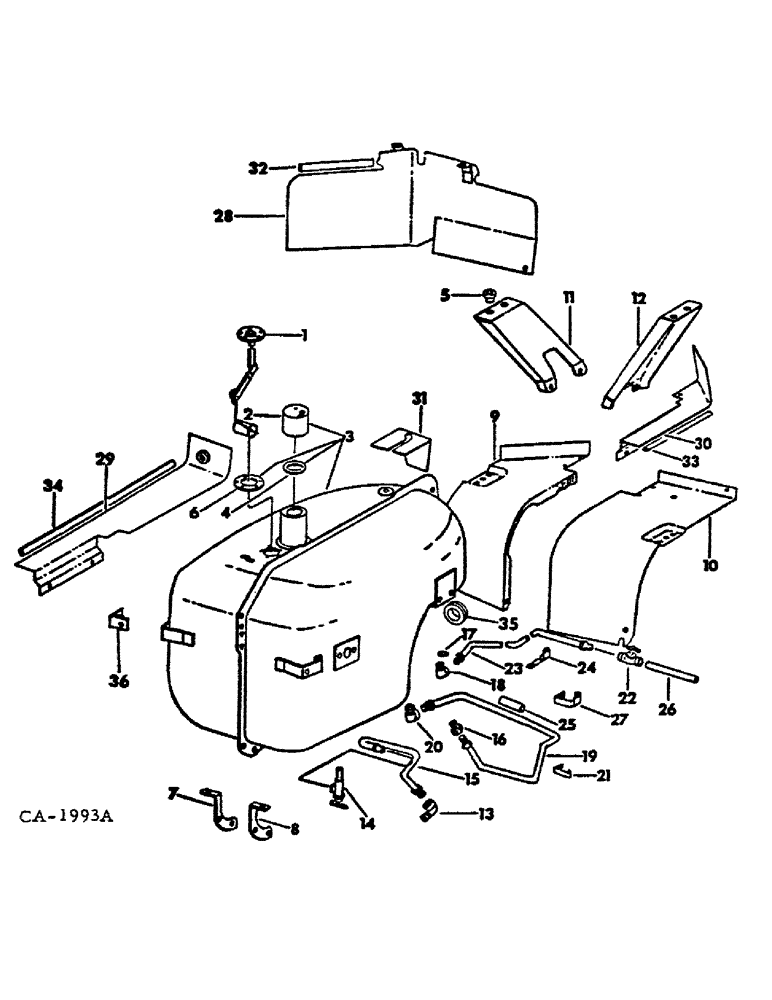

Запчасти Case IH HYDRO 100 (12-10) - POWER, FUEL TANK, SUPPORTS AND TUBING, 1066, 1466 AND HYDRO 100 TRACTORS Power

1

378427R93

GAUGE

SENDING UNIT, electric fuel gage

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, , Sending unit mounting Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

2

361910R91

PLUG

CAP W/GASKET, fuel tank filler

1шт.

213516

RIVET

1/8 x 1/8 C-Z ov-hd tubular

2шт.

3

381379R93

TANK

ASSY, fuel, composed of (2) bracket 531910R11, (1) cap 361910R91, (1) cover 369155R1, (1) gasket 369154R1, (1) plug 445686, (2) screw 179814, (5) screw 372627R91, (1) tank 381393R93 (NSS)

1шт.

regarding #3 381379R93, discontinued

1шт.

389117R91

NUT

5/16-18 floating cage

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

2шт.

4

23977DB

GASKET

fuel tank filler cap

1шт.

5

536629R1

BUSHING,10.03mm ID x 19.81mm OD x 18.29mm L

fuel tank support isomount

4шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

4шт.

536642R1

WASHER

13/32 x 1 x .060

4шт.

6

369154R1

GASKET

sending unit

1шт.

7

531296R1

BRACKET, fuel tank rear support LH

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

1шт.

8

531297R1

BRACKET, fuel tank rear support RH

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9

386117R51

SHIELD ASSY, lower LH heat

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

71072C1

GROMMET, oil cooler hose

1шт.

10

391712R21

SHIELD ASSY, lower RH heat

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

3шт.

11

531301R2

SUPPORT

fuel tank LH

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

12

531302R2

SUPPORT ASSY.

SUPPORT, fuel tank RH front

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

13

193004

ELBOW

5/8-18 90 deg inverted flared tube, tank to filter, filter end

1шт.

14

537978R1

LOCK VALVE

VALVE, fuel tank shut-off

1шт.

15

TUBE ASSY, fuel tank to fuel filter, use 17.25 in. of 3/8 OD copper tubing from 50 ft roll marked, 995063R1 and two nuts, 137399

1шт.

222-1004

TUBE NUT,5/8" - 18

NUT, 5/8-18 inverted flared tube

2шт.

16

442323

CONNECTOR, ELEC

CONNECTOR, 5/8-18 inverted flared tube, return line, engine end

1шт.

17

119933

ADAPTER,3/8" NPT Male x 1/8" NPT Fem

3/8 x 1/8 reducing pipe

1шт.

18

225810

ELBOW UNION

ELBOW, 7/16-24 x 90 deg inverted flared tube, tank to drain valve, tank end

1шт.

19

TUBE ASSY, fuel return line, use 50 in. of 3/8 OD copper tubing from 50 ft roll marked, 995063R1 and two nuts, 137399

1шт.

222-1004

TUBE NUT,5/8" - 18

NUT, 5/8-18 inverted flared tube

2шт.

20

144535R1

ELBOW

5/8-18 90 deg inverted flared tube, fuel return line

1шт.

21

363478R1

CLIP, fuel return line

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

22

385747R91

COCK

VALVE, fuel tank drain w/nut & sleeve

1шт.

23

TUBE ASSY, fuel tank drain long, use 22 in. of 1/4 OD copper tubing from 50 ft roll marked, 995061R1, one nut, 137397, one nut, 114627 and one sleeve, 114628

1шт.

NLS

NO LONGER SERVICED

7/16-24 inverted flared tube

1шт.

24

370740R1

CLAMP

CLIP, fuel tank water drain

1шт.

25

393068R1

HOSE

SLEEVE, return line

1шт.

26

TUBE ASSY, fuel tank drain short, use 7.0 in. of 1/4 OD copper tubing from 50 ft roll marked, 995061R1, one nut, 114627 and one sleeve, 114628

1шт.

27

399657R1

CLIP

fuel return line

1шт.

28

533332R2

SHIELD ASSY, upper heat

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

29

531303R1

EXTENSION ASSY, LH heat shield

1шт.

171700

SCREW, 8-32 x 1/4 slt-pan-hd tap

5шт.

30

531304R1

EXTENSION ASSY, RH heat shield

1шт.

171700

SCREW, 8-32 x 1/4 slt-pan hd tap

3шт.

31

533333R1

SHIELD, center heat

1шт.

171700

SCREW, 8-32 x 1/4 slt-pan-hd tap

4шт.

32

SEAL, heat shield upper, use 15 in. of seal, 536503R1

1шт.

33

536503R1

SEAL

heat shield LH side

1шт.

34

SEAL, heat shield RH side, use 25 in. of seal, 536503R1

1шт.

35

71072C1

GROMMET, rubber, oil cooler hose

1шт.

36

531310R11

BRACKET ASSY, assist handle mtg

2шт.

179814

SPACER

2шт.
