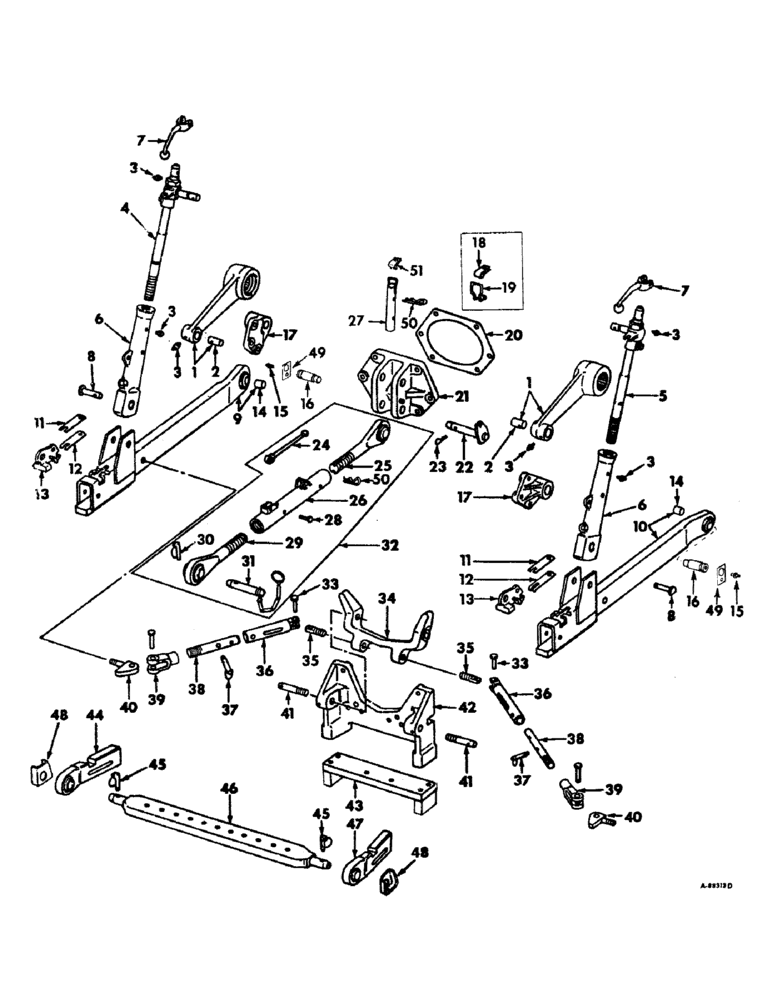

Запчасти Case IH 826 (09-08) - FRAME, THREE POINT HITCH (12) - FRAME

NSS

NOT SOLD SEPARAT

ATTACHMENT, three point hitch, 398362R92, Farmall tractors with draft control and draft sensing

1шт.

NSS

NOT SOLD SEPARAT

ATTACHMENT, three point hitch, 398364R91, International tractors with draft control and draft sensing

1шт.

537983R91

PARTS ACCESSORY, two point hitch to three point hitch conversion, Farmall tractors, consists of ref nos 3 through 16, 20, 21, 22, 23, 32 through 44, 47 through 51 and attaching hardware

1шт.

1

382156R11

ARM

ASSY, rockshaft

2шт.

2

383357R1

BUSHING,28.56mm ID x 33.38mm OD x 63.5mm L

rockshaft arm

2шт.

3

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub

6шт.

4

397095R2

SCREW

ASSY, LH leveling, Farmall tractors

1шт.

4

397095R2GV

SCREW

Value, LH Leveling Screw

1шт.

4

397093R2

SCREW ASSY, LH leveling, International tractors

1шт.

520175R1

CLIP

PIN, quick attachment cot.

1шт.

113020

SET SCREW,Sq Hd, 5/8"-11 x 1"

SCREW, 5/8 x 1 sq-hd. cone-pt set

1шт.

Q3842

WASHER, 1-5/32 x 1-3/4 x 11 ga.

1шт.

5

397096R2

SCREW

ASSY, RH leveling, Farmall tractors

1шт.

5

397096R2GV

SCREW

Value, RH Leveling Screw

1шт.

58

397094R2

SCREW

ASSY, RH leveling, International tractors

1шт.

520175R1

CLIP

PIN, quick-attachable cot.

1шт.

113020

SET SCREW,Sq Hd, 5/8"-11 x 1"

SCREW, 5/8 x 1 sq-hd. cone-pt. set

1шт.

Q3482

WASHER

1-5/32 x 1-3.4 x 11 ga.

1шт.

6

396752R1

HOUSING

leveling screw

2шт.

19791R1

PIN,1/4" x 1 1/8", Coiled

1/4" x 1-1/8", coiled

2шт.

7

523861R2

HANDLE

HANDLE, leveling screw

2шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

5/16" x 1-1/2", coiled

2шт.

8

392915R1

AXLE PIN

PIN, leveling screw housing

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

9

398249R91

LINK W/BUSHING, front section lower LH

1шт.

10

398250R91

LINK W/BUSHING, front section lower RH

1шт.

11

382193R1

SPRING

stiffener

2шт.

181331

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

SCREW, 5/15-24 x 1/2 hex-hd. cap

2шт.

12

382192R1

SPRING

lower link latch

2шт.

13

398373R1

LATCH

lower link

2шт.

14

383361R1

BUSHING

front lower link ball

2шт.

15

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight 1/4"-28 NPT x .54" lg

2шт.

16

406685R1

PIN,25.4mm OD x 101.6mm L

lower link

2шт.

17

384025R1

BRACKET

RACKET, lockout, not included in three-point hitch attachment

2шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd. cap

6шт.

18

378404R1

FASTENER

CLIP, upper link storage bracket, Farmall tractors w/serial no. 14798 and below, International tractors w/serial no. 7966 and below

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

19

378403R1

ELECTRICAL WIRE

BRACKET, upper link storage, Farmall tractors w/serial no. 14798 and below, International tractors w/serial no. 7696 and below

1шт.

20

383330R1

GASKET

draft control adj opening cover

1шт.

21

382212R11

BRACKET

ASSY, upper link

1шт.

20661R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

SCREW, 5/8-11 x 2 hex-hd. cap type 4

6шт.

22

382210R11

PIN

ASSY, upper link bracket

1шт.

23

520175R1

CLIP

PIN, quick attachable cot.

1шт.

24

392204R1

HANDLE

upper link turnbuckle

1шт.

25

393460R12

SCREW

ASSY, RH thread, part of link assy, 400907R92

1шт.

25

395034R1

SCREW

ASSY, RH thread, heavy duty, part of link assy, 404631R92

1шт.

19689R1

PIN,1/4" x 1 1/4", Coiled

1шт.

26

400908R1

TURNBUCKLE

ASSY, upper link, part of link assy, 400907R92

1шт.

26

404633R1

BUCKLE

TURNBUCKLE ASSY, upper link, heavy duty, part of link assy, 404631R92

1шт.

517843R1

COTTER PIN

PIN, quick attachable cot.

1шт.

27

393002R11

TUBE

ASSY, upper link storage, Farmall tractors w/serial no. 14799 and above, International tractors w/serial no. 7697 and above

1шт.

28

SB191

HEADED PIN,3/8" x 1 3/4"

PIN, 3/8 x 1-3/4 std-hd. upper link turnbuckle handle

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

29

393459R12

STRUT

SCREW ASSY, LH thread, part of link assy, 400907R92

1шт.

29

395968R2

SCREW

ASSY, LH thread, heavy duty, part of link assy, 404631R92

1шт.

19689R1

PIN,1/4" x 1 1/4", Coiled

1шт.

30

517758R91

SPLIT PIN/SAFETY PIN

PIN, implement pin retaining

1шт.

31

380563R91

PIN

ASSY, upper link implement

1шт.

32

400907R92

LINK

ASSY, upper, Farmall tractors w/serial no. 14798 and below, International tractors w/serial no. 7698 and below

1шт.

32

404631R92

TRUNNION

LINK ASSY, upper, Farmall tractors w/serial no. 14799 and above, International tractors w/serial no. 7697 and above, also heavy duty use on Farmall tractors w/serial no. 14798 and below, International tractors w/serial no. 7696 and below

1шт.

33

384852R1

AXLE PIN

PIN, stabilizer

4шт.

108638

COTTER PIN,3/16" x 1 1/8"

Pin, Split (Cotter), 3/16" x 1 1/8"

4шт.

34

382386R2

ARM

stabilizer control

1шт.

35

382390R1

BOLT (SPREADER),1 1/4" - 7 x 2.38"

EYEBOLT, stabilizer front

2шт.

36

406243R1

YOKE

lateral limiter

2шт.

37

383363R11

AXLE PIN

PIN ASSY, lockout

2шт.

520175R1

CLIP

PIN, quick attachable cot.

2шт.

38

386198R1

STUD

lateral limiter, Farmall tractors

2шт.

38

386199R1

STUD

lateral limiter, International tractors

2шт.

527374R1

AXLE PIN,12.7mm OD x 57.15mm L

PIN, 1/2 x 2-1/4 headed

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095

2шт.

364436R1

PIN,3/16" x 1", Coiled

2шт.

39

406244R1

YOKE

ASSY, limiter

2шт.

40

382397R1

BOLT,3/4" - 16 x 2", Drilled

EYEBOLT, stabilizer rear

2шт.

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 slt. hex

2шт.

32-822

COTTER PIN,1/8" x 1 3/8"

PIN, split (Cotter), 1/8" x 1-3/8"

2шт.

41

383362R2

AXLE PIN,25.4mm OD x 106.68mm L

SHAFT, stabilizer control arm

2шт.

616252R1

LOCK PIN,3/8" x 2 1/8", Slotted

PIN, 3/8" x 2-1/8", slotted

2шт.

427651

SLOTTED NUT,1"-14, G5

NUT, 1-14 slt. hex

2шт.

119179

PIN, 3/16 x 1-7/8 cot.

2шт.

42

400713R1

SUPPORT

drawbar

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

5/8-11 x 1-3/4 hex-hd cap

8шт.

43

400714R1

BAR

PLATE, drawbar support

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

SCREW, 3/4-10 x 2-1/4 hex-hd. cap

4шт.

44

398371R11

DRAG LINK

LINK ASSY, rear section lower LH

1шт.

20126R1

PIN,1/2" x 2", Coiled

1шт.

45

517758R91

SPLIT PIN/SAFETY PIN

PIN ASSY, drawbar

2шт.

46

374150R1

DRAWBAR

cross, not included in three-point hitch attachment

1шт.

47

398372R11

DRAG LINK

LINK ASSY, rear section lower RH

1шт.

20126R1

PIN,1/2" x 2", Coiled

1шт.

48

404787R1

SHIELD

linch pin

2шт.

49

406687R1

RETAINER

lower link pin

2шт.

179882

PIN

SCREW, 1/2-13 x 1-1/8 hex-hd. cap

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095

2шт.

50

517843R1

COTTER PIN

PIN, upper link quick attachable storage tube, Farmall tractors w/serial no. 14799 and above, International tractors w/serial no. 7697 and above

1шт.

51

393004R1

SUPPORT

CLIP, upper link storage bracket, Farmall tractors w/serial no. 14799 and above, International tractors w/serial no. 7697 and above

1шт.

381039R91

PARTS ACCESSORY, three point hitch cross drawbar, consists of (2) bracket 384025R1, (1) drawbar 374150R1, (6) screw 271562

1шт.

380579R91

BUSHING

PARTS ACCESSORY, bushing and pin adapter, for use w/category I implements when mounting on category II hitch, consists of

1шт.

380581R1

BUSHING

upper link category #1 short

1шт.

380582R1

BUSHING

upper link category #1 long

1шт.

380583R1

BUSHING

lower link category #1 short

2шт.

380584R1

BUSHING

lower link category #1 long

2шт.

380580R91

PIN

ASSY, upper link implement

1шт.

11484R

BUSHING

SPACER, lower long bushing

2шт.
