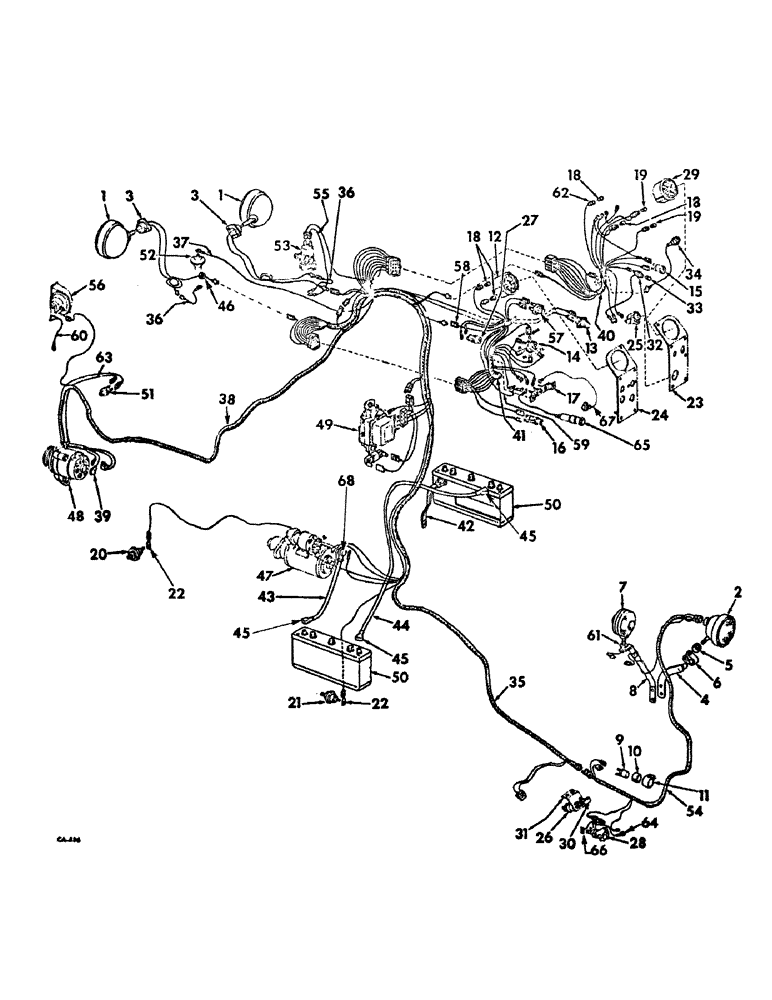

Запчасти Case IH 826 (08-11) - ELECTRICAL, STARTING AND LIGHTING, FARMALL DIESEL TRACTORS (06) - ELECTRICAL

405883R91

PARTS ACCESSORY, electric breakaway connector socket, tractors not equipped w/deluxe fenders, consists of ref. nos. 28, 64 and 66

1шт.

405884R91

PARTS ACCESSORY, electric breakaway connector socket, tractors equipped w/deluxe fenders, consists of ref. nos. 28, 64 and 66

1шт.

1

387728R91

LIGHT

ASSY, sealed beam head, only serviceable item is lamp, sealed beam unit, 371443R91

2шт.

120371

NUT,1/2"-20, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120396

WASHER

17/32 x 1-1/16 x .095 C-Z

2шт.

2

387729R91

LIGHT

AND TAIL LIGHT ASSY, sealed beam combination rear, only serviceable items are lamp, 455490 and sealed beam unit, 371461R91

1шт.

102637

NUT,1/2"-13, G5

1шт.

3

382406R1

SUPPORT

BRACKET, headlight mounting

2шт.

113911

SCREW, 5/16-18 x 1/2 slt-f-hd. mach

4шт.

4

397479R11

SUPPORT

ASSY, rear light bracket

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd. cap

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .060) 3/8"

2шт.

5

365503R1

SPACER

combination rear light

1шт.

6

350920R1

CLAMP

combination rear light

1шт.

7

394129R91

LIGHT

ASSY, flashing safety warning, only serviceable items are lamp, 9417866 and lens, amber 899280R1 or lens, red 899279R1, dietz

1шт.

120371

NUT,1/2"-20, G5

1шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

1/2 C-Z ext-tooth lock

1шт.

8

394135R1

BRACKET, flashing warning light mounting

1шт.

9

394132R91

FLASHER UNIT

FLASHER, safety warning light

1шт.

10

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

11

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

12

NSS

NOT SOLD SEPARAT

GAUGE ASSY, cluster, refer to instrument panel and gauges listing, section 11

1шт.

13

NSS

NOT SOLD SEPARAT

SWITCH ASSY, ether push button, refer to engine controls and switches listing, this section

1шт.

14

NSS

NOT SOLD SEPARAT

SWITCH ASSY, lighting, refer to engine controls and switches listing, this section

1шт.

15

NSS

NOT SOLD SEPARAT

SWITCH ASSY, key, refer to engine controls and switches listing, this section

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING ASSY, fuse, refer to engine controls and switches listing, this section

1шт.

17

NSS

NOT SOLD SEPARAT

BLOCK ASSY, junction, refer to engine controls and switches listing, this section

1шт.

18

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12-volt, tachometer and gauge cluster

4шт.

19

9412348

BULB,C2B, #257, 14V

LAMP, no. 257 12-volt, oil and amp tellite flasher

2шт.

20

NSS

NOT SOLD SEPARAT

SWITCH ASSY, engine oil pressure, refer to eng, 5 parts catalog

1шт.

21

376855R92

SWITCH

ASSY, transmission oil pressure, gear drive tractors

1шт.

21

530034R2

SWITCH

transmission oil temperature, hydrostatic drive tractors

1шт.

22

365501R1

TERMINAL CONNECTOR

TERMINAL, transmission oil switch angle, hydrostatic drive tractors

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

22

384396R1

SPADE TERMINAL,Male

TERMINAL, transmission oil switch str., hydrostatic drive tractors

1шт.

22

384396R1

SPADE TERMINAL,Male

TERMINAL, engine oil pressure and transmission oil switch str., gear drive tractors

2шт.

23

NSS

NOT SOLD SEPARAT

PANEL ASSY, instrument RH, refer to instrument panel and gauges listing, section 11

1шт.

24

NSS

NOT SOLD SEPARAT

PANEL ASSY, instrument LH, refer to instrument panel and gauges listing, section 11

1шт.

25

NSS

NOT SOLD SEPARAT

INDICATOR ASSY, electric air cleaner, refer to instrument panel and gauges listing, section 11

1шт.

26

382728R91

SWITCH

safety starting, Farmall tractors w/serial no. 12930 and below

1шт.

26

532682R1

SWITCH

ASSY, neutral starting, Farmall tractors w/serial no. 12931 and above

1шт.

27

NSS

NOT SOLD SEPARAT

SWITCH ASSY, horn, refer to engine controls and switches listing, this section

1шт.

28

362002R92

SOCKET

ASSY, electrical breakaway

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 znd hex-hd. cap, 2 used w/deluxe flat top fenders

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

64022H

SCREW, 8/32 x 5/16 C-Z slt-fil-hd. mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

29

NSS

NOT SOLD SEPARAT

SPEEDOMETER TACHOMETER ASSY, refer to instrument panel and gauges listing, section 11

1шт.

30

406126R1

ROD

safety switch, hydrostatic drive tractors, serial no. 12930 and below

1шт.

30

534410R1

ROD, starting switch, hydrostatic drive tractors, serial no. 12931 and above

1шт.

30

384046R1

STEM

ROD, safety switch, gear drive tractors, serial no. 12930 and below

1шт.

30

534409R1

ROD

starting switch, gear drive tractors, serial no. 12931 and above

1шт.

102776H

CLEVIS PIN,1/4" x 11/16"

PIN, CLEVIS, , Rod end 1/4" x 11/16"

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cot.

1шт.

16558R1

WASHER

17/64 x 5/8 x .065

1шт.

31

406125R1

BRACKET, safety starting switch, hydrostatic drive tractors

1шт.

31

384045R1

SUPPORT

BRACKET, safety starting switch, gear drive tractors

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk. crg

1шт.

102635

NUT,3/8"-16, G5

1шт.

32

392441R91

LIGHT

ASSY, transmission oil pressure or temperature

1шт.

33

9412348

BULB,C2B, #257, 14V

LAMP, no. 257 12 volt, transmission oil pressure, gear drive tractors

1шт.

33

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12 volt, transmission temperature warning, hydrostatic drive tractors

1шт.

34

397946R1

LIGHT

ASSY, gear selector, gear drive tractors

1шт.

35

405292R2

HARNESS

ASSY, rear main cable

1шт.

399470R1

BOOT

INSULATOR, terminal cover bolt, on cranking motor, S terminal

1шт.

36

405209R1

CABLE

ASSY, headlight to ground junction

2шт.

37

404400R1

CABLE

ASSY, fuel gauge sending unit to multiple connector

1шт.

38

405278R1

HARNESS

ASSY, front main cable

1шт.

39

399470R1

BOOT

INSULATOR, terminal cover boot

1шт.

40

406121R1

HARNESS ASSY, panel cable LH, hydrostatic drive tractors

1шт.

40

405274R1

HARNESS

ASSY, panel cable LH, gear drive tractors

1шт.

41

405275R2

HARNESS

ASSY, panel cable RH

1шт.

41

405276R1

HARNESS ASSY, panel cable RH, tractors w/o fuel gauge

1шт.

42

378760R91

CABLE

STRAP ASSY, Serial Range: battery-ground

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

43

383726R91

CABLE

ASSY, battery to solenoid switch

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

44

383617R91

CABLE

ASSY, Serial Range: battery-battery

1шт.

356062R91

BOLT

ASSY, terminal

2шт.

45

383619R1

COVER

battery cable terminal large

3шт.

46

376359R1

GROMMET

LH headlight cable

1шт.

47

NSS

NOT SOLD SEPARAT

CRANKING MOTOR, refer to cranking motor listing, this section

1шт.

48

NSS

NOT SOLD SEPARAT

ALTERNATOR GENERATOR, refer to alternator generator listing, this section

1шт.

49

NSS

NOT SOLD SEPARAT

VOLTAGE REGULATOR, refer to voltage regulator listing, this section

1шт.

50

392244R91

BATTERY, Prestolite 1303X, 6 volt, hydrostatic drive tractors

2шт.

50

406107R1

BATTERY, Prestolite 1225X, 6 volt, gear drive tractors

2шт.

50

392240R91

BATTERY, Prestolite 1227X, 6 volt, heavy duty, gear drive tractors

2шт.

51

NSS

NOT SOLD SEPARAT

SWITCH ASSY, electric air cleaner, refer to air cleaner listing, this section

1шт.

52

NSS

NOT SOLD SEPARAT

SENDING UNIT, fuel gauge, refer to fuel tanks, supports and piping listing, section 12

1шт.

53

NSS

NOT SOLD SEPARAT

SOLENOID, ether starting, refer to ether starting listing, section 12

1шт.

54

405880R1

HARNESS

ASSY, combination and flashing light, tractors w/o breakaway connector

1шт.

54

403302R1

HARNESS ASSY, combination and flashing light, tractors with breakaway connector

1шт.

55

405239R1

CABLE

ASSY, ether starting

1шт.

56

NSS

NOT SOLD SEPARAT

ELECTRIC HORN, refer to electric horn listing, this section

1шт.

57

NSS

NOT SOLD SEPARAT

SWITCH ASSY, push button, refer to engine controls and switches listing, this section

1шт.

58

405221R1

CABLE

ASSY, horn switch to harness junction

1шт.

59

405212R1

HARNESS

CABLE ASSY, horn switch to junction block

1шт.

60

405219R1

CABLE

ASSY, Serial Range: horn-ground

1шт.

61

394262R1

WASHER

GASKET, flashing safety warning light

1шт.

62

383620R91

ELECTRICAL WIRE

SOCKET ASSY, tachometer light

2шт.

63

405211R1

CABLE PULLING GRIP

CABLE ASSY, vacuum switch to ground, hydrostatic drive tractors

1шт.

64

404395R1

CABLE

ASSY, breakaway connector, Serial Range: socket-ground

1шт.

65

NSS

NOT SOLD SEPARAT

CIGARETTE LIGHTER, refer to engine controls and switches listing, this section

1шт.

66

405889R1

CABLE PULLING GRIP

CABLE ASSY, harness junction to breakaway connector socket, tractors w/o deluxe fenders

1шт.

395228R1

CABLE CLIP

CLIP, breakaway connector cable

1шт.

66

405877R1

HARNESS

CABLE ASSY, harness junction to breakaway connector socket, tractors w/deluxe fenders

1шт.

67

406127R1

LAMP BASE

LIGHT ASSY, hydrostatic control

1шт.

68

364910R1

BOOT

COVER BATTERY TERMINAL SMALL

1шт.

405218R1

CABLE ASSY, flashing warning light, tractors with protective frame and without breakaway connector

1шт.

403301R1

CABLE ASSY, flasher to light, tractors with protective frame and with breakaway connector

1шт.
