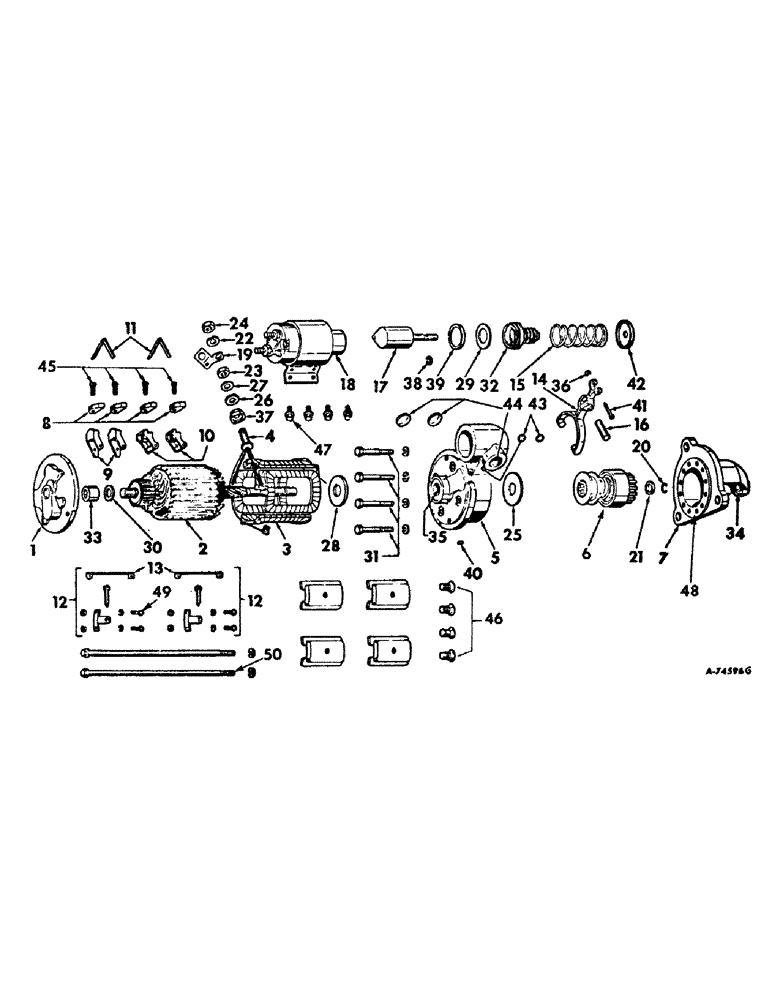

Запчасти Case IH 826 (08-06) - ELECTRICAL, CRANKING MOTOR, DELCO REMY, DIESEL ENGINE TRACTORS (06) - ELECTRICAL
№
Артикул
Название
Примечание
Количество
1113685
MOTOR HOUSING
MOTOR ASSY, cranking, 406132R91, 12 volt, hydrostatic drive tractors
1шт.
1113197
SPARE PART MOTOR ASSY, cranking, 395758R91, 12 volt, gear drive tractors
1шт.
104205A1R
REMAN-STARTER
Remanufactured Starter
1шт.
104205A1C
CORE-STARTER
Return Number
1шт.
104208A1R
REMAN-STARTER
Remanufactured Starter
1шт.
104208A1C
CORE-STARTER
Return Number
1шт.
179840
BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5
SCREW, 3/8-16 x 1-1/8 hex-hd. cap
3шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
1
1945617
HOLDER
FRAME, commutator end
1шт.
1916439
WICK
WICK, commutator end
1шт.
810819
PLUG
PLUG, end
1шт.
2
1959458
ARMATURE
ARMATURE, used w/motor 1113685
1шт.
3
1959456
COIL
COIL ASSY, field, 4 coils, used w/motor 1113685
1шт.
3
1945612
COIL ASSY.
COIL ASSY, field, 4 coils, used w/motor 1113197
1шт.
1914873
INSULATOR
INSULATION, field coil
2шт.
4
1933879
TERMINAL CONNECTOR
STUD, terminal
1шт.
5
1942241
HOUSING
HOUSING ASSY, lever, composed of (1) bushing 1933999, (2) plug 9411375, (1) plug 9419572, (1) wick 1947350
1шт.
6
1948877
DRIVE
MOTOR ASSY, drive
1шт.
7
801062
HOUSING, drive, used w/motor 1113685
1шт.
7
1967333
HEAD (CYLINDER)
HOUSING, drive, used w/motor 1113197
1шт.
1916439
WICK
WICK, drive end
1шт.
8
1906987
BRUSH
BRUSH
4шт.
9
1940477
HOLDER
HOLDER, brush ground
2шт.
10
1950546
HOLDER
HOLDER, brush insulated
2шт.
11
1945620
SPRING
SPRING, brush
2шт.
12
1945923
PACKAGE
PACKAGE, brush support
2шт.
13
1930694
CABLE
LEAD, ground
2шт.
14
1942245
LEVER
LEVER ASSY, shift
1шт.
15
1948521
SPRING
SPRING, shift lever
1шт.
16
1942255
STUD
SHAFT, shift lever
1шт.
17
1942250
PLUNGER
PLUNGER
1шт.
18
1115510
SOLENOID SWITCH
SWITCH ASSY, solenoid
1шт.
120614
NUT,Hex, #10 - 32
NUT, #10-32
1шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
1шт.
1917084
SCREW
SCREW, switch
4шт.
19
1946394
CONNECTOR, ELEC
CONNECTOR CONNECTOR, switch, used w/motor 1113685
1шт.
19
1942249
CONNECTOR, ELEC
CONNECTOR CONNECTOR, switch, used w/motor 1113197
1шт.
20
1928022
SNAP RING
RING, pinion stop retainer
1шт.
21
1928021
COLLAR
COLLAR, pinion stop
1шт.
22
110730
LOCK WASHER
WASHER, terminal stud lock
1шт.
23
805258
NUT
NUT, terminal stud, 5/32 in. thick
1шт.
24
124829
JAM NUT,Hex, 3/8" - 16, Gr 5
NUT, , Terminal stud outer Jam, 3/8"-16, G5
1шт.
25
R15043
WASHER
WASHER, brake, between lever housing and motor drive
1шт.
26
1950029
WASHER
WASHER, insulating terminal stud
1шт.
27
9421425
WASHER
WASHER, terminal stud, used w/motor 1113685
1шт.
27
805790
WASHER
WASHER, terminal stud, used w/motor 1113197
1шт.
28
1946395
WASHER
WASHER, space, used w/motor 1113685
1шт.
28
NLS
NO LONGER SERVICED
WASHER, space, used w/motor 1113197
1шт.
29
1942259
WASHER
WASHER, retainer spring
1шт.
30
1914842
WASHER
WASHER, commutator end space
1шт.
31
122077
PLUG
drive housing attaching
4шт.
32
1949618
BOOT
BOOT, plunger, used w/motor 1113685
1шт.
32
1942257
BOOT
BOOT, plunger, used w/motor 1113197
1шт.
33
1872678
BUSHING
BUSHING, commutator end
1шт.
34
1955994
BUSHING
BUSHING, drive end
1шт.
35
1933999
BUSHING
BUSHING, lever housing
1шт.
36
1938376
RING, SNAP
RING SNAP RING, lever attaching pin snap
1шт.
37
1931783
INSULATOR
BUSHING, insulating terminal stud
1шт.
38
9415235
RING, SNAP
RING SNAP RING, spring retainer snap
1шт.
39
1942256
RETAINER
RETAINER, spring 1-13/64 in. hole
1шт.
40
1947350
WICK
WICK, lever housing
1шт.
41
1942253
PIN
PIN, lever attaching
1шт.
42
1942282
PIN
RETAINER, spring, 13/32 in. hole
1шт.
43
9419572
PLUG
PLUG, 5/8 lever housing expansion
2шт.
44
9411375
PLUG
PLUG, 1-3/16 lever housing and armature
2шт.
45
1959514
SCREW
SCREW, brush attaching
4шт.
46
1968396
SCREW
SCREW, pole shoe
8шт.
47
NSS
NOT SOLD SEPARAT
(Not used in this application)
1шт.
48
NSS
NOT SOLD SEPARAT
(Not used in this application)
1шт.
49
NSS
NOT SOLD SEPARAT
(Not used in this application)
1шт.
50
809763
BOLT
BOLT, commutator end thru, used with motor, 1113197
2шт.
Выбрано товаров: 73
