Запчасти Case IH 826 (01-03) - PARTS ACCESSORIES AND ATTACHMENTS, PROTECTIVE FRAME Accessories & Attachments / Miscellaneous

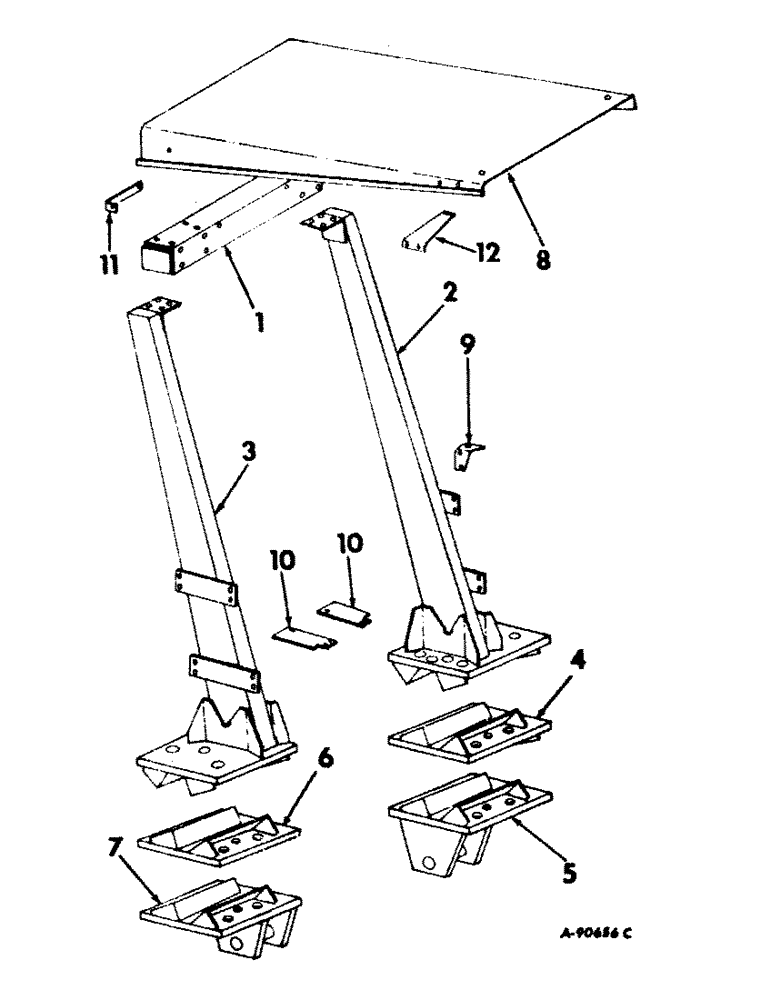

Схема запчастей Case IH 826 - (01-03) - PARTS ACCESSORIES AND ATTACHMENTS, PROTECTIVE FRAME Accessories & Attachments / Miscellaneous
10
12
11
6
8
2
3
1
9
4
5
7
10

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

ATTACHMENT, protective frame, 03420R91, Farmall tractors w/o vertically adjustable drawbar

1шт.

NSS

NOT SOLD SEPARAT

ATTACHMENT, protective frame, 403890R91, Farmall tractors w/ vertically adjustable drawbar

1шт.

NSS

NOT SOLD SEPARAT

ATTACHMENT, protective frame, 528960R91, International tractors without vertically adjustable drawbar

1шт.

NSS

NOT SOLD SEPARAT

ATTACHMENT, protective frame, 528961R91, International tractors with vertically adjustable drawbar

1шт.

1

402082R1

BAR ASSY, frame cross, Farmall tractors

1шт.

1

528962R1

BAR ASSY, frame cross, International tractors

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

2

402087R1

FRAME ASSY, safety LH, Farmall tractors

1шт.

2

528966R1

FRAME ASSY, safety LH, International tractors

1шт.

3

402088R2

FRAME ASSY, safety RH, Farmall tractors

1шт.

3

528967R1

FRAME ASSY, International tractors

1шт.

4

402098R1

BOTTOM ASSY, frame bar LH, for tractors not equipped with vertically adjustable drawbar

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

5шт.

22467R1

BOLT,Hex, 7/8" - 9 x 10", Gr 5

SCREW, 7/8-9 x 10 hex-hd. cap

1шт.

22468R1

BOLT,Hex, 7/8" - 9 x 11", Gr 5

SCREW, 7/8-9 x 11 hex-hd. cap

5шт.

5

402101R1

BOTTOM ASSY, frame bar LH, for tractors equipped with vertically adjustable drawbar

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

5шт.

22467R1

BOLT,Hex, 7/8" - 9 x 10", Gr 5

SCREW, 7/8-9 x 10 hex-hd. cap

1шт.

22468R1

BOLT,Hex, 7/8" - 9 x 11", Gr 5

SCREW, 7/8-9 x 11 hex-hd. cap

5шт.

6

402097R1

BOTTOM ASSY, frame bar RH, for tractors not equipped with vertically adjustable drawbar

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

5шт.

22467R1

BOLT,Hex, 7/8" - 9 x 10", Gr 5

SCREW, 7/8-9 x 10 hex-hd. cap

1шт.

22468R1

BOLT,Hex, 7/8" - 9 x 11", Gr 5

SCREW, 7/8-9 x 11 hex-hd. cap

5шт.

7

402100R1

BOTTOM ASSY, frame bar RH, for tractors equipped with vertically adjustable drawbar

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

5шт.

22467R1

BOLT,Hex, 7/8" - 9 x 10", Gr 5

SCREW, 7/8-9 x 10 hex-hd. cap

1шт.

22468R1

BOLT,Hex, 7/8" - 9 x 11", Gr 5

SCREW, 7/8-9 x 11 hex-hd. cap

5шт.

8

402105R1

TOP ASSY W/COATING

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

10шт.

189295

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

SCREW, 3/8-16 x 4-1/2 hex-hd. cap

3шт.

433163

BOLT,Hex, 1/2" - 13 x 5", Gr 5

SCREW, 1/2-13 x 5 C-Z hex-hd. cap

8шт.

21395R1

SCREW,Hex, 1/2"-13 x 5 1/4", G5

1/2-13 x 5-1/4 znd hex-hd. cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

10шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

3шт.

9

402111R1

SUPPORT, flasher light bracket, Farmall tractors w/o deluxe fenders

1шт.

102637

NUT,1/2"-13, G5

2шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

402112R1

PLATE, platform filler, Farmall tractors

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8-16 x 3/4 znd sq-nk crg.

6шт.

102635

NUT,3/8"-16, G5

6шт.

11

406115R1

BRACKET, stabilizer rear

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd. cap

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga. C-Z

2шт.

12

406116R1

BRACKET, stabilizer LH front

1шт.

12

406117R1

BRACKET, stabilizer RH front

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd. cap

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga. C-Z

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

10шт.

348129C91

SAFETY BELT

1шт.

404277R1

BELT ASSY, seat retainer, 20.2 in.

1шт.

404228R1

SAFETY BELT, Seat retainer, 25.7 in.

1шт.

271684C2

BOLT, seat belt eye

2шт.

456939

NUT,7/16"-20, G8

7/16-20 type 4 hex

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

402132R1

BAR, seat belt anchor, Farmall tractors

2шт.

403301R1

CABLE ASSY, flasher to light, Farmall tractors w/electrical breakaway connector socket

1шт.

405218R1

CABLE ASSY, flashing warning light, Farmall tractors w/o electrical breakaway connector socket

1шт.

406122R1

CLIP, cable harness, Farmall tractors

2шт.

403302R1

HARNESS ASSY, combination light and breakaway connector, Farmall tractors w/electrical breakaway connector socket

1шт.

405880R1

HARNESS

ASSY, combination and flashing light, Farmall tractors w/o electrical breakaway connector socket

1шт.

2753699R1

PRODUCT GRAPHIC, seat belt

1шт.

Выбрано товаров: 69
