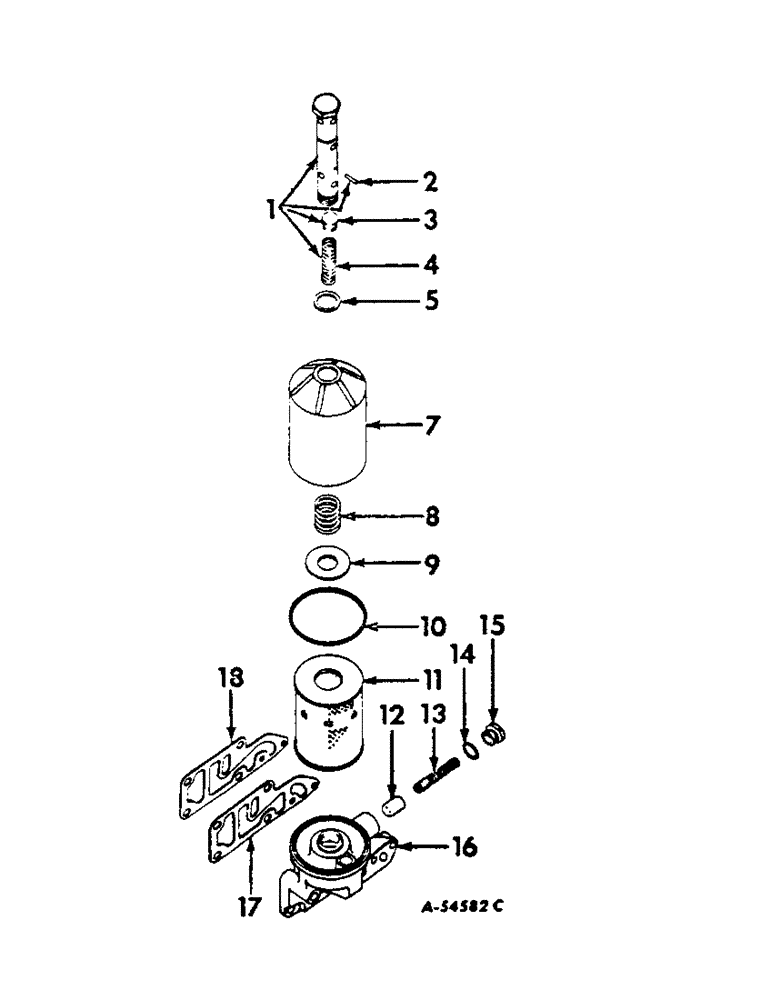

Запчасти Case IH 806 (C-16) - CARBURETED ENGINE, LUBRICATING OIL FILTER, CARBURETED ENGINE TRACTORS C301 501 TO 2182 (01) - ENGINE

371236R91

FILTER ASSY, oil, less ref 18

1шт.

1

304005R91

FILTER CARTRIDGE

TUBE ASSY, center

1шт.

2

17141R1

LOCK PIN,5/32" x 1", Slotted

Pin, , by-pass valve & spring retainer 5/32" x 1", Slotted

1шт.

103364

PIN

1/16 x 1-1/4 cotter

1шт.

3

304008R1

VALVE

by-pass

1шт.

4

304009R1

VALVE SPRING

SPRING, by-pass valve

1шт.

5

320273R91

GASKET

PACKAGE, center tube gasket, consists of gasket and pin 103364

1шт.

6

(Not used)

1шт.

7

303998R1

BODY

CASE, oil filter

1шт.

8

304011R1

SPRING

oil filter element retaining

1шт.

9

304010R1

WASHER

oil filter element retaining spring

1шт.

10

304854R1

RING

GASKET, oil filter case

1шт.

11

279994R91

ELEMENT

oil filter

1шт.

12

61261VA

LOCK VALVE

VALVE, oil pressure relief

1шт.

13

49946HA

VALVE SPRING

SPRING, oil pressure relief valve

1шт.

14

3405H

GASKET

oil pressure relief valve cap

1шт.

15

61263VA

PLUG

CAP, oil pressure relief valve

1шт.

16

371237R11

BASE ASSY, oil filter, composed of (1) base 371237R1 (NSS), (1) cap 61263VA, (1) gasket 3504H, (1) plug 103878, (1) spring 49946HA, (1) valve 61261VA

1шт.

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1/4-18 auto. hex-hd pipe, drain

1шт.

179823

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

2шт.

179858

SUPPORT

SCREW, 7/16-14 x 1 hex-hd cap

1шт.

179864

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

SCREW, 7/16-14 x 1-3/4 hex-hd cap

1шт.

179869

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

17

(Not used)

1шт.

18

371238R1

GASKET

oil filter base

1шт.
