Запчасти Case IH 806 (L-11) - WHEELS & WHEEL WEIGHTS, POWER ADJUSTED REAR WHEELS, FARMALL TRACTORS Wheels & Wheel Weights

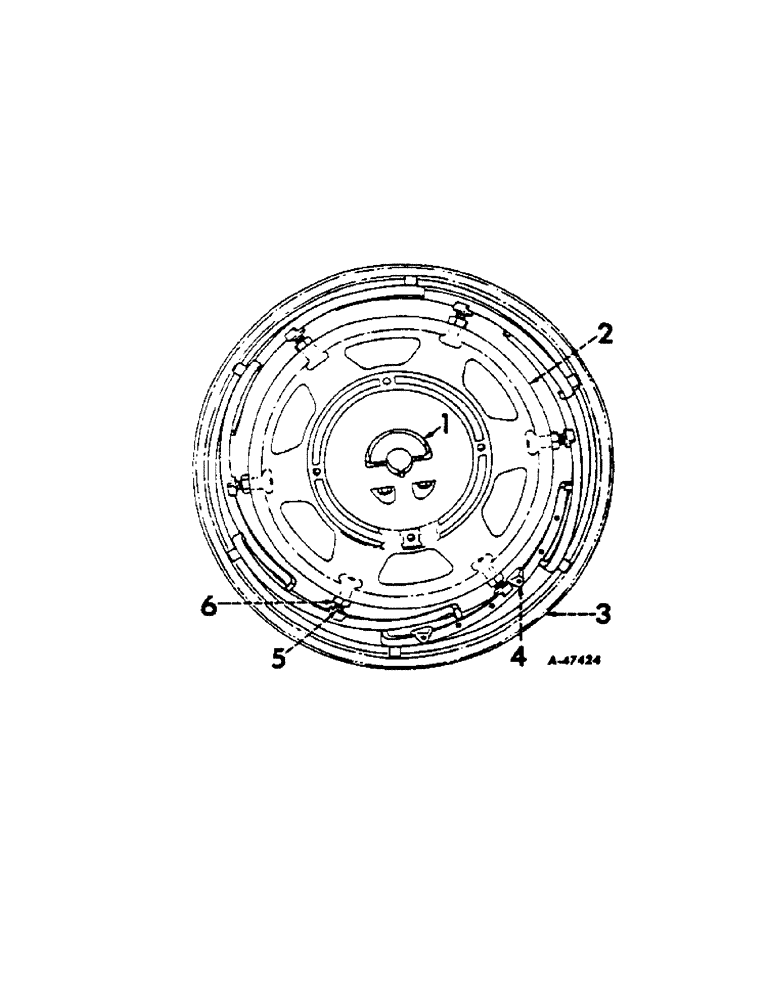

Схема запчастей Case IH 806 - (L-11) - WHEELS & WHEEL WEIGHTS, POWER ADJUSTED REAR WHEELS, FARMALL TRACTORS Wheels & Wheel Weights
4
3
2
5
1
6

Артикул

Название

Примечание

Количество

1

380863R2

COLLAR

CLAMP, rear wheel hub

4шт.

385784R11

STUD

STUD W/NUT ASSY, rear wheel hub clamp

8шт.

384697R1

WASHER

29/32 x 1-3/4 x 11 ga

8шт.

2

380874R1

WHEEL, rear

2шт.

3

380876R91

RIM ASSEMBLY, rear wheel, W14L-38 rim for 15.5-38 tire

2шт.

3

383704R91

RIM ASSEMBLY, rear wheel, W12-38 rim for 14.9-38 tire

2шт.

4

365327R2

STOP

BODY, stop

4шт.

365326R1

SCREW

stop body

4шт.

5

366104R1

JACK SCREW,1" - 16 x 3.34"

power adjusted rear wheel jack

16шт.

6

366105R1

WHEEL NUT,Hex, 1" - 16

1-16 hex.

16шт.

366106R1

WRENCH, jackscrew

1шт.

373941R2

SOCKET WRENCH

WRENCH, 1-5/16 box

1шт.

Выбрано товаров: 12
