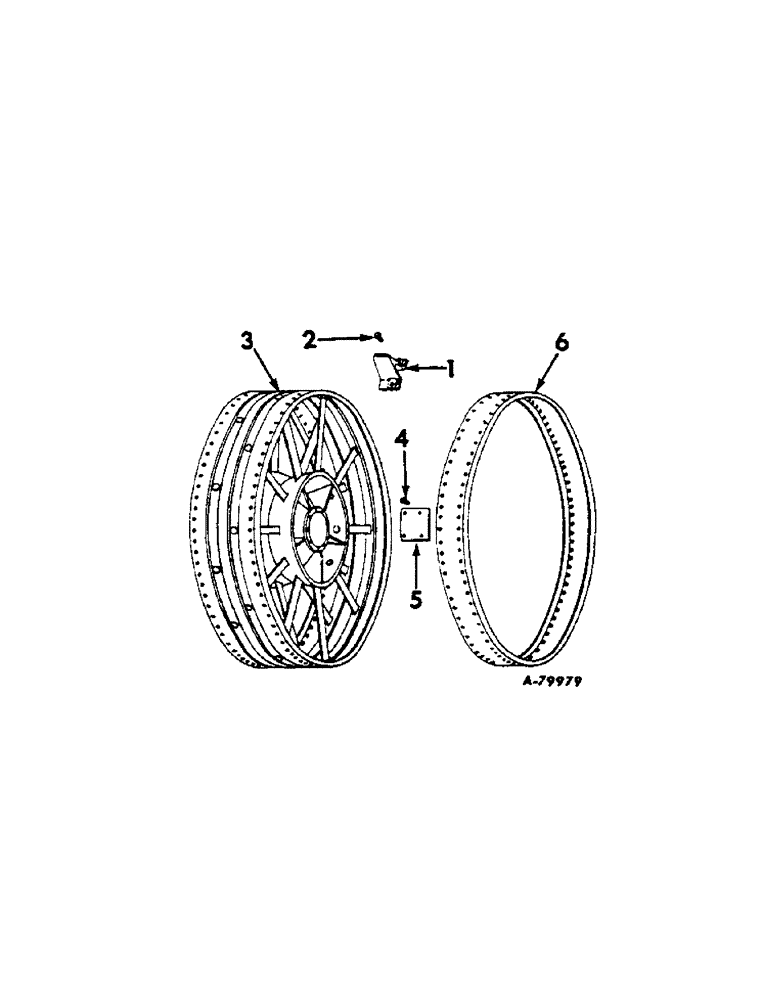

Запчасти Case IH 806 (L-11[A]) - WHEELS & WHEEL WEIGHTS, STEEL REAR WHEELS EXTENSION TIRE AND LUGS, 54 INCH X 12 INCH Wheels & Wheel Weights

SERVICE PARTS, for steel rear wheels, consists of all parts marked unit A

1шт.

374376R91

PARTS ACCESSORY, extension, consists of all parts marked unit B

1шт.

374378R91

PARTS ACCESSORY, spade lug, consists of all parts marked unit C

1шт.

1

374380R1

LUG, spade, 6 in. high x 4 in. wide, 48 for unit C

1шт.

2

375092R1

BOLT, spade lug, 96 for unit C

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

96шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

96шт.

3

374385R91

WHEEL ASSY, rear, 2 for unit A

1шт.

271614

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 hex-hd cap

20шт.

4

374377R1

BOLT, extension tire fasting plate, 32 for unit B

1шт.

220081

NUT

3/4-10 hex.

32шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

32шт.

5

70046D

PLATE, rear wheel extension tire fastining, 16 for unit B

1шт.

13332R1

BOLT, 3/4-10 x 1-3/4 hex-hd mach

16шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

16шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

16шт.

6

70045DA

TIRE, rear wheel extension, 2 for unit B

1шт.
