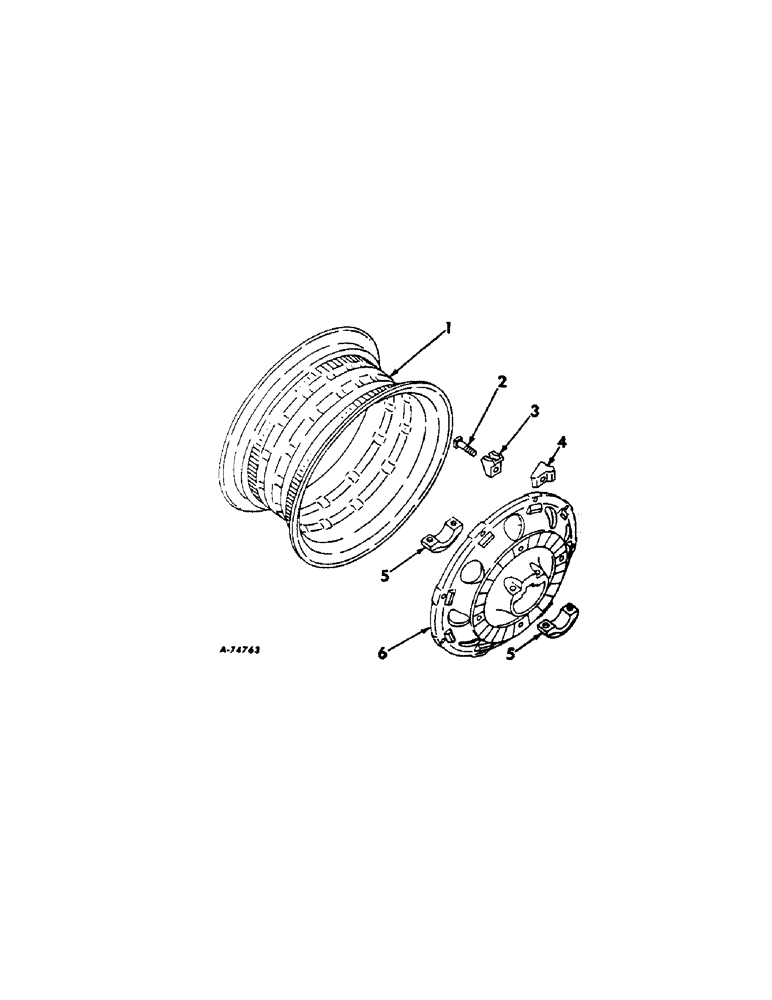

Запчасти Case IH 806 (L-08) - WHEELS & WHEEL WEIGHTS, REAR WHEELS, FARMALL HI-CLEAR TRACTORS Wheels & Wheel Weights

1

383691R1

RIM

rear wheel, WH12-38 rim for 14.9-38 tires

2шт.

1

380869R1

RIM

rear wheel, WH14L-38 rim for 15.5-38 tires

2шт.

2

380878R1

BOLT (SPREADER),Sq Hd, 3/4" - 16 x 2 3/4"

BOLT, rear wheel rim clamp

16шт.

352536R1

NUT

rear wheel rim clamp bolt

16шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

16шт.

3

380870R1

CLAMP

rear wheel rim

12шт.

4

397251R1

CLAMP

rear wheel rim, fixed, will work for 380871R1

4шт.

5

380863R2

COLLAR

CLAMP, rear wheel hub

4шт.

385784R11

STUD

STUD W/NUT ASSY, rear wheel hub clamp

8шт.

384697R1

WASHER

hub clamp stud

8шт.

6

382967R1

WEIGHT

WHEEL, 38 in. rear

2шт.
