Запчасти Case IH 806 (L-07) - WHEELS & WHEEL WEIGHTS, REAR WHEELS, WEDGE TYPE Wheels & Wheel Weights

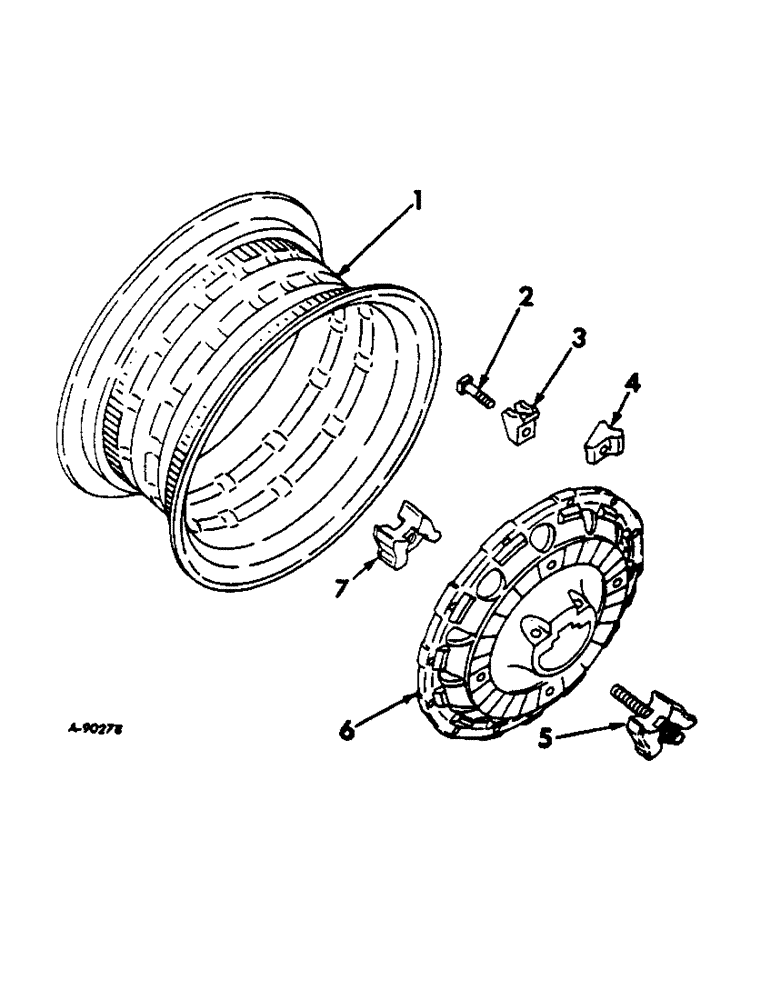

Схема запчастей Case IH 806 - (L-07) - WHEELS & WHEEL WEIGHTS, REAR WHEELS, WEDGE TYPE Wheels & Wheel Weights
3
5
4
2
7
6
1

Артикул

Название

Примечание

Количество

1

380867R1

RIM

rear wheel, W15L-34 rim for 16.9-34 tire, except Hi-Clear tractors

2шт.

1

380868R1

RIM

rear wheel, W16L-34 rim for 18.4-34 tire

2шт.

1

392647R1

RIM

rear wheel, WH14L-38 rim for 15.5-38 tire, Farmall tractors

2шт.

1

392032R1

RIM

rear wheel, W15L-38 rim for 16.9-38 tire, except Hi-Clear tractors

2шт.

1

392031R1

RIM

rear wheel, W16L-38 rim for 18.4-38 tire, except Hi-Clear tractors

2шт.

1

384068R91

RIM

rear wheel, DW20-30 rim for 23.1-30 tire w/clamps, except for Hi-Clear tractors

2шт.

1

384069R91

RIM, rear wheel, DW-20-34 rim for 23.1-34 tires w/clamps, except Hi-Clear tractors

2шт.

2

380877R1

BOLT,3/4" - 16 x 4 3/4"

rear wheel rim clamp, 24 for 34 in. wheels, 20 for 30 in. wheels, except Hi-Clear tractors

1шт.

352536R1

NUT

rear wheel rim clamp bolt

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

2

403398R1

BOLT (SPREADER),Sq Hd, 3/4" - 16 x 3 1/4", Gr 5

BOLT, rear wheel rim clamp

24шт.

352536R1

NUT

rear wheel rim clamp bolt

24шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

24шт.

3

380870R1

CLAMP

rear wheel rim

2-шт.

4

397251R1

CLAMP

rear wheel rim, fixed

4шт.

5

397189R1

WEDGE

ASSY, wheel

2шт.

6

398545R1

WHEEL

34 in. rear

2шт.

6

397188R1

WHEEL

38 inch rear

2шт.

6

398544R1

WHEEL

30 inch rear, except Hi-Clear tractors

2шт.

7

397193R1

SPARE PART

WEDGE, wheel

2шт.

399649R1

TOOL, wheel remover

2шт.

401119R1

TOOL

WRENCH, wedge wheel socket

1шт.

401118R1

TOOL

SOCKET, 7/8

1шт.

386180R91

PARTS ACCESSORY, WH14L-38 rear wheel, Farmall tractors

1шт.

Consists of (8) bolt 393772R1, (2) clamp 380863R2, (6) clamp 380870R1, (2) clamp 397251R1, (8) nut 352536R1, (1) rim 380869R1, (4) stud 385784R11, (2) washer 103326, (4) washer 384697R1, (1) wrench 386868R1, (1) wheel 383581R1

1шт.

386181R91

PARTS ACCESSORY, WH12-38 rear wheel, Farmall tractors

1шт.

Consists of (8) bolt 393772R1, (2) clamp 380863R2, (6) clamp 380870R1, (2) clamp 397251R1, (8) nut 352536R1, (1) rim 380869R1, (4) stud 385784R11, (2) washer 103326, (4) washer 384697R1, (1) wrench 386868R1, (1) wheel 383581R1

1шт.

Выбрано товаров: 27
