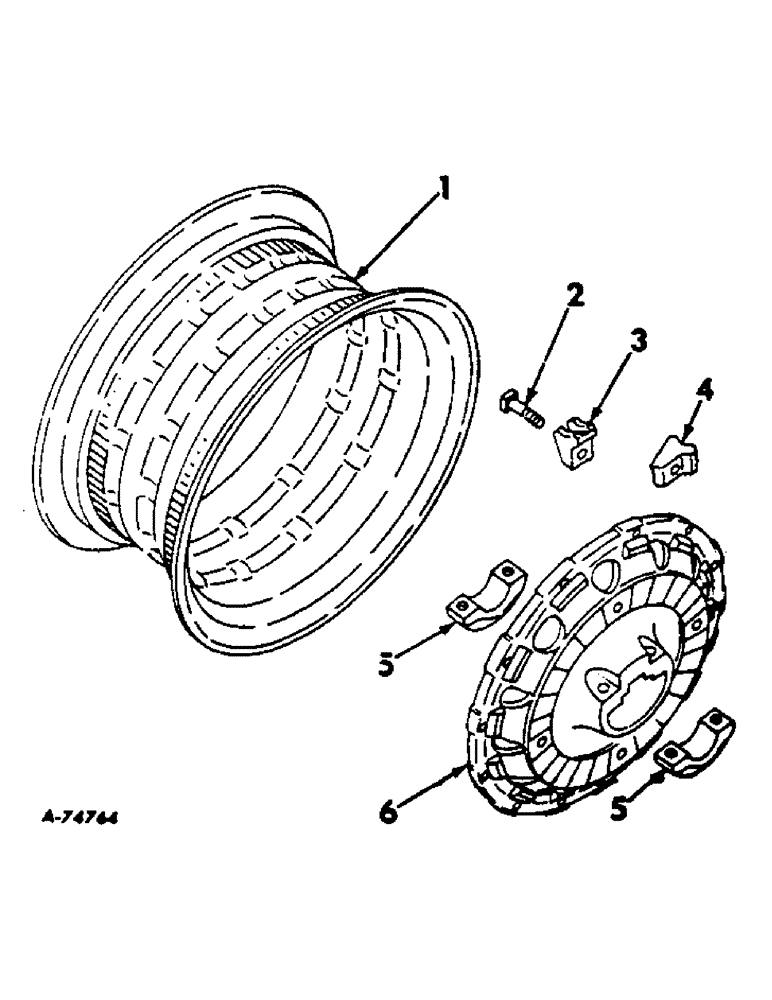

Запчасти Case IH 806 (L-06) - WHEELS & WHEEL WEIGHTS, REAR WHEELS, FARMALL TRACTORS EXCEPT HI-CLEAR Wheels & Wheel Weights

1

380867R1

RIM

rear wheel, W16L-34 rim for 16.9-34 tire

2шт.

1

380868R1

RIM

rear wheel, W16L-34 rim for 18.4-34 tire

2шт.

1

383691R1

RIM

rear wheel, WH12-38 rim for 14.9-38 tire, Farmall tractors up to serial no. 23000

2шт.

1

380869R1

RIM

rear wheel, WH14L-38 rim for 15.5-38 tire, Farmall tractors up to serial no. 23000

2шт.

1

392647R1

RIM

rear wheel, WH14L-38 rim for 15.5-38 tire, Farmall tractors with serial no. 23001 & above

2шт.

1

392032R1

RIM

rear wheel, W15L-38 rim for 16.9-38 tire, Farmall tractors with serial no. 23001 & above

2шт.

1

392031R1

RIM

rear wheel, W16L-38 rim for 18.4-38 tire, Farmall tractors with serial no. 23001 & above

2шт.

2

380878R1

BOLT (SPREADER),Sq Hd, 3/4" - 16 x 2 3/4"

BOLT, rear wheel rim clamp, 24 for 34 in. wheels

1шт.

352536R1

NUT

rear wheel rim clamp bolt

24шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

24шт.

2

380878R1

BOLT (SPREADER),Sq Hd, 3/4" - 16 x 2 3/4"

BOLT, rear wheel rim clamp, 16 for 38 in. wheels, Farmall tractors up to serial no. 23000

1шт.

352536R1

NUT

rear wheel rim clamp bolt

16шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

16шт.

2

393772R1

BOLT,Sq Hd, 3/4" - 16 x 3"

rear wheel rim clamp, 24 for 38 in. wheels, Farmall tractors with serial no. 23001 & above

1шт.

352536R1

NUT

rear wheel rim clamp bolt

24шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

24шт.

3

380870R1

CLAMP

rear wheel rim, 20 for 24 in. wheels

1шт.

3

380870R1

CLAMP

rear wheel rim, 12 for 38 in. wheels, Farmall tractors up to serial no. 23000

1шт.

3

380870R1

CLAMP

rear wheel rim, 20 for 38 in. wheels, Farmall tractors with serial no. 23001 & above

1шт.

4

397251R1

CLAMP

rear wheel rim, fixed, will work for 380871R1

4шт.

5

380863R2

COLLAR

CLAMP, rear wheel hub

4шт.

385784R11

STUD

STUD W/NUT ASSY, rear wheel hub clamp

8шт.

384697R1

WASHER

hub clamp stud

8шт.

6

383579R1

NO LONGER SERVICED

WHEEL, 34 in. rear

2шт.

6

383581R1

WHEEL (STEERING)

WHEEL, 38 in. rear, Farmall tractors up to, serial no. 23000

2шт.

6

392020R1

WHEEL

38 inch rear, Farmall tractors with serial no. 23001 & above

2шт.

386181R91

PARTS ACCESSORY, WH12-38 rear wheel, Farmall tractors up to serial no. 23000

1шт.

Consists of (8) bolt 380878R1, (2) clamp 380863R2, (6) clamp 380870R1, (2) clamp 380871R1, (8) nut 352536R1, (1) rim 380869R1, (4) stud 385784R11, (2) washer 103326, (4) washer 384697R1, (1) wheel 383581R1

1шт.

386180R91

PARTS ACCESSORY, WH14L-38 rear wheel, Farmall tractors up to serial no. 23000

1шт.

Consists of (8) bolt 380878R1, (2) clamp 380863R2, (6) clamp 380870R1, (2) clamp 380871R1, (8) nut 352536R1, (1) rim 380869R1, (4) stud 385784R11, (2) washer 103326, (4) washer 384697R1, (1) wheel 383581R1

1шт.
