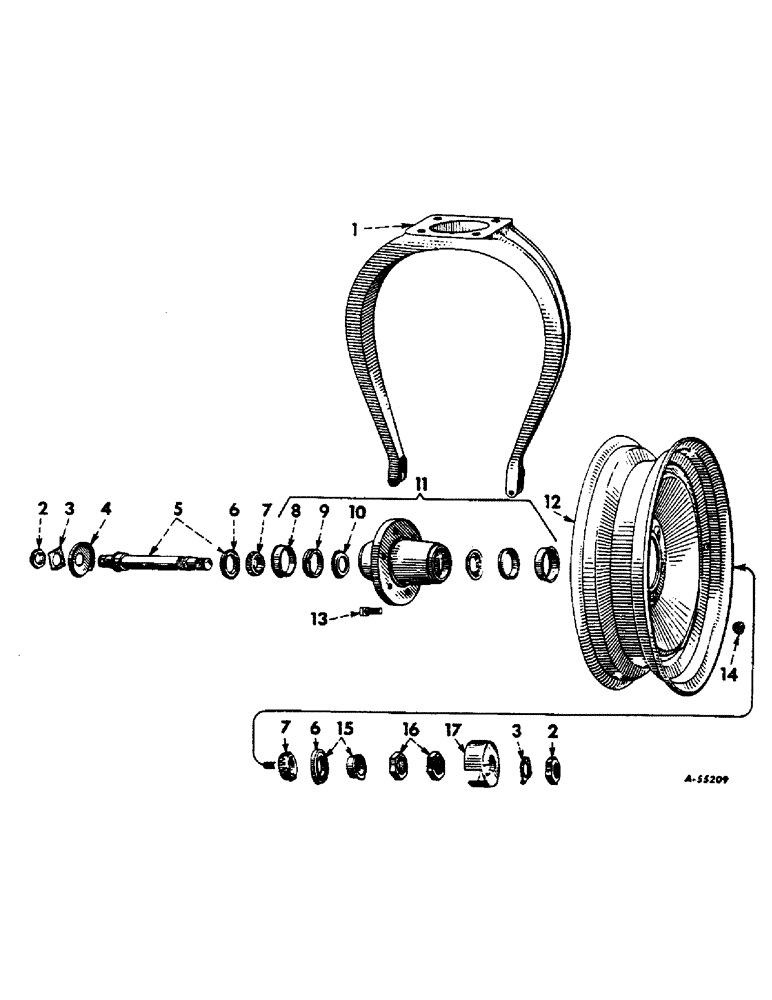

Запчасти Case IH 806 (L-05) - WHEELS & WHEEL WEIGHTS, SINGLE FRONT GUIDE WHEEL, FARMALL TRACTOR PARTS ADAPTABLE TO COTTON PICKER Wheels & Wheel Weights

374019R91

PARTS ACCESSORY, single front wheel

1шт.

1

350302R2

FORK, front bolster

1шт.

13452R1

BOLT, 1/2-13 x 3-1/2 sq-hd mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 hex-hd cap

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

2

425-1520

JAM NUT,Jam, 1 1/4"-12, G5

1-1/4-12 hex. jam

2шт.

3

38916D

LOCK WASHER

front axle nut lock

2шт.

4

351419R11

PROTECTOR

SHIELD ASSY, front wheel hub short

1шт.

5

351417R11

AXLE ASSY, front wheel

1шт.

6

48539DA

PACKING RING

SEAL, front wheel oil

2шт.

7

ST2049

TAPERED BEARING,1.3755" ID x 2.718" OD x 0.7953"

BEARING ASSY, front wheel cone

2шт.

8

48548D

WASHER

front wheel oil seal

2шт.

9

ST974

TAPERED BEARING,1.313" ID x 2.718" OD x 0.7953"

BEARING, front wheel cup

2шт.

10

60288DA

BEARING CAP,1.4375" ID x 2.7125" OD x 0.40625"

front wheel brg grease

2шт.

11

351398R21

HUB ASSY, front wheel

1шт.

12

351397R92

WHEEL, guide 5.50F-20 for 7.50 x 20 tire, optional with 360133R92

1шт.

12

360133R92

WHEEL, guide 5.50F-20 for 7.50 x 20 tire, optional with 351397R92

1шт.

13

358134R1

BOLT (MACHINE),9/16" - 18 x 1 3/4"

BOLT, front wheel mounting

6шт.

14

351793R1

WHEEL NUT

NUT, front wheel mounting

6шт.

15

351416R11

SPACER ASSY, front wheel brg

1шт.

16

351418R1

BEARING LOCK NUT

front wheel brg adj

2шт.

17

351420R11

PROTECTOR

SHIELD ASSY, front wheel hub long

1шт.
