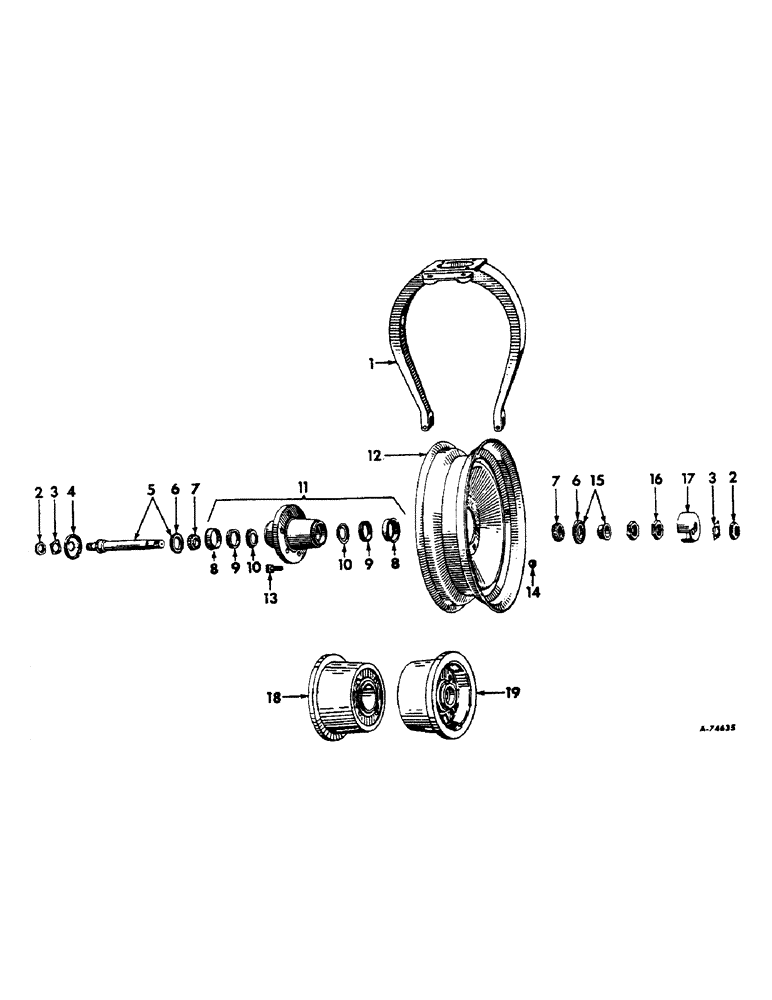

Запчасти Case IH 806 (L-03) - WHEELS & WHEEL WEIGHTS, SINGLE FRONT WHEEL, FARMALL TRACTORS EXCEPT HI-CLEAR Wheels & Wheel Weights
№
Артикул
Название
Примечание
Количество
370648R91
PARTS ACCESSORY, single front wheel, for 7.50 x 16 tire, consists of all unmarked parts and those marked unit A
1шт.
370649R92
WHEEL
PARTS ACCESSORY, single front wheel, for 9.00 x 10 tire, consists of all unmarked parts and those marked unit B
1шт.
SERVICE PARTS, for single front wheel, for 11.00 x 10 tire, consists of all unmarked parts and those marked unit C
1шт.
1
8298DD
FORK, front bolster, units A & B
1шт.
102637
NUT,1/2"-13, G5
2шт.
179895
BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5
SCREW, 1/2-13 x 3-1/2 hex-hd cap
2шт.
271607
BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5
SCREW, 3/4-10 x 1-1/2 hex-hd cap
4шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
4шт.
1
375369R1
FORK, front bolster, unit C
1шт.
102637
NUT,1/2"-13, G5
2шт.
179895
BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5
SCREW, 1/2-13 x 3-1/2 hex-hd cap
2шт.
NLS
NO LONGER SERVICED
SCREW, 3/4-10 x 1-1/2 hex-hd cap
4шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
4шт.
2
425-1520
JAM NUT,Jam, 1 1/4"-12, G5
1-1/4-12 hex. jam
2шт.
3
38916D
LOCK WASHER
front axle nut lock
2шт.
4
351419R11
PROTECTOR
SHIELD ASSY, front wheel hub short
1шт.
5
351417R11
AXLE ASSY, front wheel, units A & B
1шт.
5
375370R11
AXLE ASSY, front wheel, unit C
1шт.
6
48539DA
PACKING RING
SEAL, front wheel oil
2шт.
7
ST2049
TAPERED BEARING,1.3755" ID x 2.718" OD x 0.7953"
BEARING ASSY, front wheel cone
2шт.
8
48548D
WASHER
front wheel oil seal
2шт.
9
ST974
TAPERED BEARING,1.313" ID x 2.718" OD x 0.7953"
BEARING, front wheel cup
2шт.
10
60288DA
BEARING CAP,1.4375" ID x 2.7125" OD x 0.40625"
front wheel bearing grease, units A & C
2шт.
11
351398R21
HUB ASSY, front wheel, unit A
1шт.
12
354195R92
WHEEL
ASSY, front, 5.50F x 16 DC rim for 7.50-16 tire, unit A
1шт.
13
358134R1
BOLT (MACHINE),9/16" - 18 x 1 3/4"
BOLT, front wheel mounting, unit A
6шт.
14
351793R1
WHEEL NUT
NUT, front wheel mounting, unit A
6шт.
15
351416R11
SPACER ASSY, front wheel bearing
1шт.
16
351418R1
BEARING LOCK NUT
front wheel bearing adjusting
2шт.
17
351420R11
PROTECTOR
SHIELD ASSY, front wheel hub long
1шт.
18
383790R11
WHEEL W/CUP, ST 974 and retainer, 48548D, front-male half, unit B
1шт.
102639
NUT,5/8"-11, G5
4шт.
17184R1
SCREW,Hex, 5/8" - 11 x 7"
5/8-11 x 7 hex-hd cap
4шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
18
375371R11
WHEEL W/CUP, ST 974, retainer, 48548D and retainer, 60288DA, front, male half, unit C
1шт.
19
383791R11
WHEEL W/CUP, ST 974 and retainer, 48548D, front, female half, unit B
1шт.
19
375372R11
WHEEL W/CUP, ST974, retainer, 48548D and retainer, 60288DA, front female half, unit C
1шт.
102639
NUT,5/8"-11, G5
4шт.
18551R1
BOLT,Hex, 5/8" - 11 x 8", Gr 5
SCREW, 5/8-11 x 8 hex-hd cap
4шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
Выбрано товаров: 42
