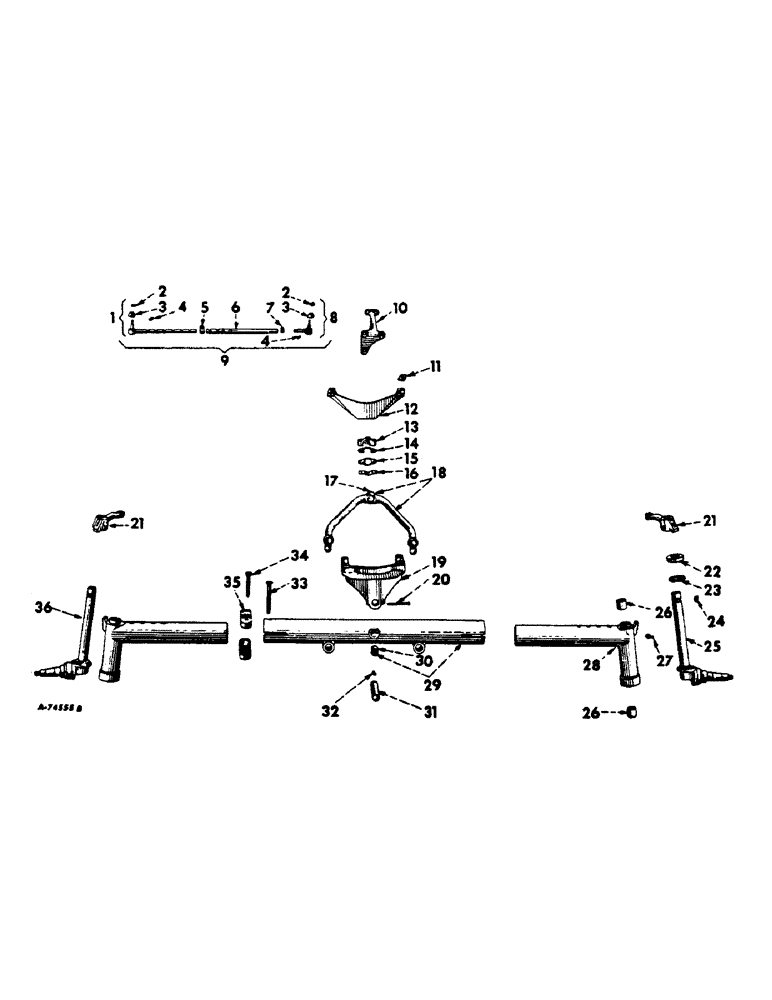

Запчасти Case IH 806 (J-16) - STEERING MECHANISM, ADJUSTABLE WIDE TREAD FRONT AXLE, FARMALL TRACTORS Steering Mechanism

370789R92

ATTACHMENT, front axle, axles with 56 to 80 in. tread

1шт.

When this attachment is applied on tractors previously equipped with single front wheel, also order front wheel and rim parts accessory, 370787R92.

1шт.

383922R91

ATTACHMENT, front axle, axles with 50 to 74 in. tread

1шт.

When this attachment is applied on tractors previously equipped with single front wheel, also order front wheel and rim parts accessory, 370787R92.

1шт.

1

359984R91

ROD

ASSY, tie, LH, axles with 56 to 80 in. tread

2шт.

1

384441R91

ROD

ASSY, tie, LH, axles with 50 to 74 in. tread

2шт.

2

374701R1

NUT

tie rod, optional with 359983R1

4шт.

2

359983R1

NUT

tie rod, optional with 374701R1

4шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

4шт.

3

387280R1

SEAL

COVER, dust

4шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.

5

359986R1

CLAMP

tie rod, adj end

2шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex.

2шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

SCREW, 1/2-20 x 2 hex-hd cap

2шт.

6

383917R1

TUBE

tie rod, axles with 56 to 80 in. tread

2шт.

6

384439R1

TUBE,0.937" ID, 1.187" OD, 15.312" Length

tie rod, axles with 50 to 74 in. tread

2шт.

7

374062R1

JAM NUT

NUT, jam, axles with 56 to 80 in. tread

2шт.

7

384442R1

JAM NUT

NUT, jam, axles with 50 to 74 in. tread

2шт.

8

382414R91

END

ROD ASSY, tie, RH thread, axles with 56 to 80 in. tread

2шт.

8

384440R91

END

ROD ASSY, tie, RH thread, axles with 50 to 74 in. tread

2шт.

9

383915R91

ROD

ASSY, tie, axles with 56 to 80 in. tread

2шт.

9

384438R91

ROD ASSY, tie, axles with 50 to 74 in. tread

2шт.

10

358970R1

ARM

steering gear

1шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 1-1/2 hex-hd cap

3шт.

11

51693D

BAR

WASHER, stay rod ball socket support

4шт.

12

370692R3

SUPPORT

stay rod ball socket

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex.

4шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

SCREW, 1/2-20 x 2 hex-hd cap

4шт.

13

389277R1

CUP ASSY.

SOCKET, stay rod ball

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

14

60762D

SHIM

stay rod ball socket cap (or as required)

4шт.

15

60763DB

CYLINDER END CAP

CAP, stay rod ball socket (Replaces 60763D8)

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 hex-hd cap

2шт.

16

358345R1

PLATE ASSY.

PLATE, stay rod ball socket cap lock

1шт.

17

10546D

BALL

stay rod

1шт.

18

360405R11

ROD

STAY ROD ASSY

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex. jam

2шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.

19

383909R4

BOLSTER

lower

1шт.

271624

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

SCREW, 3/4-10 x 2-3/4 hex-hd cap

4шт.

20

Q3537

HEADED PIN,3/8" x 4 1/8"

PIN, 3/8 x 4-1/8 headed, used with bolster, 383909R3

1шт.

20

21105R1

HEADED PIN,9.53mm OD x 123.83mm L

PIN, 3/8 x 4-7/8 headed, used with bolster, 383909R4

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

21

383914R1

ARM

steering knuckle

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-18 x 3 hex-hd cap

2шт.

22

369131R91

THRUST BEARING

steering knuckle pivot thrust

2шт.

23

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle pivot felt

2шт.

24

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, 1/4 x 2-1/8 Woodruff 127

2шт.

25

383912R92

KNUCKLE

w/seal, 370254R91 & shield, 48701D, steering LH

1шт.

26

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

steering knuckle pivot pin

4шт.

27

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str lub

4шт.

28

370689R21

EXTENSION

w/two bushings, 358958R2, front axle, axles with 56 to 80 in. tread

2шт.

28

383927R21

EXTENSION, w/two bushings, 356958R2, front axle, axles with 50 to 74 in. tread

2шт.

29

358976R31

CENTER AXLE

AXLE ASSY, front, axles with 56 to 80 in. tread

1шт.

ref #29 (P/N 358976R31) - 42 1/2

1шт.

29

383926R21

AXLE ASSY, front, axles with 50 to 74 in. tread

1шт.

ref #30 (P/N 383926R21) - 36 1/2

1шт.

30

48841D

BUSHING,31.03mm ID x 34.62mm OD x 31.75mm L

front axle pivot pin

2шт.

re it no. 30, bushing has to be a press fit and reamed after assembly.

1шт.

31

358978R2

AXLE PIN,31.29mm OD x 217.49mm L

PIN, front axle pivot

1шт.

32

17049R91

LUBE NIPPLE,67.5 Degree, 1/8"-27 NPT x 1.03" lg, Leakproof

FITTING, 1/8-27 ptf 67-1/2 deg angle lub

1шт.

33

350557R1

PIN

front axle clamp

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

34

20673R1

BOLT,Hex, 3/4" - 16 x 4 1/4", Gr 8

front axle clamp bolt

4шт.

218197

NUT,3/4"-16, G5

3/4-16 hex.

4шт.

35

350556R1

CLAMP

front axle

4шт.

36

383913R92

KNUCKLE JOINT

KNUCKLE, w/seal, 370254R91 & shield, 48701D, steering RH

1шт.
