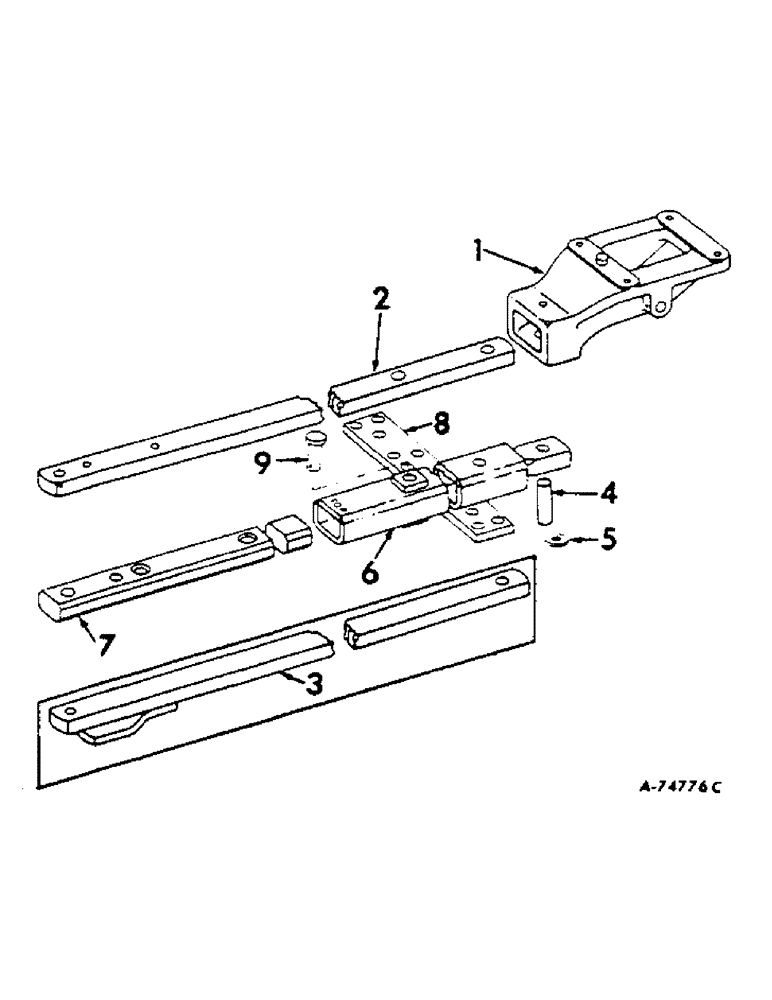

Запчасти Case IH 806 (K-03) - DRAWBARS AND HITCHES, SWINGING DRAWBAR, TRACTORS WITH TWO OR THREE POINT HITCH Drawbars & Hitches

383496R91

ATTACHMENT, swinging drawbar, tractors with two-point hitch, consists of all parts marked unit A, Farmall tractors 501 to 14499, International tractors, Serial Range: 501-3399

1шт.

389257R91

ATTACHMENT, independent swinging drawbar, tractors with two point hitch, consists of all parts marked unit B, Farmall tractors 14500 up to serial no. 23000, International tractors 3400 up to serial no. 5700

1шт.

393502R91

ATTACHMENT, swinging drawbar, tractors with two point hitch, consists of all parts marked unit C, Farmall tractors with serial no. 23001 & above, International tractors with serial no. 5701 & above

1шт.

381713R91

ATTACHMENT, swinging drawbar, tractors with three point hitch, consists of all parts marked unit D, Farmall tractors up to serial no. 23000, International tractors up to serial no. 5700

1шт.

393149R91

ATTACHMENT, swinging drawbar, tractors with three point hitch, consists of all parts marked unit E, Farmall tractors with serial no. 23001 & above, International tractors with serial no. 5701 & above

1шт.

400866R91

ATTACHMENT, independent swinging drawbar, tractors w/three point hitch, consists of all parts marked unit F

1шт.

1

381707R21

SUPPORT

ASSY, swinging drawbar pivot, not included in the swingng drawbar attachment

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

4шт.

2

381706R2

BAR

DRAWBAR, swinging, unit D

1шт.

2

393150R1

DRAWBAR, swinging, unit E

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

2шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

3

383494R21

DRAWBAR, swinging, unit A

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

SCREW, 3/4-10 x 2-1/4 hex-hd cap, drawbar stop

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

220081

NUT

3/4-10 hex.

2шт.

4

57654D

PIVOT PIN

PIN, drawbar pivot, units A, B, C, D, and E

1шт.

5

49139D

WASHER,10.32mm ID x 38.1mm OD x 5mm Thk

PLATE, pivot pin lock, units A, B, C, D and E

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

389421R11

BAR

DRAWBAR ASSY, front section, unit B

1шт.

6

393501R11

BAR

DRAWBAR ASSY, front section, unit C & F

1шт.

7

397065R1

BAR

DRAWBAR, rear section, units B, C, & F, replaces 389429R1

1шт.

397067R1

PIN

drawbar storage

1шт.

8

389065R1

BAR, drawbar support, units B & C

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

SCREW, 3/4-10 x 2-1/4 hex-hd cap

4шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 hex-hd cap, drawbar stop

2шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

9

389428R1

AXLE PIN,25.4mm OD x 95.25mm L

PIN, 7/8 x 3-1/16 headed, units B, C & F

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.
