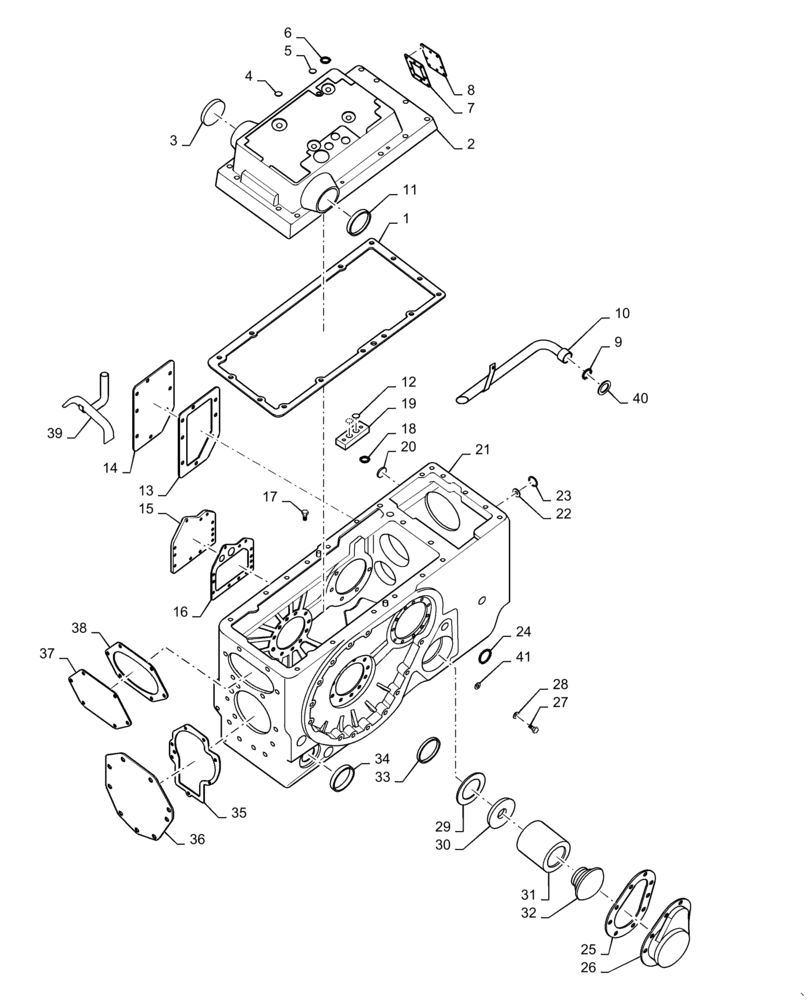

Запчасти Case IH 806 (A-02) - CHASSIS, RADIATOR & SHEET METAL, REAR FRAME, COVER AND CONNECTIONS Chassis, Radiator & Sheet Metal

1

380264R2

GASKET

rear frame cover

1шт.

2

386884R91

PACKAGE, rear frame cover service, consists of cover, 385931R91, pipe, 385932R11, screw, 179812 & washer 103320, Farmall 806 series 501 to 2869 , Internatinal 806 series, Serial Range: 501-1026.

1шт.

2

398352R11

COVER W/PLUGS ASSY, rear frame, Farmall 806 series 2870 up, International 806 series 1027 up, will work for 385931R92

1шт.

20203R1

BOLT,Hex, 5/8" - 11 x 3 7/8", Gr 5

SCREW, 5/8-11 x 3-7/8 hex-hd cap

16шт.

444776

PLUG,Sq Soc, 1/4"-18 NPTF

1/4-18 NPTF sq-soc pipe

1шт.

3

380174R1

PLUG,Cup, 3.510"

Rockshaft opening LH Cup, 3.510"

1шт.

4

380263R1

PLUG

eccentric shaft & mounting bolt openings cup

5шт.

5

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, cover to seat support, small

2шт.

5

386867R1

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

1-1/8 x 1-3/16 x 3/32, cover to seat support

1шт.

6

384377R1

O-RING,0.103" Thk x 2.55" ID, -141, Cl 6, 90 Duro

3-5/16 x 3-1/2 x 3/32 , cover to seat support, large

1шт.

7

382416R1

GASKET

valve adj opening cover

1шт.

8

382415R1

COVER

valve adj opening

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

SCREW, 5/16-18 x 5/8 hex-hd cap

4шт.

9

360610R1

O-RING,1.609" ID x 0.139" Width

1-5/8 x 1-7/8 x 1/8, hydrualic filter suction tube, Farmall tractors, 501 to 2513 & 2633 up, International tractors 501 to 916 & 953 up

1шт.

10

382240R11

TUBE

ASSY, hydraulic filter suction

1шт.

293330R1

SCREW, 3/8-16 x 1 hex-hd cap

1шт.

11

380173R1

PLUG,Cup, 3.762"

Rockshaft opening RH Cup, 3.762"

1шт.

12

387926R2

RING

seal, draft control port cover

2шт.

13

385757R1

GASKET

drive attachment opening cover, not used on tractors with all wheel drive

1шт.

14

380330R3

COVER

drive attachment opening, not used on tractors with all wheel drive

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

8шт.

15

382243R1

COVER ASSY

COVER, pump opening

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

12шт.

16

382244R1

GASKET

pump opening cover

1шт.

17

113702

OILER

BREATHER, used w/390965R11 only

2шт.

18

385744R1

SEALING RING

rear frame pressure port oil, Farmall tractors 501 to 15092, International tractors, Serial Range: 501-3547

1шт.

18

388306R1

RING,32.77mm ID x 39.12mm OD x 3.17mm Thk

SEAL, rear frame pressure port oil, Farmall tractors 15093 up, International tractos 3548 up

1шт.

19

382758R1

COVER

draft control port

1шт.

NLS

NO LONGER SERVICED

2шт.

20

386007R1

PLUG, clutch pedal shaft, tractors with over-center clutch

1шт.

21

380361R21

FRAME

w/dowel pins & plug, rear, order frame, 390965R31 & two cases, 392075R1, Farmall tractors up to serial no. 20381, International tractors up to serial no. 5008

1шт.

21

390365R21

FRAME, w/dowel pins & plugs, rear, Farmall tractors with serial no. 20382 & above, International tractors with serial no. 5009 & above

1шт.

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG, 1/2-14 auto sq-soc pipe

2шт.

9409949

DRAIN PLUG

3/4-14 auto sq-soc pipe

1шт.

22

380271R1

RETAINER

sealing ring

1шт.

23

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, clutch housing suction tube

1шт.

24

382242R1

RETAINER

hydraulic filter suction tube

1шт.

25

382257R1

GASKET

oil filter cover

1шт.

26

382256R1

COVER ASSY

COVER, oil filter

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8шт.

27

382245R1

PLUG, pump suction port, Farmall tractos 501 to 2513, International tractors, Serial Range: 501-916

1шт.

28

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, pump suction port plug, Farmall tractors 501 to 2513, International tractors 501 to 916

1шт.

29

382247R1

O-RING,5.237" ID x 0.103" Width

SEAL, hyd filter cartridge retainer

1шт.

30

382246R11

RETAINER

hydraulic filter cartridge

1шт.

31

386122R91

SERVICE KIT

PACKAGE, hydraulic filter service, includes reference nos. 25 & 29

1шт.

32

386121R92

VALVE

ASSY, filter relief

1шт.

33

383331R1

PLUG,Cup, 4.26"

rear axle opening cup, used w/390965R11 only

2шт.

34

383331R1

PLUG,Cup, 4.26"

torsion bar cup

2шт.

35

381467R1

GASKET

independent PTO opening cover

1шт.

36

380272R1

COVER

independent PTO opening

1шт.

179882

PIN

SCREW, 1/2-13 x 1-1/8 hex-hd cap

9шт.

37

383329R1

COVER

draft control adj opening

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap

6шт.

38

383330R1

GASKET

draft control adj opening cover

1шт.

39

385932R11

PIPE ASSY.

PIPE ASSY, differential lub

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

40

172574

PLUG,Exp, 1 1/2"

1-1/2 expansion, pump suction port, Farmall tractors 2514 up, International tractors 917 up

1шт.

41

386126R91

SEAL, hydraulic filter tube suction oil, Farmall tractors 2514 to 2633, International tractors, Serial Range: 917-953

1шт.
