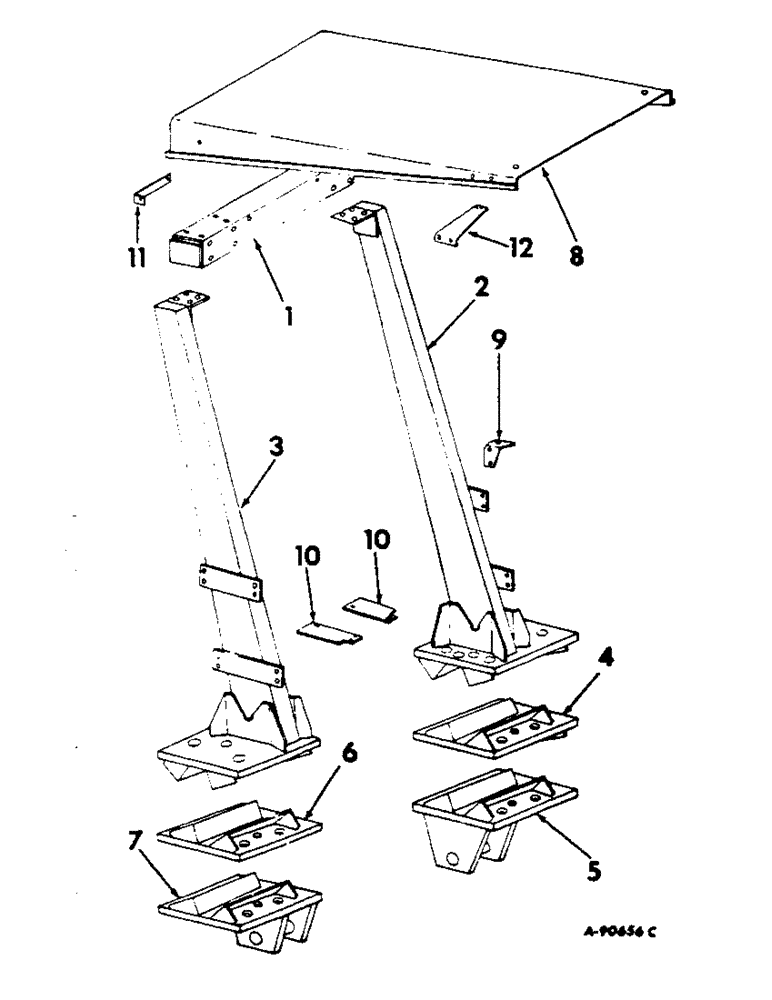

Запчасти Case IH 806 (N-20) - PARTS ACCESSORIES AND ATTACHMENTS, PROTECTIVE FRAME, FARMALL TRACTORS Accessories & Attachments

403420R91

ATTACHMENT, protective frame, Farmall tractors w/o vertically adjustable drawbar

1шт.

Attachment must also be equiped w/exhaust pipe extension accessory, 403422R91.

1шт.

403890R91

ATTACHMENT, protective frame, Farmall tractors with vertically adjustable drawbar

1шт.

Attachment must also be equiped w/exhaust pipe extension accessory, 403422R91.

1шт.

1

402082R1

BAR ASSY, frame cross

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

2

402087R1

FRAME ASSY, safety LH

1шт.

3

402088R1

FRAME ASSY, safety RH

1шт.

4

402098R1

BOTTOM ASSY, frame bar LH, for tractors w/o vertically adjustable drawbar

1шт.

22467R1

BOLT,Hex, 7/8" - 9 x 10", Gr 5

SCREW, 7/8-9 x 10 hex-hd cap

1шт.

22468R1

BOLT,Hex, 7/8" - 9 x 11", Gr 5

SCREW, 7/8-9 x 11 hex-hd cap

5шт.

680457R1

WASHER

29/32 x 1-1/2 x .12

6шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

5шт.

5

402101R1

BOTTOM ASSY, frame bar LH, for tractors equipped with vertically adjustable drawbar

1шт.

22467R1

BOLT,Hex, 7/8" - 9 x 10", Gr 5

SCREW, 7/8-9 x 10 hex-hd cap

1шт.

22468R1

BOLT,Hex, 7/8" - 9 x 11", Gr 5

SCREW, 7/8-9 x 11 hex-hd cap

5шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

5шт.

6

402097R1

BOTTOM ASSY, frame bar RH, for tractors not equipped with vertically adjustable drawbar

1шт.

22467R1

BOLT,Hex, 7/8" - 9 x 10", Gr 5

SCREW, 7/8-9 x 10 hex-hd cap

1шт.

22468R1

BOLT,Hex, 7/8" - 9 x 11", Gr 5

SCREW, 7/8-9 x 11 hex-hd cap

5шт.

680457R1

WASHER

29/32 x 1-1/2 x .12

6шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

5шт.

7

402100R1

BOTTOM ASSY, frame bar RH, for tractors equipped with vertically adjustable drawbar

1шт.

22467R1

BOLT,Hex, 7/8" - 9 x 10", Gr 5

SCREW, 7/8-9 x 10 hex-hd cap

1шт.

22467R1

BOLT,Hex, 7/8" - 9 x 10", Gr 5

SCREW, 7/8-9 x 11 hex-hd cap

5шт.

680457R1

WASHER

29/32 x 1-1/2 x .12

6шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

5шт.

8

402105R1

TOP ASSY, w/coating

1шт.

189295

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

SCREW, 3/8-16 x 4-1/2 hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

433163

BOLT,Hex, 1/2" - 13 x 5", Gr 5

SCREW, 1/2-13 x 5 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

10шт.

21395R1

SCREW,Hex, 1/2"-13 x 5 1/4", G5

1/2-13 x 5-1/4 znd hex-hd cap

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

3шт.

9

402111R1

SUPPORT, flasher light bracket, for tractors not equipped with deluxe fenders

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

102637

NUT,1/2"-13, G5

2шт.

10

402112R1

PLATE, platform filler

2шт.

14995R1

BOLT

3/8-16 x 3/4 sq-nk crg

6шт.

102635

NUT,3/8"-16, G5

6шт.

11

406115R1

BRACKET, stabilizer rear

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

12

406117R1

BRACKET, stabilizer RH front

1шт.

12

406116R1

BRACKET, stabilizer LH front

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

10шт.

403301R1

CABLE ASSY, flasher to light, for tractors not equipped with deluxe fenders & w/breakaway connecting sockets

1шт.

13

405218R1

CABLE ASSY, flashing warning light

1шт.

Use only on tractors w/o breakaway connecting socket.

1шт.

403302R1

HARNESS ASSY, comb & breakaway conn., for tractors not equipped with deluxe fenders & w/breakaway connecting socket

1шт.

14

405880R1

HARNESS

ASSY, comb. & flashing light

1шт.

Use only on tractors w/o breakaway connecting socket.

1шт.

348129C91

SAFETY BELT

1шт.

271684C1

BOLT, eye

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

456939

NUT,7/16"-20, G8

7/16-20 type 4 hex.

2шт.

402132

BAR, seat belt anchor

2шт.

404227R1

SAFETY BELT, Seat retainer, 20.2 in.

1шт.

404228R1

SAFETY BELT, Seat retainer, 25.7 in.

1шт.
