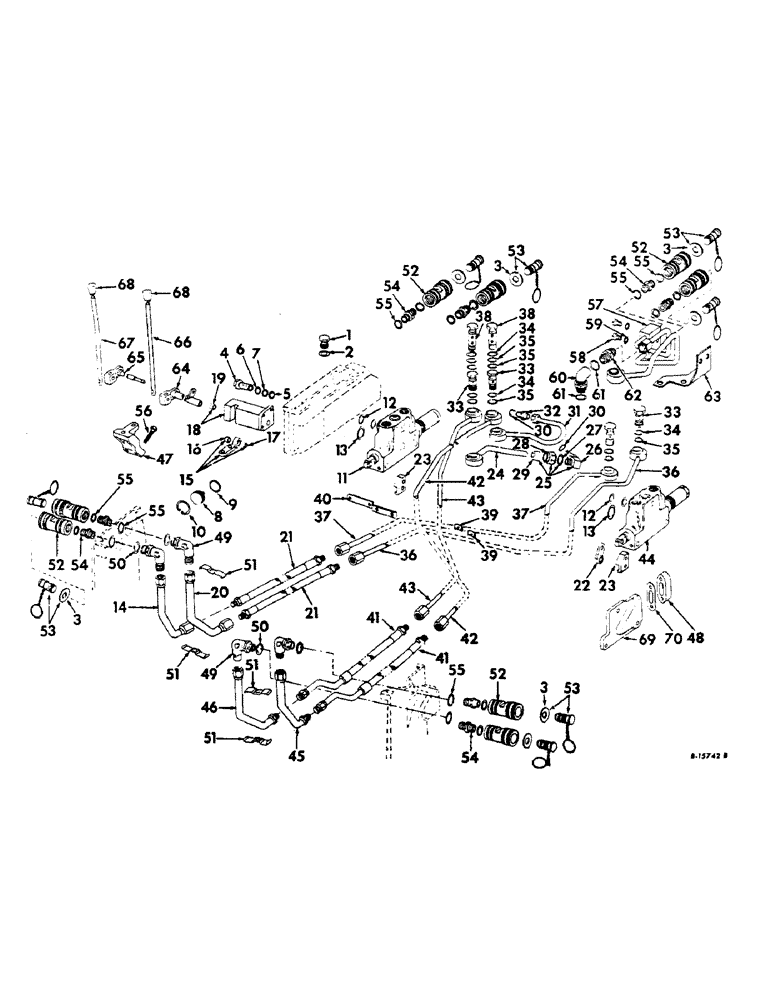

Запчасти Case IH 806 (F-25) - HYDRAULIC SYSTEM, AUXILIARY VALVES AND TUBES (07) - HYDRAULIC SYSTEM

383751R93

PARTS ACCESSORY, single auxiliary valve with rear manifold, tractors with draft control, consists of all parts marked unit A

1шт.

383753R93

PARTS ACCESSORY, single auxiliary valve with rear & left front manifold, tractors with draft control, consists of all parts marked unit B

1шт.

392109R91

PARTS ACCESSORY, single auxiliary valve with rear manifold, tractors with power supply, consists of all parts marked unit C

1шт.

392111R91

PARTS ACCESSORY, single auxiliary valve with rear & left front manifold, tractors with power supply, consists of all parts marked unit D

1шт.

383755R93

PARTS ACCESSORY, double auxiliary valve with left & right front & rear manifold, tractors with draft control, consists of all parts marked unit E

1шт.

383230R92

PARTS ACCESSORY, left front manifold, tractors with single auxiliary valve with rear manifold, consists of all parts marked unit F

1шт.

383231R92

PARTS ACCESSORY, double auxiliary valve with right front manifold tractors with single auxiliary valve, consists of all parts marked unit G

1шт.

387822R94

PART ACCESSORY, double auxiliary valve with second rear manifold, tractors with single auxiliary valve and rear manifold, consists of all parts marked unit H

1шт.

392113R91

PARTS ACCESSORY, double auxiliary valve with left & right front & rear manifold, tractors with power supply, consists of all parts marked unit J

1шт.

1

9410361

PLUG

1-1/16-12 C-Z hyd str thd o-ring boss, check valve port, units D and J

1шт.

2

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 x 1-1/16 x 7/64, check valve port plug, units D and J

1шт.

3

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

dust plug, 1 per unit

1шт.

4

388208R92

VALVE

ASSY, relief, for components see list of parts under details of pilot relief valve, units C, D and J

1шт.

5

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, relief valve inner, units C, D and J

1шт.

6

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32, relief valve outer, units C, D and J

1шт.

7

378985R2

BACK-UP RING

relief valve o-ring back-up, units C, D and J, 2 for units B, D & H

1шт.

8

391922R1

PLUG

regulator post, unit C, D and J

1шт.

9

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1-15/32 x 1-11/16 x 7/64, regulator port plug, units C, D and J

1шт.

10

299470R1

SNAP RING,1.625", Int, #162

Ring, Snap, , regulator port plug, units C, D and J 1.625", Int, #162

1шт.

11

383267R92

VALVE

ASSY, hydraulic control, for components see list of parts under details of hydraulic control valve, inner position

1шт.

631994R1

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

SCREW, 3/8-16 x 2-1/2 hex-hd cap

3шт.

12

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, control valve small, 2 for units A, B, C, D, G and H, 4 for units E and J, 2 for units A, B, C, D, G and H, 4 for units E and J

1шт.

13

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 x 3/32, control valve large, units A, B, C, D, G and H, 2 for units E and J

1шт.

14

393362R11

PIPE ASSY, RH front lift, units E, G and J, Farmall tractors with serial no. 28505 & above, International tractors with serial no. 6494 and above.

1шт.

15

384111R91

SUPPORT

ASSY, control lever tube, units A thru F and J

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

SCREW. 3/8-16 x 1-3/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

383234R1

BUSHING,11.14mm ID x 12.71mm OD x 6.35mm L

control lever shaft, units E, G, H and J

1шт.

17

383233R1

BUSHING,19.15mm ID x 20.65mm OD x 9.65mm L

control lever tube, units A thru E and J

1шт.

18

383235R21

BRACKET

SUPPORT ASSY, control lever, units A thru E, H and J

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

19

383236R1

BUSHING,19.15mm ID x 20.65mm OD x 25.4mm L

control lever outer, units A thru E, H and J

1шт.

20

393361R11

PIPE ASSY, RH front drop, units E, G, H and J, Farmall tractors with serial no. 37135 & above, International tractors with serial no. 6375 and above

1шт.

21

393360R91

HOSE ASSY, RH hyd, units E and G, Farmall tractors with serial no. 27135 & above, International tractors with serial no. 6375 and above

2шт.

22

383243R91

ARM

ASSY, valve operating outer, units E, G, H and J

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q875

HEADED PIN,3/8" x 1 5/16"

PIN, 3/8 x 1-5/16 headed

1шт.

364437R1

PIN,3/16" x 7/8", Coiled

1шт.

23

384112R11

DRIVE ASSY.

ACTUATOR ASSY, valve spool, units A thru D and H, 2 for units G, H & M

1шт.

24

383246R11

TUBE

ASSY, rear lift, units A thru F and J

1шт.

25

371947R91

ELBOW

ASSY, rear lift tube, units A thru F and J

1шт.

26

371948R91

ELBOW ASSY, rear lift tube, units A thru F and J

1шт.

27

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32, units A thru F and J

1шт.

28

364645R1

NUT, 5/8 OD tubing, units A thru F and J

1шт.

29

364646R1

SPACER

SLEEVE, 5/8 OD tubing, units A thru F and J

1шт.

30

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, units A thru F and J

2шт.

31

383247R11

TUBE ASSY, rear drop, units A thru F and J 5.46, 1.25" Length

1шт.

32

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg C-Z hyd flared tube short swivel, units A thru F and J

1шт.

33

378169R1

SCREW,Hex, 7/8" - 14 x 1.62"

PLUG, rear tube inlet union short, units A, B, C, E, G, H and J

2шт.

34

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, unit L, 2 for units A thru D, F and G, 4 for units E and J

1шт.

35

384376R1

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

15/16 x 1-1/16 x 1/16, unit L, 2 for units A, C and G, 4 for units B, D and F, 6 for units E and J

1шт.

36

393359R11

TUBE ASSY, RH drop, units E and G, Farmall tractors with serial no. 27135 & above, International tractors with serial no. 6375 and above

1шт.

37

393358R11

TUBE ASSY, RH lift, units E and G, Farmall tractors with serial no. 28505 & above, International tractors with serial no. 6494 and above

1шт.

38

378256R1

BOLT,Hex, 7/8" - 14 x 2.71"

PLUG, LH tube inlet union long, units B, D, E, F and J

2шт.

39

369758R11

CLAMP ASSY, manifold tube, units B, D, F and G, 2 for units E and J

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 x 7/8 hex-hd cap, units B, D, F and G, 2 for units E and J

1шт.

40

384385R11

STRAP, clamp mounting, units B, D, E, F, G and J

1шт.

41

393357R91

HOSE,12.7mm ID x 358.14mm L, SAE 100R1

ASSY, LH drop & lift, units B, E and F, Farmall tractors with serial no. 26695 & above, International tractors with serial no. 6351 and above

1шт.

42

393356R11

TUBE ASSY, LH drop, units B, E and F, Farmall tractors with serial no. 26695 & above, International tractors with serial no. 6351 and above

1шт.

43

393355R11

TUBE ASSY, LH lift, units B, E and F, Farmall tractors with serial no. 6351 and above

1шт.

44

390826R92

VALVE

ASSY, hyd control, outer position, for components see list of parts under details of hydraulic control valve, units B, E and F, Farmall tractors with serial no. 23001 & above, International tractors with serial no. 5701 & above

1шт.

45

385089R11

PIPE ASSY, LH front drop, units B, D, E and F 0.625" OD, 5.26, 3.83" Length

1шт.

46

385090R11

PIPE ASSY, LH front lift, units B, D, E and F 0.625" OD, 6.71, 5.73" Length

1шт.

47

389605R1

BRACKET

float lockout, Farmall tractors with serial no. 14500 & above, International tractors with serial no. 3400 & above

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

48

391675R1

CYLINDER END CAP

CAP, control valve end cover, tractors with power beyond

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

SCREW, 3/8-16 x 1-3/8 hex-hd cap

2шт.

49

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

90 deg str thd-for 5/8 tube, 2 for units B, D, E and F, 4 for units E and J

1шт.

50

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 2 for units B, D, E and F, 4 for units E and J

1шт.

51

385093R1

ANCHOR

STRIP, pipe clamp, 2 for units B, D, E and F, 4 for units E and J

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex., 2 for units B, D, E and F, 4 for units E and J

1шт.

52

1282338C91

COUPLING, QUICK, FEM

COUPLING ASSY, hyd self-sealing, female, only serviceable item is o-ring, 385713R1, will work for 374780R92, 388986R91, 388988R91, & 390831R91, 2 for units A, C, F, G and H, 4 for units B and D, 6 for units E and J (Replaces 395150R91)

1шт.

53

401757R11

PLUG

CAP, hyd self-sealing coupling dust, will work for 373220R1, 2 for units A, C, F, G and H, 4 for units B & D, 6 for units E and J

1шт.

54

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg C-Z, 2 for units A, C, F, G and H, 4 for units B and D, 6 for units E and J

1шт.

55

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 33/32, 4 for units A, C, F, G and H, 8 for units B and D, 12 for units E and J

1шт.

56

20641R1

SCREW

5/16-18 x 1-3/8 hex-hd mach, adjusting screw

2шт.

57

387846R91

MANIFOLD

PIPE ASSY, second rear manifold, unit H

1шт.

102635

NUT,3/8"-16, G5

2шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

58

9410356

PLUG

7/16-20 C-Z str thd o-ring boss, 2 for unit H

1шт.

59

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 2 for unit H

1шт.

60

371357R91

ELBOW

second rear manifold drop pipe, unit H

1шт.

61

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 2 for unit H

1шт.

62

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/16-14 C-Z 37 deg hyd flared tube short swivel, unit H

1шт.

63

387849R1

BRACKET, junction block mounting, unit H

1шт.

64

389164R12

BASE

ASSY, auxiliary valve inner handle, units A thru E and J, Farmall tractors with serial no. 14500 & above, Interrnational tractors with serial no. 3400 & above

1шт.

Q875

HEADED PIN,3/8" x 1 5/16"

PIN, 3/8 x 1-5/16 headed

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

65

389166R12

BASE

ASSY, auxiliary valve outer handle, units E, G, H and J, Farmall tractors with serial no. 14500 & above, International tractors with serial no. 3400 & above.

1шт.

66

389165R1

SHAFT

HANDLE, auxiliary valve control inner, units A thru E and J, Farmall tractors with serial no. 14500 & above, International tractors with serial no. 3400 & above

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

67

389167R1

LEVER

HANDLE, auxiliary valve control outer, units E, G, H and J,. Farmall tractors with serial no. 14500 & above, International tractors with serial no. 3400 & above

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

68

389168R1

KNOB

auxiliary valve control handle, units A thru D, G and J, 2 for units E and J, Farmall tractors with serial no. 14500 & above, International tractors with serial no. 3400 & above.

1шт.

69

398316R1

COVER ASSY

COVER, control valve end, will work for 391673R1, tractors with power beyond

1шт.

186290

BOLT (SPREADER)

SCREW, 3/8-16 x 6 hex-hd cap

1шт.

20159R1

BOLT,Hex, 3/8" - 16 x 5 1/8", Gr 8

SCREW, 3/8-16 x 5-18/ hex-hd cap

2шт.

70

391674R1

GASKET

control valve end cover cap, tractors with power beyond

1шт.

385947R92

PARTS ACCESSORY, float lockout, Farmall tractors up to serial 14499, International tractors up to serial no. 3399, consists of ref nos. 56, 73 and attaching hardware

1шт.

389603R91

PARTS ACCESSORY, float lockout, Farmall tractors with serial no. 14500 & above, International tractors with serial no. 3400 & above, consists of ref nos. 56, 72 and attaching hardware

1шт.

398315R91

COVER ASSY

PARTS ACCESSORY, power beyond, will work for 391672R92, for tractors equipped with double auxiliary hyd valve attachment, consists of ref nos. 12, 13, 69, 70, 71 and attaching hardware

1шт.
