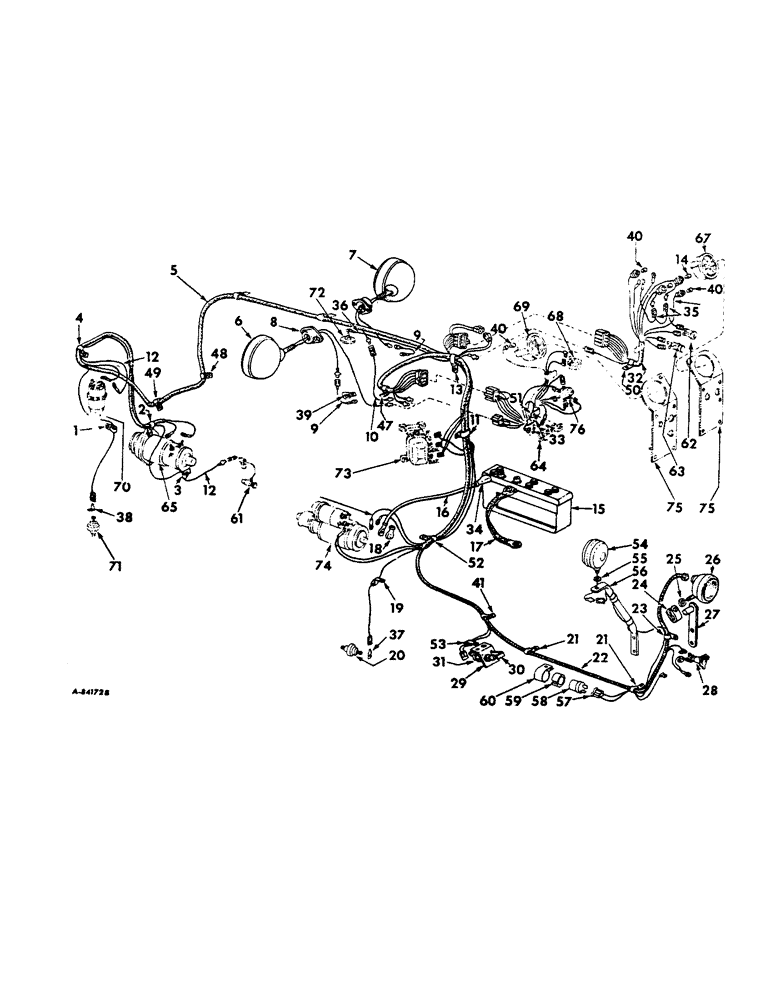

Запчасти Case IH 806 (G-18) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, FARMALL CARBURETED ENGINE TRACTORS WITH GENERATOR (06) - ELECTRICAL SYSTEMS

1

370535R1

CLIP

cable, on valve cover front upper mounting bolt

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness, on generator or alternator adjustment bolt

1шт.

3

366460R1

CABLE CLIP

CLIP, cable, on generator rear mounting bolt

1шт.

4

370821R1

CLIP,ELECTRICAL

CLIP, cable harness, on water outlet housing LH mounting bolt

1шт.

5

384467R91

HARNESS ASSY, front main cable, engine serial no. 5405 & below

1шт.

5

393564R91

HARNESS ASSY, front main cable, engine serial no. 5451 & above

1шт.

6

382722R91

LIGHT ASSY, sealed beam head, LH, only serviceable item is sealed beam unit, 371443R91

1шт.

6

387728R91

LIGHT

ASSY, sealed beam head, LH, only serviceable item is sealed beam unit, 371443R91, tractors with shockproof lights

1шт.

120371

NUT,1/2"-20, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/6 x .095 C-Z

1шт.

7

382723R91

LIGHT ASSY, sealed beam head, RH, only serviceable item is sealed beam unit, 371443R91

1шт.

7

387728R91

LIGHT

ASSY, sealed beam head, RH, only serviceable item is sealed beam unit, 371443R91, tractors with shockproof lights

1шт.

120371

NUT,1/2"-20, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120396

WASHER

17/32 x 1-1/16 x .095 C-Z

1шт.

8

382406R1

SUPPORT

BRACKET, head light mounting

2шт.

113911

SCREW, 5/16-18 x 1/2 slt-f-hd mach

4шт.

9

405209R1

CABLE

ASSY, head light to ground, replaces 370387R91

2шт.

10

383595R91

CABLE ASSY, harness to head light junction

1шт.

11

384557R1

CLIP

front & rear main harness

1шт.

12

384742R91

CABLE ASSY, fuel shut-off solenoid junction, gasoline, engine serial no. 5450 & below

1шт.

13

399657R1

CLIP

front & rear main harness

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

14

9412348

BULB,C2B, #257, 14V

LAMP, no. 257 12 volt, oil & lamp tellite flasher

2шт.

15

392236R91

BATTERY, Prestolite 3EE-A8Z, 12 volt

1шт.

16

383615R91

CABLE

ASSY, battery to solenoid switch

1шт.

356062R91

BOLT

ASSY, battery cable

1шт.

17

378326R91

CABLE

STRAP ASSY, Serial Range: battery-ground

1шт.

18

364910R1

BOOT

COVER, battery terminal

1шт.

19

384556R1

CLAMP

CLIP, transmisison oil pressure switch cable

1шт.

20

376855R92

SWITCH

transmission oil pressure

1шт.

21

384558R1

CLIP

rear main cable harness

2шт.

22

384466R91

HARNESS ASSY, rear main cable, up to serial no. 33162

1шт.

22

385010R91

HARNESS ASSY, rear main cable, serial no. 33163 & above

1шт.

23

384554R1

CLIP

cable harness, on rear light bracket upper mounting bolt

1шт.

24

350920R1

CLAMP

combination rear light

1шт.

25

365503R1

SPACER

combination rear light

1шт.

26

377102R91

NO LONGER SERVICED

LIGHT ASSY, combination rear & tail, only serviceable items are sealed beam unit, 371461R91 & lamp 455490

1шт.

102637

NUT,1/2"-13, G5

1шт.

27

382407R11

BAR

BRACKET ASSY, rear light

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

28

370378R91

SOCKET

ASSY, breakaway connector

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

29

384045R1

SUPPORT

BRACKET, safety starting switch

1шт.

14991R1

BOLT

3/8-16 x 5/8 short sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

1шт.

30

384046R1

STEM

ROD, safety starting switch

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 cot.

1шт.

16558R1

WASHER

17/64 x 5/8 x .065

1шт.

31

382728R91

SWITCH

ASSY, safety starting

1шт.

32

383609R91

HARNESS

ASSY, panel cable RH, gasoline

1шт.

32

383611R91

HARNESS ASSY, panel cable RH, LP gas

1шт.

33

383607R91

HARNESS

ASSY, panel cable LH

1шт.

34

383618R1

COVER

battery cable terminal

1шт.

35

383596R91

CABLE

ASSY, key switch to gauge cluster junction, gasoline

1шт.

35

383597R91

CABLE ASSY, key switch to gauge cluster junction, LP gas

1шт.

36

383593R91

CABLE ASSY, fuel gauge sending unit to multiple connector, gasoline

1шт.

37

384396R1

SPADE TERMINAL,Male

TERMINAL, transmission oil pressure switch straight

1шт.

38

365501R1

TERMINAL CONNECTOR

TERMINAL, engine oil pressure switch angle

1шт.

39

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, head light cable, on steering and gear selector support

2шт.

40

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12 volt, tachometer & gauge cluster, 3 for gasoline engine tractors, 2 for LP gas engine tractors

3шт.

41

366460R1

CABLE CLIP

CLIP, rear cable harness, on rear frame cover LH front mounting bolt

1шт.

47

370383R1

CLIP

rear main harness, on steering and gear selector support LH front mounting bolt

1шт.

48

384559R1

CLIP

front main harness, on fuel tank lower rear mounting bolt

1шт.

49

384559R1

CLIP

front main harness, on LH fuel tank support front mounting bolt

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

50

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, RH panel harness, on range transmission selector drive shaft bushing rear mounting bolt

1шт.

51

384557R1

CLIP

LH panel harness, on junction block RH mounting stud

1шт.

52

362123R1

CLIP

rear main harness, on clutch housing cover RH front housing bolt

1шт.

53

366460R1

CABLE CLIP

CLIP, safety switch cable

1шт.

54

394129R91

LIGHT

ASSY, flashing warning

1шт.

120371

NUT,1/2"-20, G5

Only servicable items are lamp, 9417866 and lens, guide, 396585R1 lens, Dietz, 899280R1 1/2"-20, G5

1шт.

55

394262R1

WASHER

GASKET, flashing warning light

1шт.

56

394135R1

BRACKET, flashing light

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

57

394130R91

CABLE ASSY, Serial Range: flasher-light

1шт.

58

394132R91

FLASHER UNIT

FLASHER, warning light

1шт.

59

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

60

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

61

REF

INSTRUCTION

VALVE ASSY, fuel shutoff, refer to carburetor listing section E

1шт.

62

REF

INSTRUCTION

SWITCH ASSY, ignition, refer to engine controls and instruments listing, section H

1шт.

63

REF

INSTRUCTION

HOUSING ASSY, fuse, refer to engine controls and instruments listing, section H

1шт.

64

REF

INSTRUCTION

BLOCK ASSY, junction, refer to engine controls and instruments listing, section H

1шт.

65

REF

INSTRUCTION

GENERATOR ASSY, refer to generator listing, this section

1шт.

67

REF

INSTRUCTION

CLUSTER ASSY, gauge, refer to engine controls and instruments listing, section H

1шт.

68

REF

INSTRUCTION

SWITCH ASSY, pushbutton, refer to engine controls and instruments listing, section H

1шт.

69

REF

INSTRUCTION

TACHOMETER ASSY, refer to engine controls and instruments listing section H

1шт.

70

REF

INSTRUCTION

COIL ASSY, ignition, refer to spark plugs, coil, cables and distributor listing, this section

1шт.

71

REF

INSTRUCTION

SWITCH ASSY, engine oil pressure, refer to crankcase and related parts listing, section C

1шт.

72

REF

INSTRUCTION

SENDING UNIT ASSY, fuel gauge, refer to fuel tank supports and piping listing, section E

1шт.

73

REF

INSTRUCTION

REGULATOR ASSY, voltage, refer to voltage regulator listing, this section

1шт.

74

REF

INSTRUCTION

MOTOR ASSY, cranking, refer to cranking motor listing, this section

1шт.

75

REF

INSTRUCTION

PANELS, instrument LH and RH, refer to engine controls and instruments listing, section H

1шт.

76

REF

INSTRUCTION

SWITCH ASSY, lighting, refer to engine controls and instruments listing, section H

1шт.

395470R1

CABLE ASSY, alternator duel charge & load circuit, tractors w/air conditioned cab

1шт.

394473R91

CABLE ASSY, flashing warning light jumper, used to provide a means of omitting flashing feature of the warning light

1шт.
