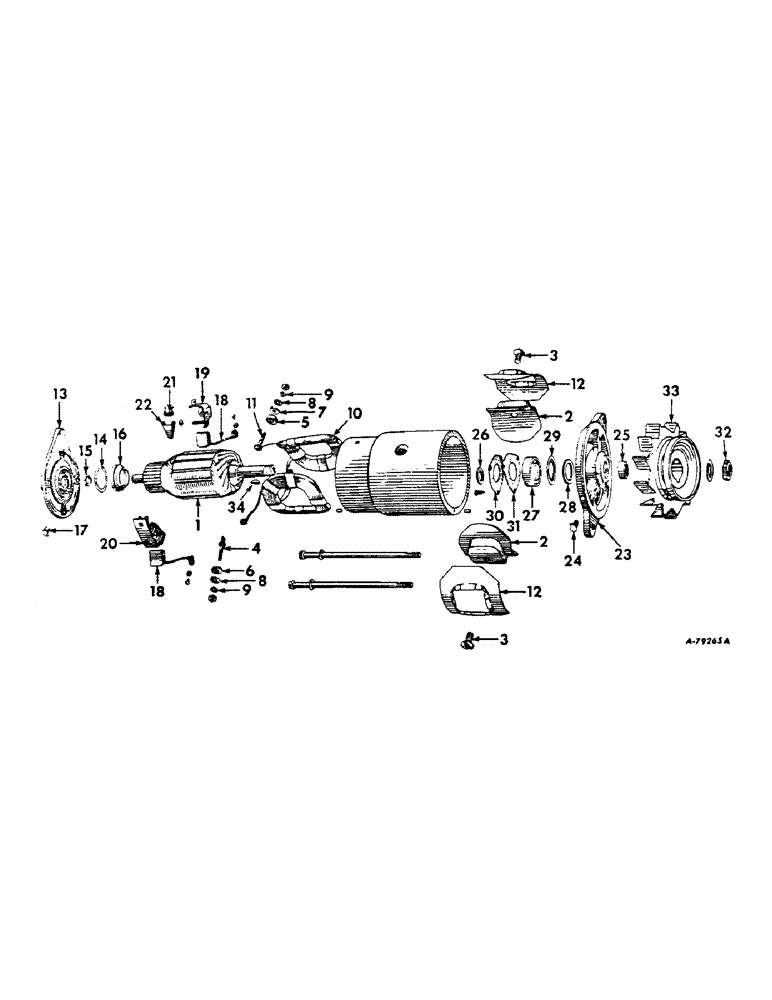

Запчасти Case IH 806 (G-12) - ELECTRICAL SYSTEM, GENERATOR, DELCO REMY (06) - ELECTRICAL SYSTEMS

1100447

GENERATOR ASSY, 392959R91, 12 volt

1шт.

87297306

REMAN-GENERATOR

Remanufactured Generator

1шт.

87297307

CORE-GENERATOR

Return Number, Generator

1шт.

103814A1R

REMAN-GENERATOR

Generator

1шт.

103814A1C

CORE-GENERATOR

Return Number

1шт.

103816A1R

REMAN-GENERATOR

Generator

1шт.

103816A1C

CORE-GENERATOR

Return Number

1шт.

1

1967252

ARMATURE

ARMATURE

1шт.

2

1931258

SHOE, pole

2шт.

3

1913960

SCREW

SCREW, pole shoe

2шт.

4

1923284

STUD

STUD, terminal armature

1шт.

5

1885090

BUSHING

BUSHING, field terminal insulating

1шт.

6

1921362

BUSHING

BUSHING, armature terminal

1шт.

7

1858753

WASHER

WASHER, terminal stud insulating

1шт.

8

1881409

WASHER

WASHER, terminal stud

2шт.

9

1904661

LOCK WASHER

WASHER, field terminal stud lock

2шт.

10

1944165

COIL

COIL ASSY, field

1шт.

11

1858749

PLUG

STUD, field terminal

1шт.

12

1914491

INSULATOR, field coil

1шт.

13

1951512

HOUSING

FRAME ASSY, commutator end, composed of (1) dowel 809062, (1) frame (NSS), (1) oiler 1880635, (1) retainer 1947337, (1) seal 1945697, (1) wick 1947350

1шт.

14

1947350

WICK

WICK, commutator end oil

1шт.

15

1945697

GUARD ASSY.

SEAL, commutator end oil

1шт.

16

1953202

RETAINER, commutator end oil seal

1шт.

17

NLS

NO LONGER SERVICED

OILER, 1/4 spring hinge lid oil

1шт.

18

1932506

BRUSH, COMMUTATOR

BRUSH BRUSH

2шт.

19

1925378

NOZZLE HOLDER

PACKAGE, ground brush holder

1шт.

225-14112

NUT,#12-24

no. 12-24 C-Z hex.

1шт.

132979

SPARE PART SCREW, no. 12-24 x 5/8 C-Z slt-rd-hd mach.

1шт.

131184

CONNECTING LINK

WASHER, no. 12 C-Z med lock

1шт.

20

1925379

NOZZLE HOLDER

PACKAGE, insulated brush

1шт.

121743

CHAIN,#12 - 24

no. 12-24 C-Z hex.

1шт.

132979

SPARE PART SCREW, no. 12-24 x 5/8 C-Z slt-rd-hd mach.

1шт.

131184

CONNECTING LINK

WASHER, no. 12 C-Z med lock

1шт.

21

1916324

VALVE SPRING

SPRING, brush

2шт.

22

1944373

NOZZLE HOLDER

ARM BRUSH

2шт.

23

1953882

COVER ASSY

FRAME W/OILER, pin & wock, drive end

1шт.

24

125609

OILER

OILER, drive end

1шт.

823551

WICK, oiler

1шт.

25

1858603

BUSHING

COLLAR, drive end space

1шт.

26

809945

BUSHING

WASHER, drive end space

1шт.

27

907503

BEARING

BEARING, drive end ball

1шт.

28

809961

FELT

WASHER, drive end felt

1шт.

29

819104

WASHER

PLATE, drive end felt retainer

1шт.

30

1911263

LARGE PLATE

PLATE, LARGE PLATE, drive end retainer

1шт.

31

1912008

FELT

GASKET, drive end and retainer plate

1шт.

32

1911324

NUT

NUT, drive end shaft

1шт.

33

1944437

FAN

FAN AND PULLEY, generator

1шт.

Ref #33, 1944437 is only the fan. Pully part number is 1949358.

1шт.
