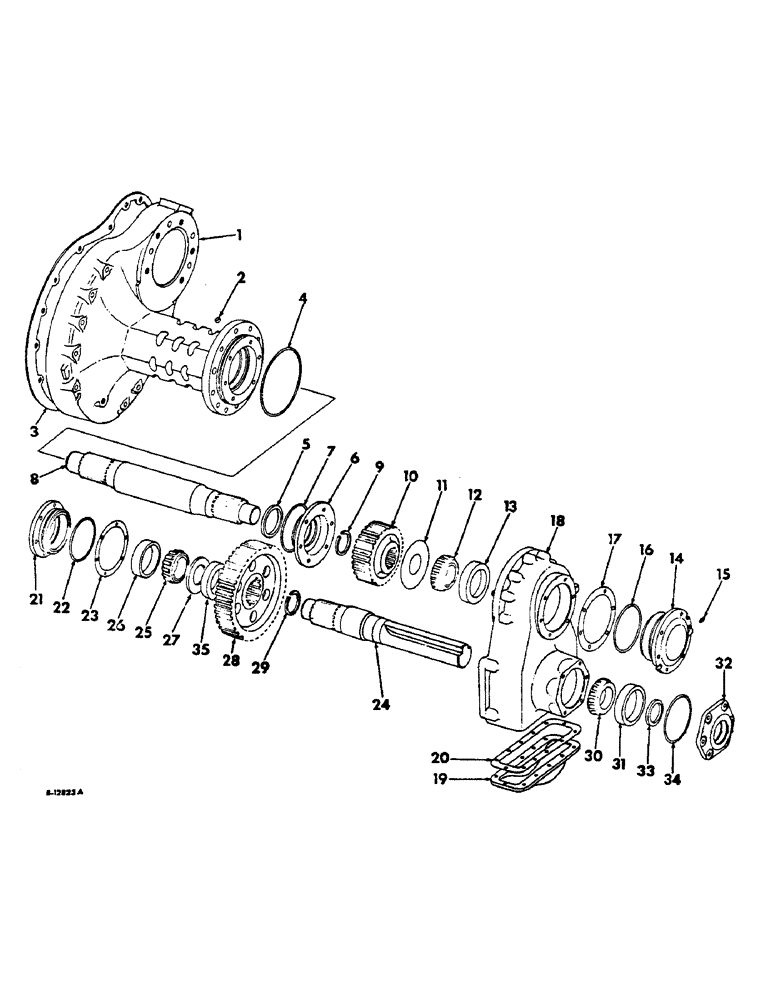

Запчасти Case IH 806 (B-14) - POWER TRAIN, REAR AXLE, FARMALL HI-CLEAR TRACTORS (03) - POWER TRAIN

1

382856R11

CARRIER

ASSY, rear axle housing

2шт.

444746

PLUG,Sq Hd, 1/2"-14 NPTF

1/2-14 automotive sq-hd

2шт.

20890R1

SCREW

w/nylon pellet, 3/4-10 x 2-1/4 hex-hd cap

22шт.

271568

PIPE FITTING,Hex, 5/8" - 11 x 3 1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 hex-hd cap

28шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

5/8-11 x 4-1/4 hex-hd cap

8шт.

109457

LUBE NIPPLE,65 Degree, 5/16" NPT x .70" lg, Drive

FITTING, 5/16 65 deg angle drive type

2шт.

2

382857R1

PLUG, rear axle housing carrier

2шт.

3

380225R1

GASKET

rear axle housing carrier

2шт.

4

286967R1

O-RING

9-1/4 x 9-1/2 x 1/8, right axle housing carrier

2шт.

5

380157R91

OIL SEAL

SEAL, rear axle drive gear oil

2шт.

6

382858R1

HUB

RETAINER, rear axle drive gear oil seal

1шт.

7

290064R1

RING

O-RING, 6-1/4 x 6-1/2 x 1/8, drive gear oil seal retainer

2шт.

8

382859R1

SHAFT

rear axle drive gear

2шт.

9

380220R1

SNAP RING,#362, 3.423, Ext

RING, rear axle driven gear retainer snap

2шт.

10

382861R1

GEAR

rear axle drive, 32 T

2шт.

11

382878R1

SHIM

RETAINER, drive gear shaft outer brg grease

2шт.

12

74737R91

BEARING ASSY

ASSY, drive gear shaft outer cone

2шт.

13

71455R1

BEARING ASSY,136.53mm OD x 31.75mm W

BEARING, drive gear shaft outer cupt

2шт.

14

382880R1

CAP

drive gear shaft outer brg

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

12шт.

15

126098

FITTING

5/16 drive-type str lub

2шт.

16

290064R1

RING

O-RING, 6-1/4 x 6-1/2 x 1/8, drive gear shaft outer brg cap

2шт.

17

382882R1

SHIM

drive gear shaft outer brg cap .007

1шт.

17

382883R1

SHIM

drive gear shaft outer brg, .012

1шт.

17

382884R1

SHIM, drive gear shaft outer brg, .0299

1шт.

17

382885R1

SHIM

drive gear shaft outer brg, .0040 or .0050

1шт.

18

382886R11

HOUSING

ASSY, rear axle

2шт.

20164R1

PIN, 7/8 x 2-1/4 dowel

2шт.

444678

PLUG

1-11-1/2 automotive sq-soc-hd pipe

2шт.

19

382887R11

PAN, ENGINE OIL

PAN ASSY, rear axle housing

2шт.

445686

PLUG

3/8-18 automotive sq-hd pipe

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

24шт.

20

382888R1

GASKET

rear axle housing pan

2шт.

21

382889R1

CAP

rear axle inner bearing

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

12шт.

22

252741R1

O-RING

5-3/4 x 6 x 1/8, rear axle inner brg cap

2шт.

23

382891R1

SHIM

rear axle inner bearing, .007

1шт.

23

382892R1

SHIM

rear axle inner bearing, .012

1шт.

23

382893R1

SHIM

rear axle inner bearing, .0299

1шт.

23

382894R1

SHIM

rear axle inner brg., .0040, .0050

1шт.

24

382895R1

SHAFT

AXLE, rear

2шт.

25

204811R91

BEARING

ASSY, rear axle inner cone

2шт.

26

983416R1

BEARING CUP

BEARING, rear axle inner cup

2шт.

27

384304R1

SPACER

SPACER, rear axle

2шт.

28

383644R1

PINION

GEAR, rear axle drive, 52 T

2шт.

29

380220R1

SNAP RING,#362, 3.423, Ext

RING, right axle driven gear retainer snap

2шт.

30

141377H

BEARING CONE

BEARING ASSY, rear axle outer cone

2шт.

31

11350D

BEARING

rear axle outer cup

2шт.

32

382899R1

CAP

rear axle outer bearing

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

12шт.

33

378077R91

OIL SEAL

rear outer bearing cap oil

2шт.

34

264681R1

O-RING,0.139" Thk x 6.48" ID, -260, Cl 5, 75 Duro

6-1/2 x 6-3/4 x 1/8, right angle outer brg cap

2шт.

35

387037R1

SPACER

rear axle gear

2шт.
