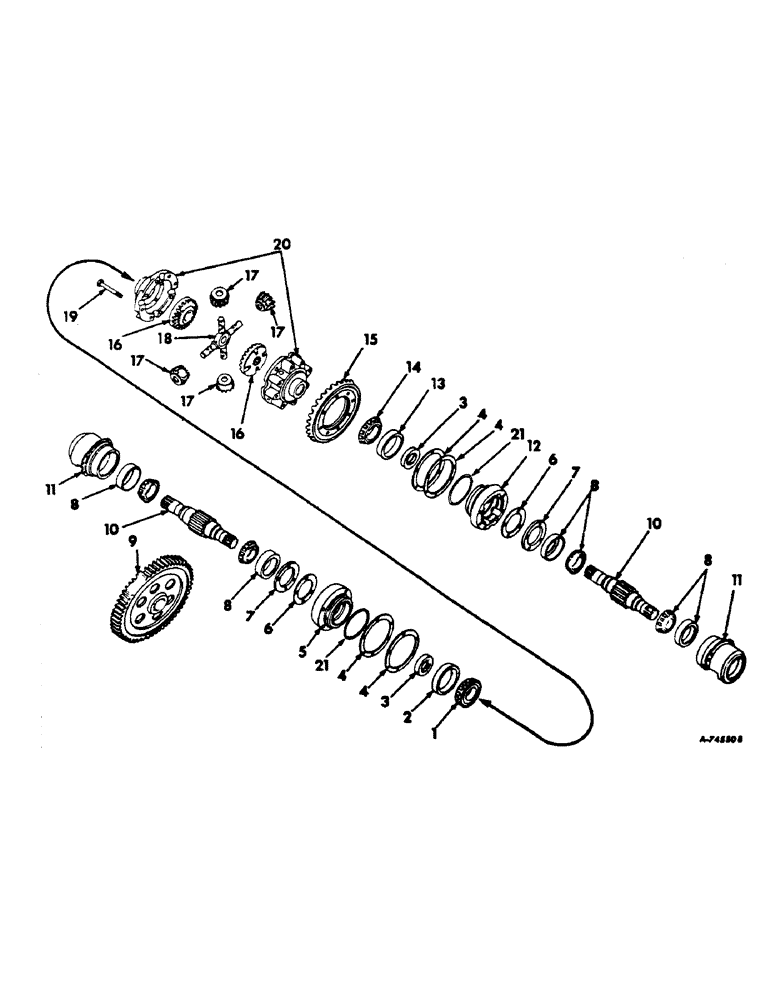

Запчасти Case IH 806 (B-09) - POWER TRAIN, DIFFERENTIAL (03) - POWER TRAIN

1

ST2129

BEARING ASSY,77.79mm ID x 23.01mm W

BEARING, differential roller LH cone

1шт.

2

ST988

BEARING CUP,121.44mm OD x 17.46mm W

BEARING, differential roller LH cup

1шт.

3

380200R91

SEAL

differential roller brg retainer oil

2шт.

4

380202R1

SHIM

differential roller brg retainer light

4шт.

4

380203R1

SHIM

differential roller brg retainer med.

1шт.

4

380204R1

SHIM

differential roller brg retainer HV

1шт.

4

380205R1

SHIM

differential roller brg retainer extra light

1шт.

4

385155R1

SHIM

differential roller brg retainer .0025, .0035

1шт.

5

384086R2

RETAINER, differential roller brg LH

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 hex-hd cap

6шт.

6

380209R1

SHIM

bull pinion shaft brg retainer, (or as required)

2шт.

7

380210R1

RETAINER

bull pinion shaft brg

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

8шт.

8

ST2138

BEARING ASSY

bull pinion & brake shaft

4шт.

9

384075R1

GEAR

bull, 73T

2шт.

10

380206R1

SHAFT, bull pinion & frame, 13T, Farmall tractors up to serial no 23000, International tractors up to serial no. 5700

2шт.

10

393104R1

SHAFT

bull pinion & brake, 13T, Farmall tractors with serial no. 23010 & above, International tractors with serial no, 5701 & above.

2шт.

10

385944R1

SHAFT, bull pinion & brake, 13T, Farmall hi-clear tractors up to serial no. 23251

2шт.

10

394126R1

SHAFT

bull pinion & brake, 13T, Farmall hi-clear tractors with serial no. 23252 & above

2шт.

11

380208R1

CAGE, bull pinion shaft brg.

2шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

SCREW, 1/2-13 x 1-3/8 hex-hd cap

12шт.

12

380199R2

RETAINER, differential roller brg RH

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 hex-hd cap

6шт.

13

ST990

TAPERED BEARING,3.0625" ID x 4.625" OD x 1"

BEARING, differential roller RH cup

1шт.

14

ST2133

BEARING ASSY,3.0625" ID x 4.625" OD x 1"

BEARING, differentail roller RH cone

1шт.

15

380191R1

GEAR

drive bevel, 49 T, Farmall tractors up to serial no. 23000, International tractors up to serial no. 5700

1шт.

15

GEAR, drive bevel, 49 T, order matched set of bevel gears, 395828R91, Farmall tractors with serial no. 23001 & above, International tractors with serial no. 5701 & above.

1шт.

15

380132R1

GEAR

drive bevel, 49 T, Farmall hi-clear tractors

1шт.

16

380190R1

GEAR

differential bevel, 28 T

2шт.

17

361061R1

GEAR

PINION, differential bevel, 15 T

4шт.

18

393637R1

SPIDER

differential

1шт.

19

55972DA

BOLT,1/2" - 20 x 4 1/2"

differential case

12шт.

381368R1

NUT,Hex, 1/2" - 20, Gr 8

differential case bolt

12шт.

20

380187R91

CASE

ASSY, differential

1шт.

21

3061207R1

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

6-1/4 x 6-1/8 x 1/8, differential brg retainer

2шт.

395828R91

SET

BEVEL GEARS, matched set, consists of (1) gear 388916R1 (NSS), (1) shaft 388915R1 (NSS), (1) tag 1082563R1 (NSS)

1шт.
