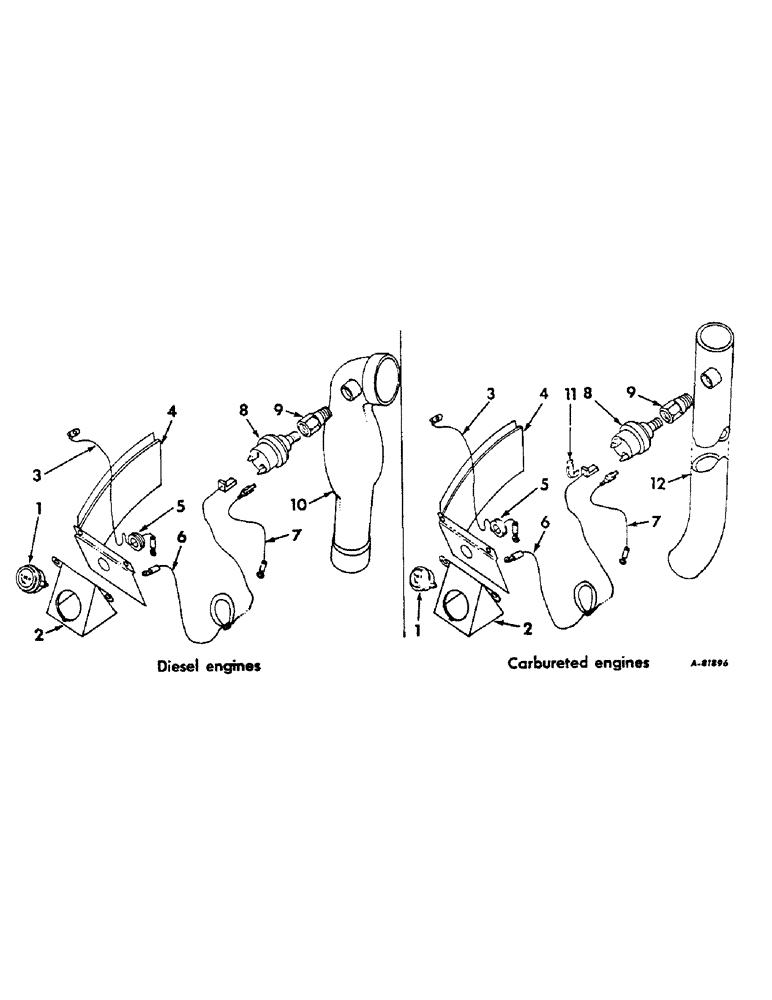

Запчасти Case IH 806 (E-37) - FUEL SYSTEM, ELECTRIC AIR CLEANER INDICATOR (02) - FUEL SYSTEM

390852R91

PARTS ACCESSORY, electric air cleaner indicator, diesel engine tractors

1шт.

391254R91

PARTS ACCESSORY, electric air cleaner indicator, carbureted engine tractors

1шт.

1

389871R91

GAUGE

INDICATOR ASSY, electric air cleaner

1шт.

2

392408R1

HOUSING

electric air cleaner indicator

1шт.

3

389911R91

CABLE ASSY, push button switch to electric air cleaner indicator, carbureted engine tractors

1шт.

3

405217R1

CABLE ASSY, push button switch to electric air cleaner indicator, replaces 390840R91, diesel engine tractors

1шт.

4

389907R1

HOUSING, steering support lower LH

1шт.

5

117959

GROMMET,5/16" ID x .719" x .062"

rubber electric air cleaner indicator cables

1шт.

6

405214R1

CABLE ASSY, electric air cleaner indicator to vacuum switch, replaces 389982R1

1шт.

7

405211R1

CABLE PULLING GRIP

CABLE ASSY, vacuum switch to ground, replaces 377120R92

1шт.

8

389682R91

SWITCH

electric air cleaner vacuum

1шт.

9

389908R91

ADAPTER

ASSY, vacuum switch

1шт.

10

389912R3

INTAKE AIR HOSE

Air Cleaner Outlet

1шт.

11

366460R1

CABLE CLIP

CLIP, cable

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

389910R21

PIPE ASSY, air, Serial Range: cleaner-carburetor

1шт.
