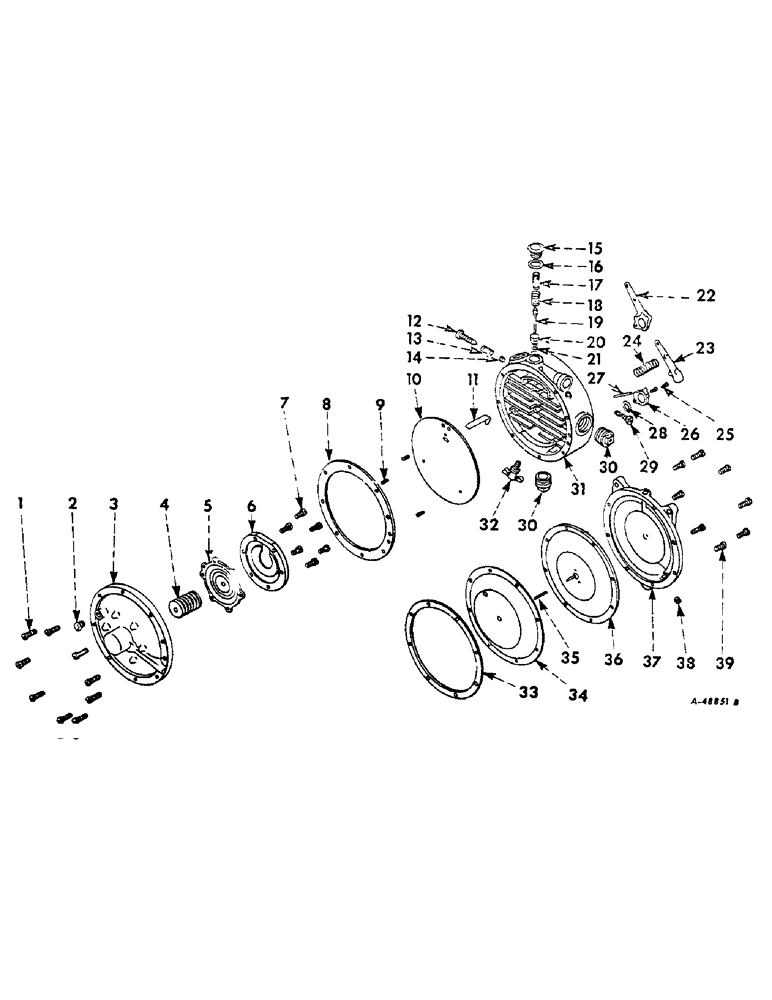

Запчасти Case IH 806 (E-17) - FUEL SYSTEM, FUEL REGULATOR, LP GAS ENGINE TRACTORS (02) - FUEL SYSTEM

382044R91

REGULATOR ASSY, fuel

1шт.

1

19270R91

SCREW W/SPRING LOCK WASHER, 10-32 x 5/8 cd-pltd slt-fil-hd mach

9шт.

2

444814

PLUG,Hex Hd, 1/8"-27, Brass

1/8 pipe

1шт.

3

277195R91

COVER W/PLUG, 13071R1, vaporizer

1шт.

4

277196R91

SPRING ASSEMBLY, high pressure

1шт.

5

277370R91

DIAPHRAGM ASSY, high pressure

1шт.

6

277197R1

COVER, high pressure diaphragm

1шт.

7

19270R91

SCREW W/SPRING LOCK WASHER, 10-32 x 5/8 cd-pltd slt-fil-hd mach

6шт.

8

277198R1

GASKET, vaporizer cover

1шт.

9

277199R1

SCREW, vaporizer partition plate

3шт.

10

277350R1

PLATE, vaporizer partition

1шт.

11

277351R1

LEVER, high pressure valve

1шт.

12

37179D

SCREW, idle adjusting

1шт.

13

14526D

SPRING, idle adjusting screw retainer

1шт.

14

277352R1

SCREW, 8 Bleed, no. 60

1шт.

15

277353R1

RETAINER, high pressure valve spring

1шт.

16

277354R1

GASKET, high pressure valve spring retainer

1шт.

17

277355R1

SPRING, high pressure valve

1шт.

18

277356R1

SPRING, high pressure valve seat retainer

1шт.

19

277357R1

VALVE, high pressure

1шт.

20

277358R91

SEAT ASSY, high pressure valve

1шт.

21

359600R1

GASKET

SEAL, high pressure valve seat

1шт.

22

NSS

NOT SOLD SEPARAT

VALVE ASSY, low pressure, not serviced separately, order kit, 277369R91

1шт.

23

113443R91

LEVER ASSY, low pressure valve

1шт.

24

277360R1

SPRING, low pressure valve

1шт.

25

19271R91

SCREW W/SPRING LOCK WASHER, 6-32 x 7/16 cd-pltd slt-fil-hd mach

2шт.

26

277361R1

SEAT, low pressure valve

1шт.

27

277362R1

PIN, pivot

1шт.

28

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

SEAL, low pressure valve

1шт.

29

113434R91

STRAINER ASSEMBLY, fuel inlet

1шт.

30

9409948

PLUG,Sq Soc, 3/4"-14 NPTF

3/4-14 automotive sq-soc

2шт.

31

NSS

NOT SOLD SEPARAT

BODY ASSY, requlator, not serviced separately, order regulator assy.

1шт.

32

114981

VALVE

drain

1шт.

33

64433D

GASKET, low pressure partition plate

1шт.

34

277365R1

PLATE, low pressure partition

1шт.

35

277366R1

PIN, diaphragm push

1шт.

36

277367R91

DIAPHRAGM & PUSH PIN ASSY, low pressure

1шт.

37

277368R2

PLATE, support

1шт.

38

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1/8 slt-hd pipe

1шт.

39

19270R91

SCREW W/SPRING LOCK WASHER, 10-32 x 5/8 cd-pltd slt-fil-hd mach

8шт.

277369R91

KIT, fuel regulator overhaul, consists of ref nos. 1, 4, 5, 7, 8, 9, 11, 12, 16, 17 thru 22, 24, 25, 28, 29, 33, 36 & 39

1шт.

382046R91

COMPENSATOR ASSEMBLY

1шт.

373173R1

SNAP RING,0.812", Int, #81

Ring, Snap, , Truarc 0.812", Int, #81

1шт.
