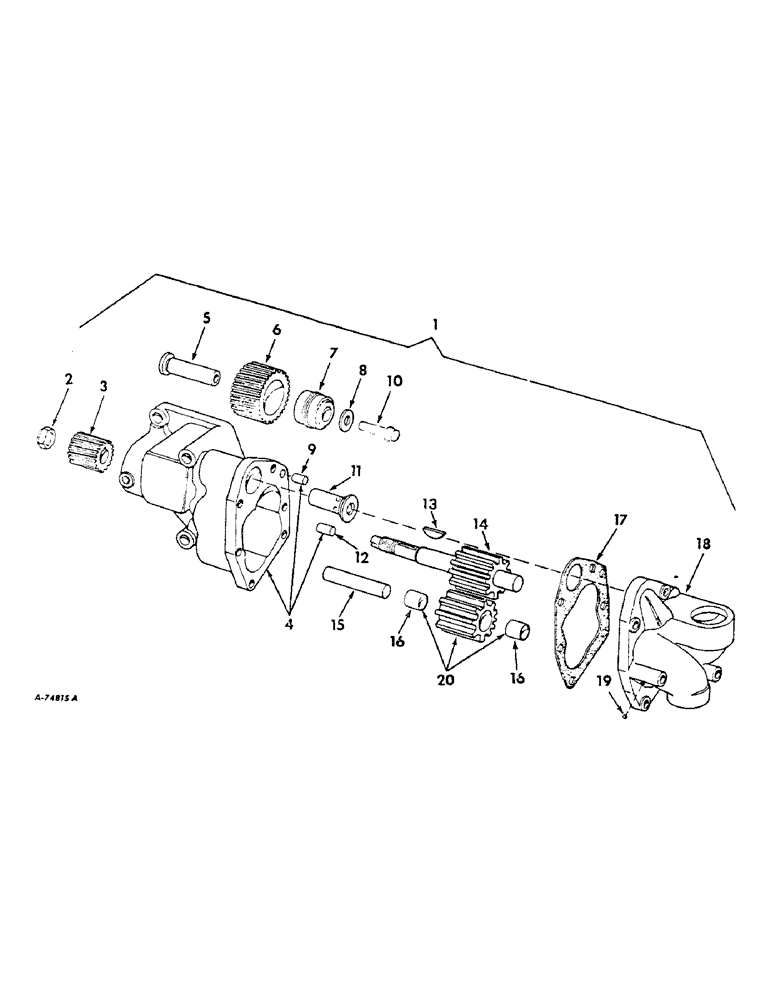

Запчасти Case IH 806 (D-25) - DIESEL ENGINE, OIL PUMP, DIESEL ENGINE TRACTORS (01) - ENGINE

1

601243C91

PUMP

PUMP ASSY, oil

1шт.

2

19263R1

LOCK NUT,Hex, 5/8" - 18

NUT, 5/8-18 ESNA stop

1шт.

3

332523R1

SPARE PART GEAR, oil pump drive

1шт.

4

332521R11

SPARE PART BODY ASSY, oil pump

1шт.

5

332528R1

SHAFT

SHAFT, oil pump drive idler

1шт.

6

332529R1

PINION

GEAR, oil pump drive idler

1шт.

7

347299R91

BEARING ASSY

BEARING ASSY

1шт.

8

332530R1

WASHER

WASHER, shaft

1шт.

9

19841R1

DOWEL,1/4" x 1/2"

PIN, 1/4 x 1/2 dowel

1шт.

10

338774R2

12 PT SCREW,Flg, 3/8"-24 x 1 1/4"

SCREW, retaining

1шт.

11

601135C91

VALVE

VALVE ASSY, oil pump safety relief

1шт.

349055R2

RING

O-RING, safety valve

1шт.

12

345291R1

BUSHING

BUSHING, drive shaft

1шт.

13

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, #5, 1/8" x 5/8", HT

1шт.

14

332522R12

SHAFT

SHAFT W/GEAR, oil pump drive

1шт.

15

332524R1

SHAFT

SHAFT, idler gear

1шт.

16

326768R1

BUSHING

BUSHING, idler gear

2шт.

17

601381C1

GASKET

GASKET, oil pump cover

1шт.

18

332527R21

COVER ASSY

COVER W/BALL, 16006R1, oil pump

1шт.

332527R21R

REMAN-HOUSING

REMANUFACTURED HOUSING - NA Only

1шт.

332527R21C

CORE-HOUSING

Return Number, HOUSING - NA Only

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/8", G5

3шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

BOLT, Hex, 5/16"-18 x 2 1/2", G5

1шт.

179830

BOLT, Hex, 5/16"-18 x 3", G5

1шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

BOLT, Hex, 5/16"-18 x 3 1/2", G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

19

16006R1

BALL

BALL, 3/16 cr-stl

1шт.

20

326767R21

PINION

GEAR ASSY, oil pump idler

1шт.
