Запчасти Case IH 806 (D-21) - DIESEL ENGINE, ENGINE OIL COOLER FILTER AND PUMP PIPING, ENGINE SERIAL NO. D-361 22698 AND BELOW (01) - ENGINE

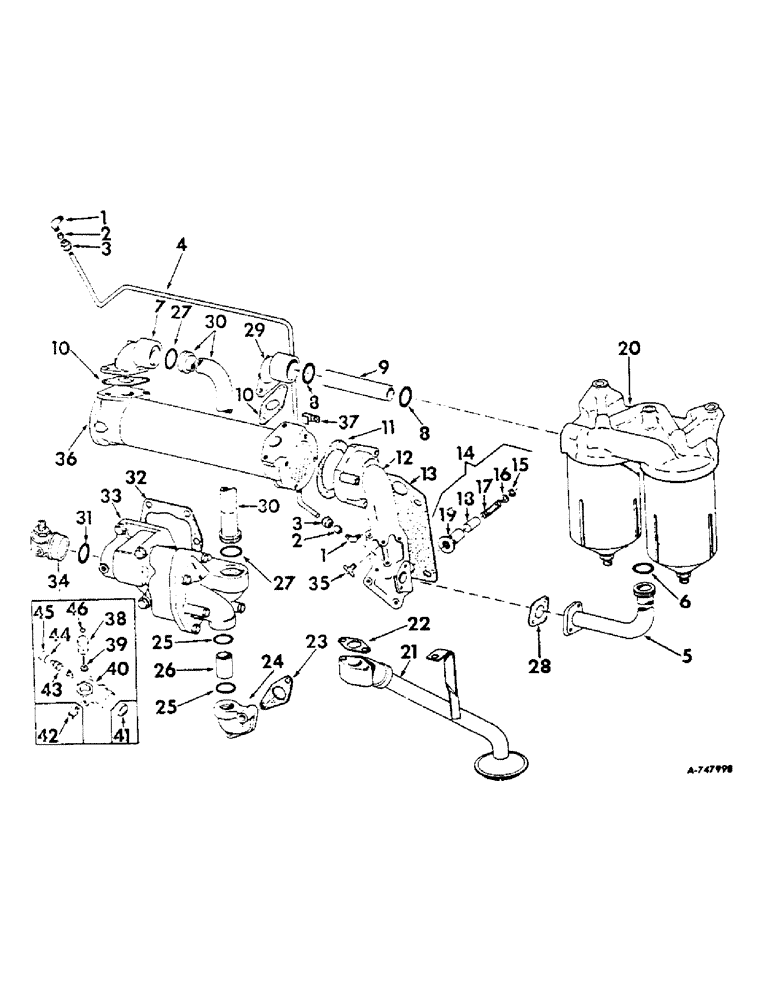

Схема запчастей Case IH 806 - (D-21) - DIESEL ENGINE, ENGINE OIL COOLER FILTER AND PUMP PIPING, ENGINE SERIAL NO. D-361 22698 AND BELOW (01) - ENGINE
2
9
8
27
41
31
20
16
2
33
35
15
27
40
46
10
1
5
7
30
14
4
17
42
29
36
30
18
25
43
44
24
12
10
25
38
3
3
8
23
22
45
39
32
19
34
37
11
6
13
21
28
26
1

Артикул

Название

Примечание

Количество

1

278099R1

CONNECTOR, ELEC

CONNECTOR ELBOW, oil cooler rear heade4r to cylinder head tube

2шт.

2

615092C1

SLEEVE CYLINDER

SLEEVE, oil cooler rear header to cylinder head tube

2шт.

3

615091C1

NUT

NUT, oil cooler rear header to cylinder head tube

2шт.

4

343423R1

TUBE

TUBE, oil cooler rear header to cylinder head

1шт.

5

332564R11

TUBE

TUBE ASSY, filter header to cooler header

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

343398R2

RING

O-RING, 1-1/4 x 1-1/2 x 1/8, filter header to cooler header tube

1шт.

7

332569R1

ELBOW

Union Elbow ELBOW, oil cooler front

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

343396R2

SEALING RING

O-RING, 1-18 x 1-3/8 x 1/8, cooler to filter tube

2шт.

9

332559R1

SPARE PART TUBE, Serial Range: cooler-filter

1шт.

10

326597R1

GASKET

GASKET, oil cooler elbow

2шт.

11

326813R1

GASKET

GASKET, oil, Serial Range: cooler-header

1шт.

12

332557R2

SPARE PART HEADER, pressure regulator valve and rear oil cooler

1шт.

NLS

NO LONGER SERVICED

3шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/2", G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

13

345247R1

GASKET

GASKET, cooler header

1шт.

14

341195R92

VALVE

VALVE ASSY, pressure regulating

1шт.

15

NSS

NOT SOLD SEPARAT

RING, valve spring seat snap, order valve assy, 341195R92

1шт.

16

NSS

NOT SOLD SEPARAT

SEAT, valve spring, order valve assy, 341195R92

1шт.

17

NSS

NOT SOLD SEPARAT

SPRING, valve, order valve assy, 341195R92

1шт.

18

NSS

NOT SOLD SEPARAT

VALVE, pressure regulating, order valve assy, 341195R92

1шт.

19

NSS

NOT SOLD SEPARAT

HOUSING, valve, order valve assy, 341195R92

1шт.

20

REF

INSTRUCTION

FILTER ASSY, lubricating oil, for components see list of parts under details of lubricating oil filter

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

BOLT, 3/8-16 x 1-1/4 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

21

332545R91

INTAKE ASSY

SPARE PART INLET ASSY, oil pump

1шт.

18253R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 ESNA stop

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

22

332549R1

GASKET

GASKET, oil pump inlet

1шт.

23

332544R1

GASKET

GASKET, oil outlet elbow

1шт.

24

332543R1

ELBOW

ELBOW, crankcase oil outlet

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

25

343396R2

SEALING RING

O-RING, 1-1/8 x 1-3/8 x 1/8, oil outlet to pump tube

2шт.

26

332542R1

TUBE

TUBE, crankcase oil, Serial Range: outlet-pump

1шт.

27

343398R2

RING

O-RING, 1-1/4 x 1-1/2 x 1/8, oil pump to oil cooler tube

2шт.

28

332566R1

GASKET

GASKET, filter header to cooler header tube

1шт.

29

332570R1

ELBOW

ELBOW, oil cooler rear

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

30

332553R11

TUBE

TUBE ASSY, Serial Range: pump-cooler

1шт.

31

382781R1

O-RING,1.737" ID x 0.103" Width

O-RING, 1-3/4 x 1-15/16 x 3/32, tachometer drive

1шт.

32

332536R1

GASKET

GASKET, oil pump mounting

1шт.

33

601243C92

PUMP, ENGINE OIL

PUMP ASSY, oil, for components see list of parts under details of oil pump

1шт.

33

735247C91

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

33

1928215C1

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

2шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8-16 x 3-1/2 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

34

341106R93

DRIVE ASSY.

DRIVE ASSY, tachometer

1шт.

139013

TINE BAR

SPARE PART SCREW, 1/4-28 x 1/2 hex-soc set

1шт.

35

9982T

COCK

COCK, 1/4 drain

1шт.

36

324692R91

SPARE PART COOLER ASSY, oil

1шт.

37

263515R91

CLIP,ELECTRICAL

CLIP, header to cylinder head tube

1шт.

38

341111R2

ROD, CONNECTING

CONNECTOR, tachometer housing

1шт.

39

341108R11

GEAR WHEEL

GEAR ASSY, tachometer driven

1шт.

40

345427R1

SPARE PART HOUSING, tachometer drive, order drive assy, 341106R93, up to engine serial no. 21004

1шт.

40

341107R1

HOUSING

HOUSING, tachometer drive, engine serial no. 21005 above

1шт.

444684

PLUG

PLUG, 1/8-27 auto. sq-hd pipe

1шт.

41

347311R91

SEAL

SEAL, drive shaft oil, up to engine serial no. 21004

1шт.

42

62022R91

FITTING

SPARE PART FITTING, lubrication, up to engine serial no. 21004

1шт.

43

341109R11

SHAFT

SHAFT, tachometer drive

1шт.

44

312162R1

PLATE ASSY.

PLATE, tachometer thrust

1шт.

45

172557

PLUG

PLUG, 1-3/16 expansion

1шт.

46

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

O-RING, 5/16 x 7/16 x 1/16, tachometer housing connector, engine serial no. 21005 above

1шт.

Выбрано товаров: 73
