Запчасти Case IH 806 (D-13) - DIESEL ENGINE, CYLINDER HEAD AND RELATED PARTS (01) - ENGINE

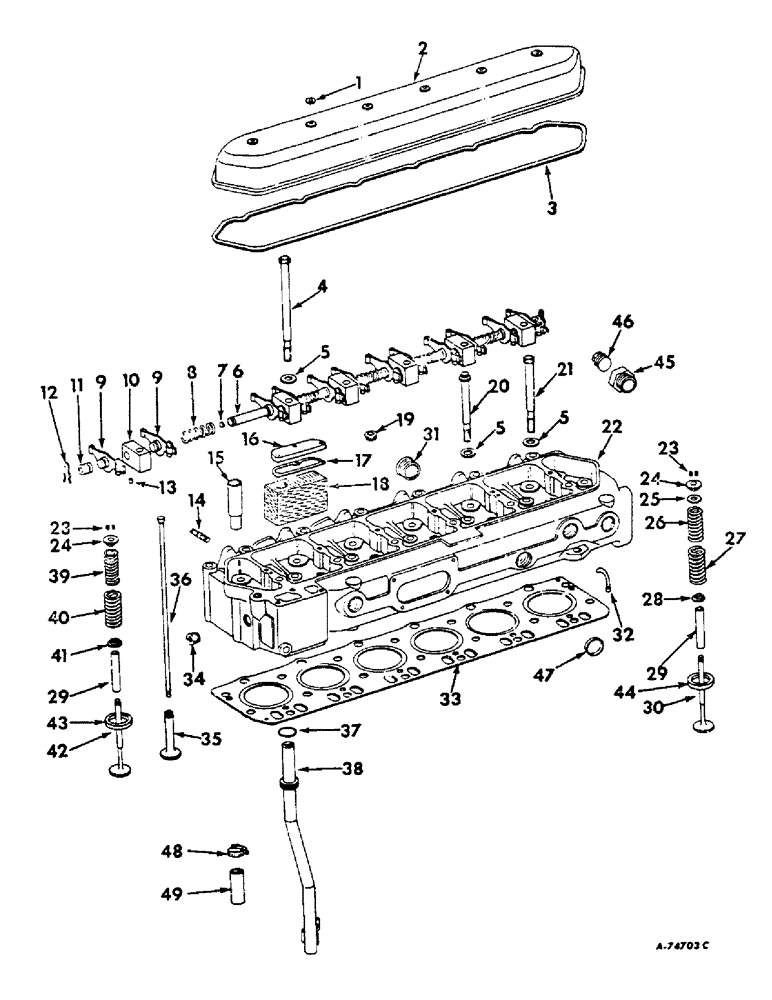

Схема запчастей Case IH 806 - (D-13) - DIESEL ENGINE, CYLINDER HEAD AND RELATED PARTS (01) - ENGINE
25
33
13
5
34
26
24
30
3
38
43
28
9
23
39
24
47
21
19
46
10
15
4
31
32
45
29
12
1
5
44
16
20
35
48
40
29
14
27
49
7
6
17
5
22
37
18
8
11
36
42
2
41
23
9

Артикул

Название

Примечание

Количество

1

934662R1

SEALING RING,10mm ID x 14mm OD x 1mm Thk

GASKET, valve cover bolt

6шт.

2

601390C2

COVER, valve

1шт.

17673R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 2

3/8-16 x 3-1/2 hex-hd

6шт.

3

328678R1

GASKET

valve cover

1шт.

4

601783C1

BOLT (SPREADER),Cyl Hd, 9/16" - 12 x 8"

BOLT, cylinder head, long

6шт.

5

326515R1

WASHER,15.88mm ID x 28.45mm OD x 4.83mm Thk

cylinder head bolt

26шт.

6

326509R11

SHAFT

w/two plugs, 109544R1, valve lever

1шт.

7

109544R1

PLUG

valve lever shaft

2шт.

8

16045D

SPRING, valve lever

5шт.

9

341074R92

ARM

W/NUT, 133093R1 and screw, 16067DA, rocker

2шт.

326838R3

BUSHING

valve lever

12шт.

10

326510R2

BRACKET

valve letter shaft

6шт.

11

16043D

VALVE SPRING

SPRING, front & rear rocker

2шт.

16051D

SPRING WASHER

rocker spring

2шт.

12

133927R1

RING, SNAP

2шт.

13

17244R1

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

2шт.

14

250450R1

STUD

manifold

12шт.

15

326503R1

SLEEVE CYLINDER

SLEEVE, injector

6шт.

16

345359R1

COVER, breather, tractor w/o lifting eye

1шт.

17

609402C1

GASKET

breather cover

1шт.

18

330397R2

FILTER, ELEMENT

ELEMENT, breather

1шт.

19

9409949

DRAIN PLUG

3/4 sq-soc pipe

6шт.

20

601781C1

BOLT (SPREADER),Cyl Hd, 9/16" - 12 x 5.25"

BOLT, cylinder head, short

7шт.

21

601782C1

BOLT (SPREADER),Cyl Hd, 9/16" - 12 x 5.88"

BOLT, cylinder head, med

13шт.

22

345149R31

HEAD ASSY, cylinder

1шт.

Composed of (12) guide 326505R3, (1) head 345149R2 (NSS), (1) plug 444588, (1) plug 444654, (1) plug 444678 (4) plug 601244C1, (5) plug 601093C1, (6) plug 9409949, (1) reducer 142765, (6) sleeve 326503R1, (12) stud 250450R1, (6) tube 326504R1

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

116103

COPPER WASHER,10.31mm ID x 20.63mm OD x 1.65mm Thk

WASHER, 3/8 copper

2шт.

23

32485D

KEY

LOCK, valve spirng retainer

24шт.

24

615324C1

RETAINER

valve spring

12шт.

25

(Not used)

1шт.

26

62264VA

VALVE SPRING

SPRING, intake valve inner

6шт.

27

62265VA

VALVE SPRING

SPRING, intake valve outer

6шт.

28

341284R1

SPACER

intake valve spring

6шт.

29

326505R3

GUIDE

valve (Replaces 3296505R3)

12шт.

30

343433R2

LOCK VALVE

VALVE, intake

6шт.

31

601244C1

PLUG

1-1/4 crsk-hdls pipe

4шт.

32

326504R1

TUBE

jet

6шт.

33

606073C1

GASKET

cylinder head

1шт.

34

444678

PLUG

1-11-1/2 automotive sq-soc pipe

1шт.

35

16040DD

TAPPET

valve

12шт.

36

343465R91

ROD

valve push

12шт.

37

350818R1

O-RING,0.984" ID x 0.139" Width

1 x 1-1/4 x 1/8, breather tube

1шт.

38

328957R11

BREATHER

TUBE ASSY, breather outlet

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

39

160907R1

SPRING

exhaust valve inner

6шт.

40

160908R1

SPRING

exhaust valve outer

6шт.

41

343734R91

CUP ASSY.

ROTO-COIL, exhaust valve

6шт.

42

341350R1

STD EXHAUST VALVE

VALVE, exhaust, optional with 612313C1

6шт.

42

612313C1

VALVE

exhaust, optional with 341350R1

6шт.

43

670301C1

INSERT

exhasut valve seat, std

6шт.

44

670305C1

INSERT, exhaust valve seat, .005 O/S

6шт.

45

670304C1

INSERT

exhaust valve seat, .015 O/S

6шт.

46

349022R1

INSERT

intake valve seat, std

6шт.

46

349023R1

SEAT

INSERT, intake valve seat, .005 O/S

6шт.

46

349024R1

SEAT

INSERT, intake valve seat, .010 O/S

6шт.

47

142765

PLUG

BUSHING, 1-1/4 x 1/2 reducing pipe

1шт.

48

444588

PLUG,Sq Hd, 1/2"-14 NPTF

1/2-14 automotive sq-hd pipe

1шт.

49

601093C1

PLUG,Cup, 1 1/2", Stainless

core hole

5шт.

50

274086R1

CLAMP, engine breather extension hose

1шт.

51

393767R1

HOSE, engine breather extension

1шт.

345412R91

PACKAGE, lifting eye front, consists of (1) lifting eye 345410R91 (1) bolt 179906, (3) bolt 179840, (1) washer 103324, (3) washer 103321

1шт.

330267R1

EYE, rear lifting

1шт.

179861

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 5

SCREW, 7/16-14 x 1-3/8 hex-hd cap

2шт.

496-21047

WASHER

15/32 x 59/64 x .051

2шт.

Выбрано товаров: 66
