Запчасти Case IH 806 (D-07) - DIESEL ENGINE, CRANKCASE FRONT COVER AND IDLER GEAR, ENGINE SERIAL NO. D361 23978 AND BELOW (01) - ENGINE

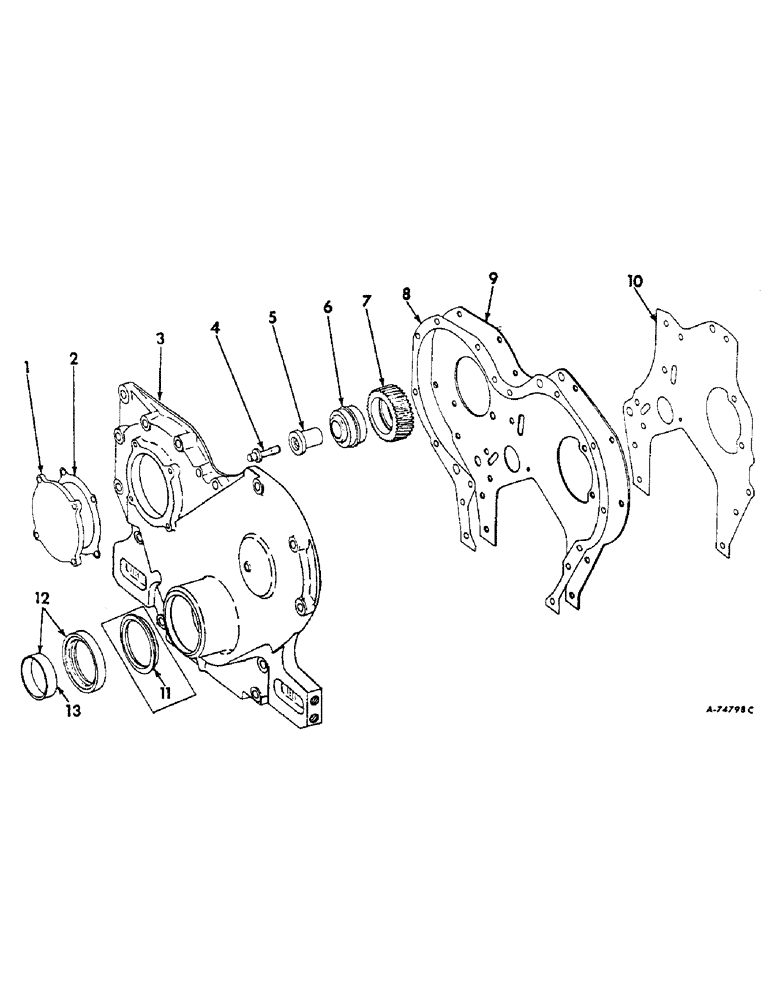

Схема запчастей Case IH 806 - (D-07) - DIESEL ENGINE, CRANKCASE FRONT COVER AND IDLER GEAR, ENGINE SERIAL NO. D361 23978 AND BELOW (01) - ENGINE
1
6
8
7
9
12
11
10
4
13
5
3
2

Артикул

Название

Примечание

Количество

1

326581R1

COVER, injection pump

1шт.

311979R1

SCREW

BOLT, cover

4шт.

2

326582R1

GASKET

injection pump cover

1шт.

3

349040R2

COVER, crankcase front

1шт.

103026

NUT,3/8"-24, G5

2шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 hex-hd cap

5шт.

181384

BOLT,Hex, 3/8" - 24 x 2 3/4"

SCREW, 3/8-24 x 2-3/4 hex-hd cap

2шт.

179888

LEVER

SCREW, 1/2-13 x 1-7/8 hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

4

328733R1

BOLT

BOLT, counterbore

1шт.

5

326583R2

SHAFT

idler gear

1шт.

601740C1

WASHER

SPACER, idler gear shaft

1шт.

6

327185R91

BEARING ASSY,31.75mm ID x 59.16mm OD x 36.75mm W

idler gear

1шт.

7

326612R1

PINION

GEAR, injection pump idler

1шт.

8

326580R1

GASKET

front cover

1шт.

9

328732R11

PLATE, w/two pins, 19841R1 and two nuts, 264723R1, crankcase front

1шт.

264723R1

NUT, spline

2шт.

19841R1

DOWEL,1/4" x 1/2"

PIN, 1/4 x 1/2 dowel

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

328735R1

GASKET

front plate

1шт.

11

116457H

DEFLECTOR

oil D361, Serial Range: 501-11200

1шт.

12

333750R91

SEAL

crankshaft front oil, up to engine serial no. 21596

1шт.

12

606780C91

PACKAGE

SEAL S/SLEEVE, 606779C1, crankshaft front oil, engine serial no. 21597 & above

1шт.

13

606779C1

SLEEVE

wear, engine serial no. 21597 & above

1шт.

Выбрано товаров: 25
