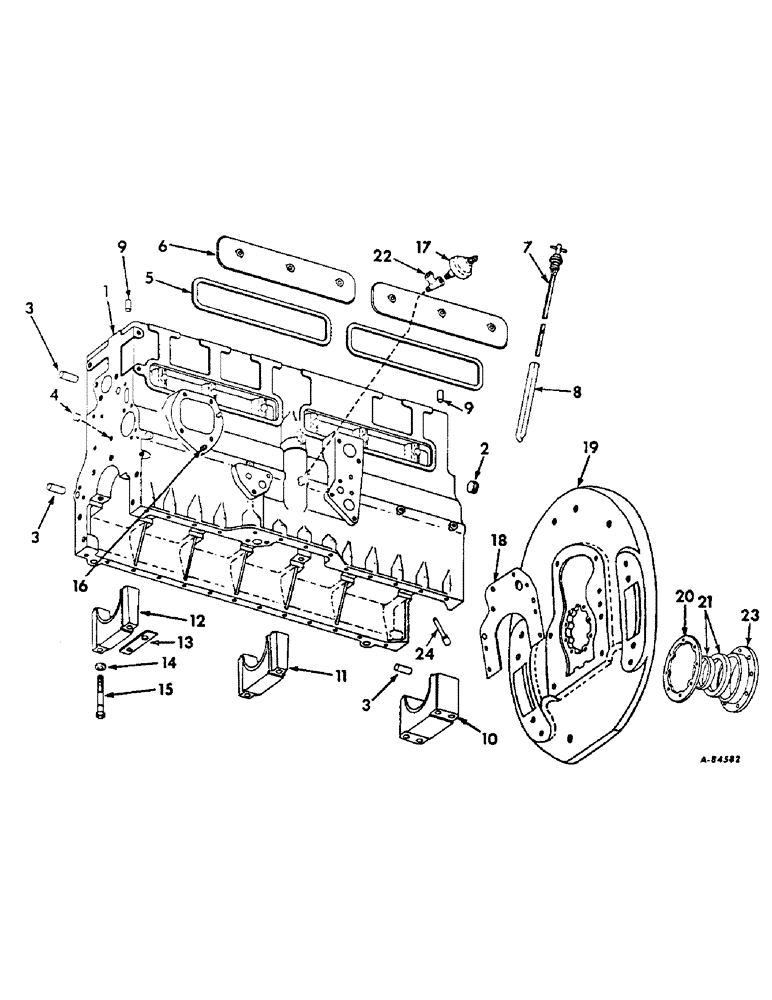

Запчасти Case IH 806 (D-05) - DIESEL ENGINE, CRANKCASE AND RELATED PARTS, ENGINE SERIAL NO. D-361 22699 AND ABOVE (01) - ENGINE

1

609355C95

CRANKCASE ASSY

1шт.

Composed of (12) bearing 7911T, (14) bolt 328729R1, (1) brace 332574R2, (1) bushing 70260R1, (1) bushing 77514R1, (1) bushing 332573R1, (1) bushing 332629R1, (1) cap 349048R1 (NSS), (5) cap 349050R1 (NSS), (1) cap 349049R1 (NSS) (1) crankcase 607294C1 (NSS), (4) pin 19838R1, (2) pin 19962R1, (2) pin 258917R1, (3) plug 445671, (2) plug 50410DA, (3) plug 444782, (6) plug 22263R1, (1) plug 444667, (1) plug 315365R1, (5) plug 347822R1, (6) sleeve 349093R1 (NSS), (13) washer 326515R1

1шт.

50410DA

PLUG

1/8 sq-soc-hd pipe

2шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 auto sq-hd pip

3шт.

444782

PLUG,Sq Soc, 3/8"-18 NPTF

3/8-18 auto sq-hd pipe

3шт.

444067

PLUG, 1/2-14 auto sq-hd pipe

1шт.

2

70128R1

PLUG,Cup, 1 5/8"

cup

6шт.

3

19838R1

DOWEL,15.88mm OD x 31.75mm L

PIN, 5/8 x 1-1/4 dowel

4шт.

4

315365R1

PLUG

metering

1шт.

5

328739R1

GASKET

push rod cover

2шт.

6

601812C1

COVER ASSY

COVER, push rod

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

302861R1

COPPER WASHER,8.33mm ID x 14.28mm OD x 1.58mm Thk

push rod cover

7шт.

7

607295C91

GAUGE ASSY.

GAGE ASSY, oil level

1шт.

8

607293C1

TUBE

oil filter

1шт.

9

258917R1

DOWEL

PIN, 3/8 x 3/4 roll

2шт.

10

NSS

NOT SOLD SEPARAT

CAP, crankshaft rear bearing, not serivced separately, order crankcase assy

1шт.

11

NSS

NOT SOLD SEPARAT

CAP, crankshaft intermediate bearing, not serviced separately, order crankcase assy

5шт.

12

NSS

NOT SOLD SEPARAT

CAP, crankshaft front bearing, not serviced separately, order crankcase assy

1шт.

13

332574R2

BRACKET

BRACE, oil pump outlet

1шт.

14

326515R1

WASHER,15.88mm ID x 28.45mm OD x 4.83mm Thk

bearing cap bolt

13шт.

15

328729R1

BOLT (SPREADER),9/16" - 12 x 4 1/2"

BOLT, bearing cap

14шт.

16

19962R1

DOWEL,3/8" x 3/4"

PIN, 3/8 x 3/4 dowel

2шт.

17

392249R92

SWITCH

oil pressure

1шт.

18

328846R1

GASKET

rear mounting plate

1шт.

19

332446R21

PLATE W/PIN, 45979D, crankcase rear mounting

1шт.

45979D

STUD

PIN, rear mounting plate dowel

1шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, 1/2-13 x 1-5/8 hex-hd cap

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

20

332303R1

SEAL

face plate

1шт.

21

609333C93

PACKAGE

SEAL W/SLEEVE, crankshaft rear oil

1шт.

22

16898R1

TEE,1/8" NPTF Fem Run x 7/16"-24 Male Br

1/8 union

1шт.

23

601743C1

RETAINER

rear oil seal

1шт.

214168R1

CAPSCREW,5/16" x 7/8", Gr 5

BOLT, 5/16-18 x 7/8 nylock

8шт.

24

343464R1

TUBE,0.049" ID, 1" OD, 2" Length

oil jet

6шт.

609332R93

PACKAGE, with one retainer, 601743C1 & one gasket, 332303R1, rear oil seal conversion

1шт.
