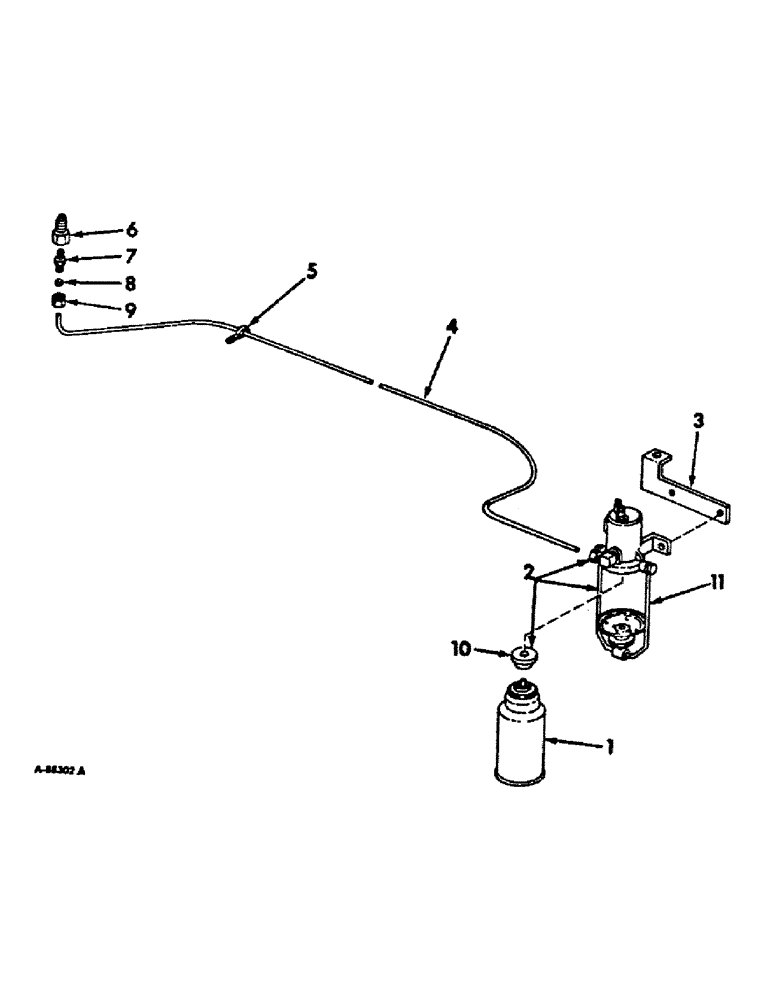

Запчасти Case IH 756 (E-5) - FUEL SYSTEM, ETHER STARTING, D-310 DIESEL ENGINE TRACTORS (02) - FUEL SYSTEM

1

385064R91

FLUID

ether starting, 12 ounce can

1шт.

2

393719R92

NOZZLE

SOLENOID ASSY, ether starting, includes ref nos 11 and 12

1шт.

19803R1

BOLT,Hex, 1/4" - 20 x 7/8", Gr 2

1/4-20 x 7/8 C-Z hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

396506R1

BRACKET, solenoid mounting

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

4

396507R1

TUBE

starting fluid

1шт.

362667R1

CLIP

ether starting fluid pipe

1шт.

5

366460R1

CABLE CLIP

CLIP, starting fluid tube

2шт.

6

269635R91

NOZZLE CAP

NOZZLE ASSY, ether starting fluid

1шт.

7

140284

PIPE FITTING

CONNECTOR, tube

1шт.

8

121322

SLEEVE,Ball Type, 1/8" tube

tube connector

1шт.

9

121220

TUBE NUT

NUT, tube connector

1шт.

10

395686R1

GASKET

ether starting injector

1шт.

11

404247R1

BAIL

ASSY, injector

1шт.
